| Estimated Delivery | Add | |||
|---|---|---|---|---|
| 60199039 | ESYBOX MAX 60/120 M220-240 PUMP | 60199039 | ESYBOX MAX 60/120 M220-240 PUMP | — |
£2,632.00
Save £1,296.00 (32% off)
|
|
| 60199035 | ESYBOX MAX 60/120 T380-480 PUMP | 60199035 | ESYBOX MAX 60/120 T380-480 PUMP | — |
£2,862.00
Save £1,409.00 (32% off)
|
|
| 60195100 | ESYBOX MAX 85/120 T380-480 PUMP | 60195100 | ESYBOX MAX 85/120 T380-480 PUMP | — |
£3,308.00
Save £1,629.00 (32% off)
|
|
| 60195200 | ESYDOCK MAX GAS SINGLE PUMP DOCK | 60195200 | ESYDOCK MAX GAS SINGLE PUMP DOCK | — |
£255.00
Save £126.00 (33% off)
|
|
| 60198332 | 2 ESYDOCK MAX GAS TWIN PUMP DOCK | 60198332 | 2 ESYDOCK MAX GAS TWIN PUMP DOCK | — |
£548.00
Save £270.00 (33% off)
|
|
| 60198333 | 3 ESYDOCK MAX GAS TRIPLE PUMP DOCK | 60198333 | 3 ESYDOCK MAX GAS TRIPLE PUMP DOCK | — |
£734.00
Save £362.00 (33% off)
|
|
| 60201595 | CONTROL PANEL E2G5,2 M 230V (3+N T) 16A W/CABLES FOR TWIN PUMP SINGLE PHASE PUMPSET | 60201595 | CONTROL PANEL E2G5,2 M 230V (3+N T) 16A W/CABLES FOR TWIN PUMP SINGLE PHASE PUMPSET | — |
£137.00
Save £68.00 (33% off)
|
|
| 60201596 | CONTROL PANEL E2G7 T 400V 10A W/CABLES FOR TWIN PUMP THREE PHASE PUMPSET | 60201596 | CONTROL PANEL E2G7 T 400V 10A W/CABLES FOR TWIN PUMP THREE PHASE PUMPSET | — |
£161.00
Save £79.00 (32% off)
|
|
| 60201597 | CONTROL PANEL E3G10.5 T 400V 10A W/CABLES MAXI FOR TRIPLE PUMP THREE PHASE PUMPSET | 60201597 | CONTROL PANEL E3G10.5 T 400V 10A W/CABLES MAXI FOR TRIPLE PUMP THREE PHASE PUMPSET | — |
£229.00
Save £113.00 (33% off)
|
|
| 60200914 | ESY I/O | 60200914 | ESY I/O | — |
£510.00
Save £251.00 (32% off)
|
|

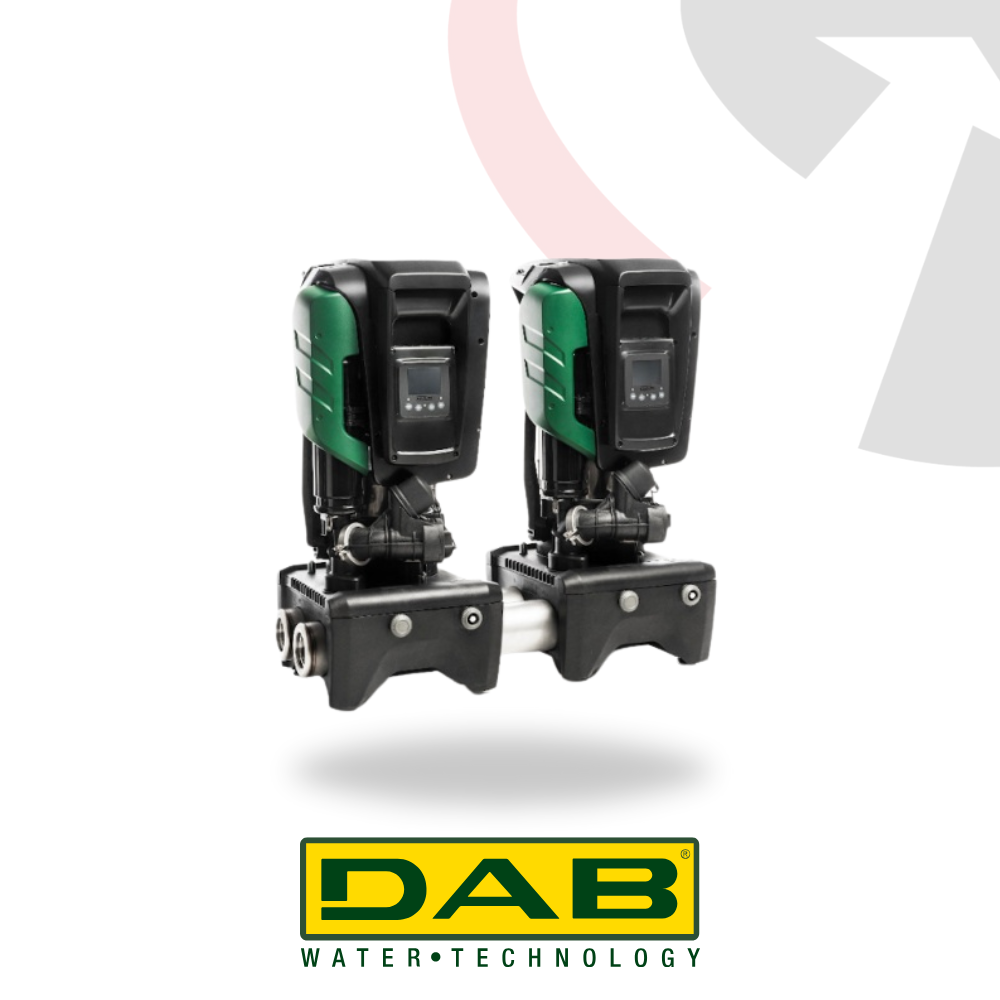

| 60187188 | 2 ESYBOX MAX 60/120 M 220-240 V TWIN PUMP SET | 60187188 | 2 ESYBOX MAX 60/120 M 220-240 V TWIN PUMP SET | — |
£6,583.00
Save £3,242.00 (32% off)
|
|
| 60187189 | 2 ESYBOX MAX 60/120 T 400 V TWIN PUMP SET | 60187189 | 2 ESYBOX MAX 60/120 T 400 V TWIN PUMP SET | — |
£7,064.00
Save £3,480.00 (33% off)
|
|
| 60187190 | 2 ESYBOX MAX 85/120 T 400 V TWIN PUMP SET | 60187190 | 2 ESYBOX MAX 85/120 T 400 V TWIN PUMP SET | — |
£7,957.00
Save £3,919.00 (32% off)
|
|

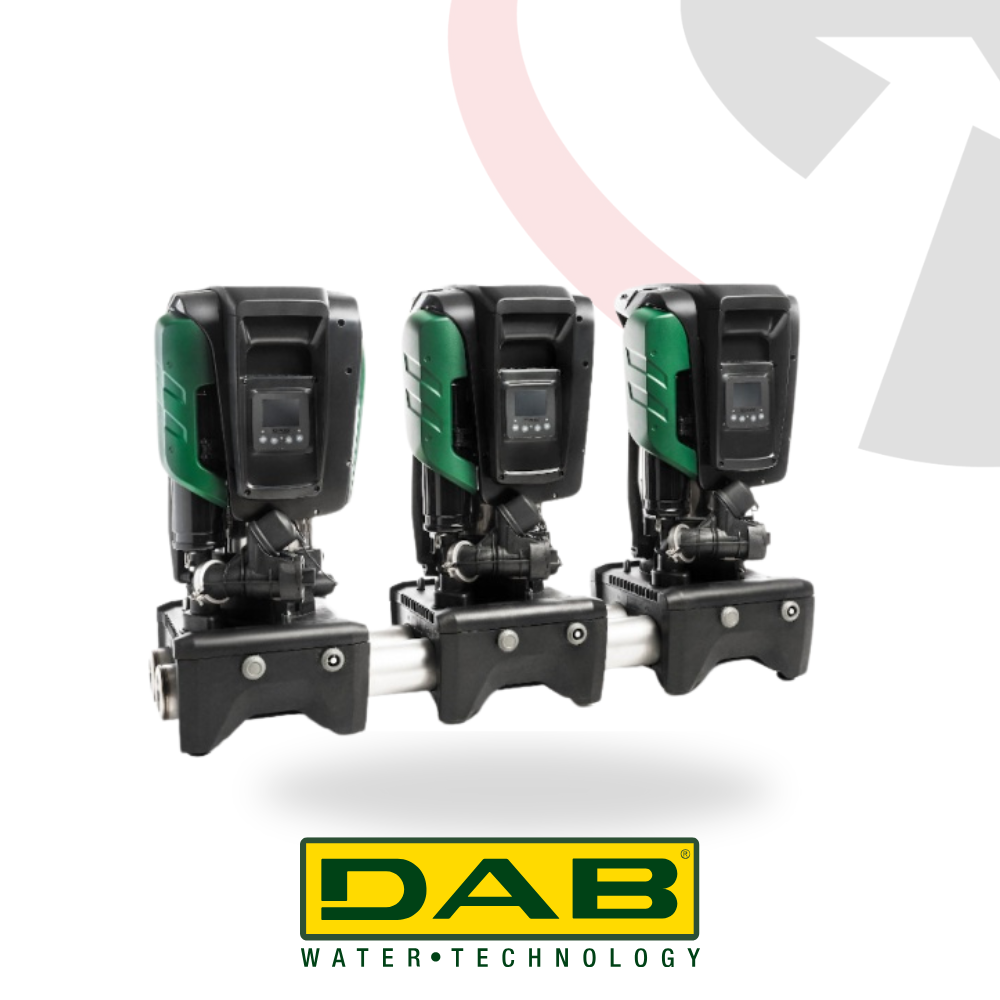

| 60187191 | 3 ESYBOX MAX 60/120 T 400 V TRIPLE PUMP SET | 60187191 | 3 ESYBOX MAX 60/120 T 400 V TRIPLE PUMP SET | — |
£10,181.00
Save £5,015.00 (33% off)
|
|
| 60187192 | 3 ESYBOX MAX 85/120 T 400 V TRIPLE PUMP SET | 60187192 | 3 ESYBOX MAX 85/120 T 400 V TRIPLE PUMP SET | — |
£11,520.00
Save £5,674.00 (32% off)
|
Performance

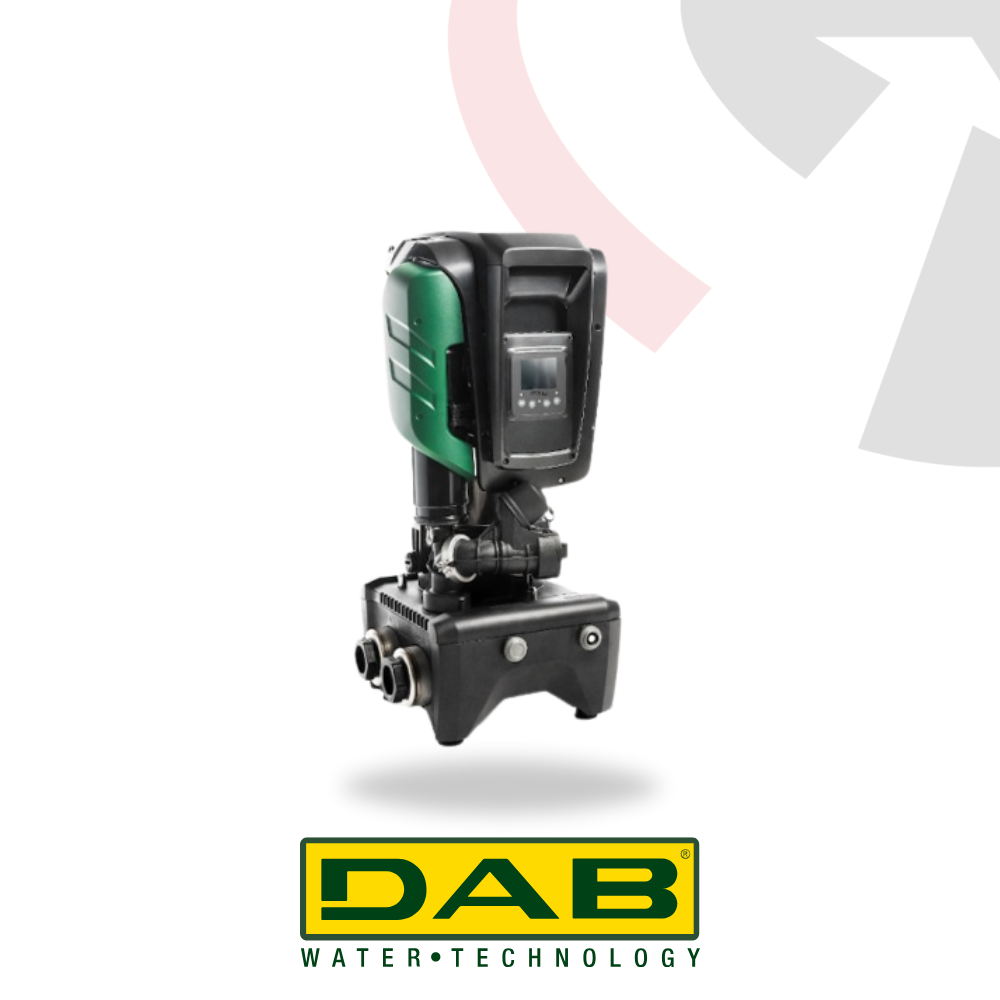

The DAB E.SYBOX Max is a modular, electronic booster system designed to provide constant water pressure for residential, commercial and industrial applications. Each pump delivers flows up to 17.4 m³/h and heads up to 113 metres, with scalable configurations from a single unit to a four pump booster set.
Overview
- Flow per pump: up to 17.4 m³/h (76 gpm)
- Head: up to 113 m (370 ft)
- Configurations: single, twin, triple or quad pump systems
- Integrated variable frequency drive with Wi-Fi, display and pressure sensors
- Built in non return valve and expansion tank
- Water cooled permanent magnet motor for quiet operation (below 45 dB) and high efficiency
- Potable water certified: ACS, NSF 61 and NSF 372
Applications
- Commercial buildings: offices, hospitals, hotels and public buildings
- High rise residential: apartments, student accommodation and multi storey housing
- Industrial processes: washdown, cooling water and process supply
- Agriculture and irrigation: smart farming and large scale irrigation systems
Design and Control
- Technopolymer impellers with jacketed steel housing
- Water cooled permanent magnet motor with stainless steel shaft, IPX5 protection and class F insulation
- Integrated VFD for constant pressure control, automatic duty rotation and energy savings of around 20 percent
- DConnect and DSync connectivity for remote monitoring, maintenance and BMS integration
- EsyDock base for quick on site assembly and modular system build up
- Optional esy I/O module for float switches, alarms and external control signals
Technical Specifications
- Pump diameter: 185 mm
- Maximum inlet pressure: 5 bar
- Maximum working pressure: 12 bar
- Liquid temperature: up to 40°C
- Ambient temperature: up to 45°C
- Voltage options: 230 V, 50–60 Hz (single phase) or 380 - 480 V (three phase)
- Protection rating: motor IPX5
- Insulation class: F
