| Model | Price | Add |
|---|---|---|
| F4-32/160B | 2103170 | £1,192.00 | |
| F4-32/160A | 2103180 | £1,208.00 | |
| F4-32/200B | 2103190 | £1,701.00 | |
| F4-32/200A | 2103200 | £1,744.00 | |
| F4-32/200BH | 2103210 | £1,701.00 | |
| F4-32/200AH | 2103220 | £1,662.00 | |
| F4-32/250C | 2103230 | £2,385.00 | |
| F4-32/250B | 2103240 | £2,476.00 | |
| F4-32/250A | 2103250 | £2,480.00 | |
| F4-40/160B | 2103260 | £1,204.00 | |
| F4-40/160A | 2103270 | £1,240.00 | |
| F4-40/200B | 2103280 | £1,680.00 | |
| F4-40/200A | 2103290 | £1,713.00 | |
| F4-40/250C | 2103300 | £2,463.00 | |
| F4-40/250B | 2103310 | £2,534.00 | |
| F4-40/250A | 2103320 | £2,632.00 | |
| F4-50/125B | 2103330 | £1,244.00 | |
| F4-50/125A | 2103340 | £1,244.00 | |
| F4-50/160B | 2103350 | £1,676.00 | |
| F4-50/160A | 2103360 | £1,719.00 | |
| F4-50/200C | 2103370 | £2,453.00 | |
| F4-50/200B | 2103380 | £2,551.00 | |
| F4-50/200A | 2103390 | £2,551.00 | |
| F4-50/200AR | 2103400 | £2,544.00 | |
| F4-50/250D | 2103410 | £2,482.00 | |
| F4-50/250C | 2103420 | £2,524.00 | |
| F4-50/250B | 2103430 | £2,623.00 | |
| F4-50/250A | 2103440 | £2,623.00 | |
| F4-50/250AR | 2103450 | £2,544.00 | |
| F4-65/125B | 2103460 | £1,948.00 | |
| F4-65/125A | 2103470 | £1,985.00 | |
| F4-65/160C | 2103480 | £2,228.00 | |
| F4-65/160B | 2103490 | £2,260.00 | |
| F4-65/160A | 2103500 | £2,344.00 | |
| F4-65/200A | 2103510 | £2,519.00 | |
| F4-65/200AR | 2103520 | £2,434.00 | |
| F4-65/250B | 2103530 | £4,044.00 | |
| F4-65/250A | 2103540 | £4,200.00 | |
| F4-80/160D | 2103550 | £2,385.00 | |
| F4-80/160C | 2103560 | £2,460.00 | |
| F4-80/160B | 2103570 | £2,460.00 | |
| F4-80/160A | 2103580 | £2,508.00 | |
| F4-80/200B | 2103590 | £4,127.00 | |
| F4-80/200A | 2103600 | £4,239.00 | |
| F4-80/250B | 2103610 | £4,780.00 | |
| F4-80/250A | 2103620 | £4,731.00 | |
| F4-100/160B-N | 2103630 | £2,827.00 | |
| F4-100/160A-N | 2103640 | £2,922.00 | |
| F4-100/200C | 2103650 | £3,888.00 | |
| F4-100/200B | 2103660 | £4,008.00 | |
| F4-100/200A | 2103670 | £4,008.00 |

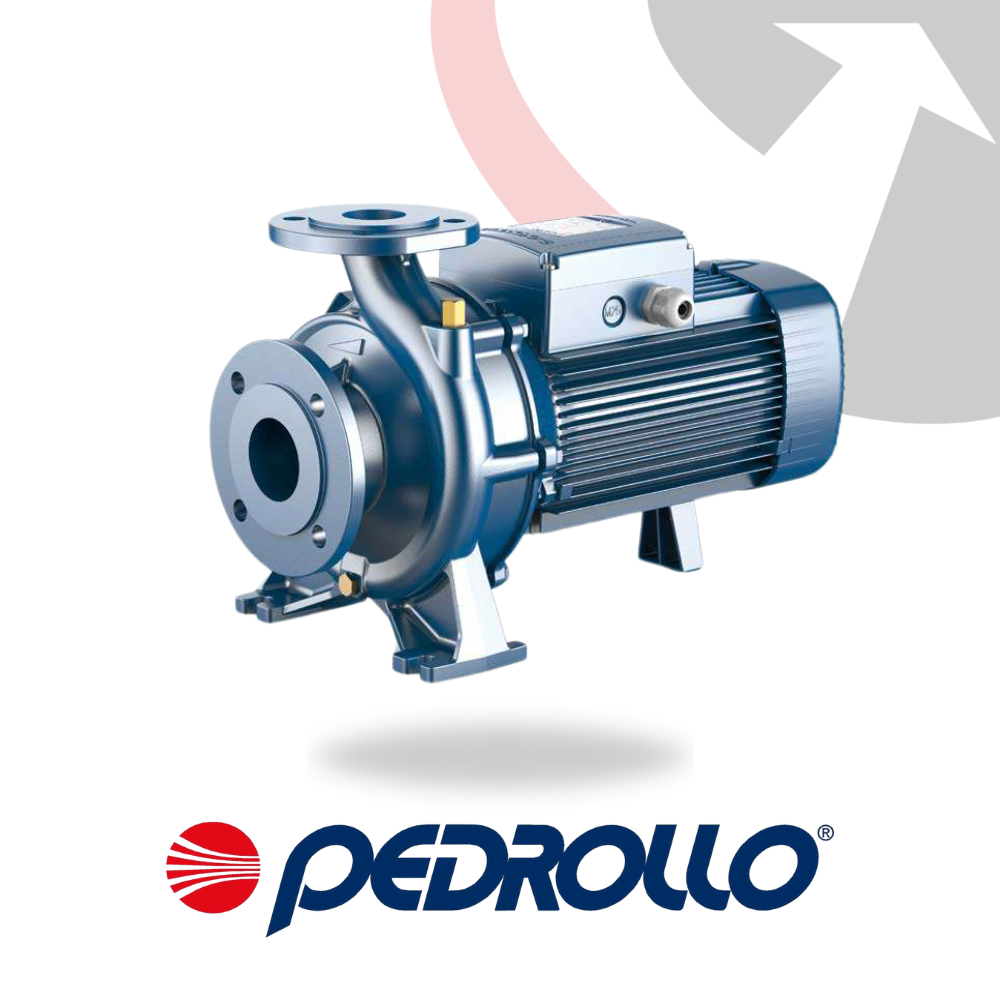

Pedrollo F4 Close-Coupled Centrifugal Pump
High-Capacity Pump for Clean Water in Industrial and Agricultural Systems
Performance
The Pedrollo F4 close-coupled centrifugal pump delivers robust performance, with flow rates up to 2900 l/min (174 m³/h) and heads up to 23.8 m. It operates with a 4-pole motor at 1450 RPM, offering power from 0.37 to 9.2 kW for efficient water transfer across diverse systems.
Applications
Ideal for clean water free from abrasive particles, the F4 suits a wide range of UK applications, including:
- Water supply and distribution
- Pressurisation systems
- Irrigation and agricultural use
- Air conditioning and cooling water circulation
- Power washing systems
- Firefighting systems
- General industrial water transfer
Construction
Built to EN 733 standards, the F4 pump features a durable cast iron housing, with an impeller made from either cast iron or brass, depending on the model:
Brass impellers apply to models: F4 32/160-200, F4 40/160-200, F4 50/125-160.
The shaft is made from AISI 431 stainless steel, ensuring long-term corrosion resistance. Three-phase models include IE3 efficiency motors compatible with inverters, and single-phase models meet IE2 standards. All motors include IP55 protection and Class F insulation.
Key Specifications:
- Flow rate: up to 2900 l/min (174 m³/h)
- Head: up to 23.8 m
- Power range: 0.37 to 9.2 kW
- Manometric suction head: up to 7 m
- Liquid temperature: -10 °C to +90 °C
- Ambient temperature: -10 °C to +40 °C
- Max pressure: 10 bar (PN10)
- Motor speed: 1450 RPM (4-pole)
- Protection class: IP55
