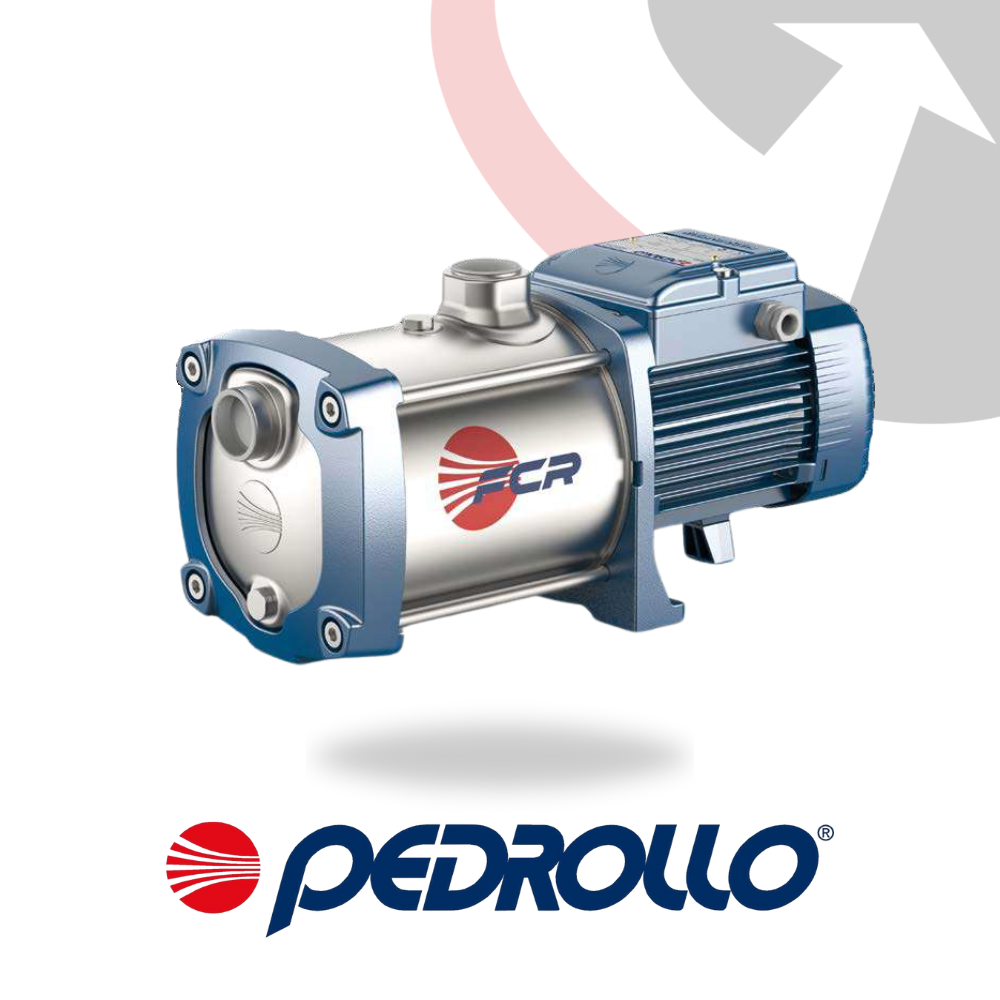

Pedrollo FCR Multi-Stage Centrifugal Pump

High-Pressure Stainless Steel Pump for Industrial and Civil Water Systems

Performance
The Pedrollo FCR is a horizontal multi-stage centrifugal pump engineered for high-efficiency water delivery. With flow rates up to 800 l/min (48 m³/h) and heads reaching 120 m, it delivers powerful performance while maintaining quiet, stable operation. Its energy-efficient design ensures low consumption for both commercial and industrial installations.

Applications
Built for clean water handling, the FCR is ideal for:

• Water supply and pressurisation systems
• Distribution systems using autoclaves
• Irrigation in agricultural environments
• Industrial water transfer and circulation

Construction
All hydraulic components are made from AISI 304 stainless steel for corrosion resistance and hygienic water handling. The shaft is constructed from AISI 431 stainless steel for added strength. This multi-stage configuration delivers smooth, quiet performance with reduced mechanical stress.

Three-phase models include IE3 efficiency electric motors compatible with inverter control, and are equipped with Class F insulation and IP55 ingress protection, ensuring durability under continuous duty (S1).

Key Specifications:

• Flow rate: up to 800 l/min (48 m³/h)
• Head: up to 120 m
• Suction lift: up to 7 m
• Max working pressure: 12 bar
• Liquid temperature: -15 °C to +90 °C
• Ambient temperature: up to +40 °C
• Motor: 2-pole, three-phase, inverter compatible
• Protection rating: IP55
