Calpeda Pumps

SKU:GQS 50-15 CG | 70T91260002

Delivery Time: 2-3 Weeks Lead Time

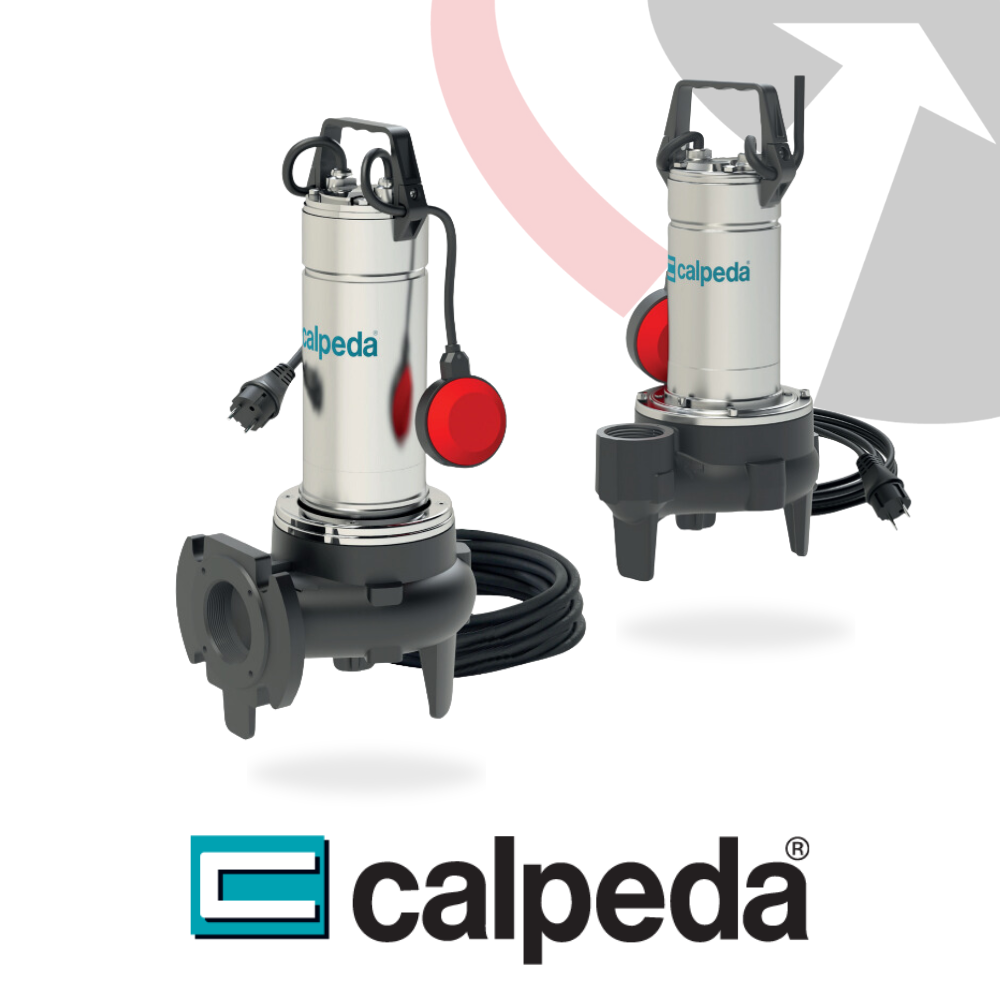

Calpeda GQS | GQSM Submersible Pumps:

Compact submersible vortex pumps for wastewater and dirty water with solids up to 40 mm

Flow: 3 to 36 m³/h
Head: 1.8 to 15 m
Power: 0.55 to 2 kW

Performance
The Calpeda GQS and GQSM series are compact submersible pumps equipped with a vortex (free-flow) impeller, ideal for handling dirty water and wastewater containing solids up to 40 mm. Designed for domestic and light industrial use, they offer reliable performance in drainage, flood control, and rainwater systems. A double mechanical shaft seal with an oil chamber provides robust protection against dry running.

Applications
Suitable for:

• Domestic and civil wastewater handling
• Dirty water containing solids up to 40 mm
• Drainage of tanks, pits, and flooded areas
• Rainwater collection and transfer from ponds or streams

Construction

• GQS: Threaded vertical outlet (G 1½″ or G 2″)
• GQSM: Single-phase version with float switch and thermal protection
• Cast iron casing and vortex impeller
• Chrome-nickel stainless steel motor jacket, casing cover, and shaft
• Polypropylene handle with stainless steel reinforcement
• Double mechanical shaft seal with oil chamber (GQS 40 uses single seal)

Operating Conditions
Liquid temperature: Up to 35 °C
pH range: 6 to 11
Maximum immersion depth: 5 m
Minimum immersion depth:
• 200 mm (GQS 40)
• 275 mm (GQS 50)
Continuous duty (submerged operation)

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
GQS: Three-phase 230/400 V ±10%
GQSM: Single-phase 230 V ±10% with float switch and thermal protector
10 m H07RN-F cable included (single-phase supplied with CEI-UNEL 47166 plug)
Insulation class F, protection rating IP X8
Dry winding with moisture-resistant impregnation
