Ebara
SKU:1582032304 | IDROGO40/08WRAS
IDROGO | Borehole Pumps
IDROGO | Borehole Pumps
IDROGO
Couldn't load pickup availability

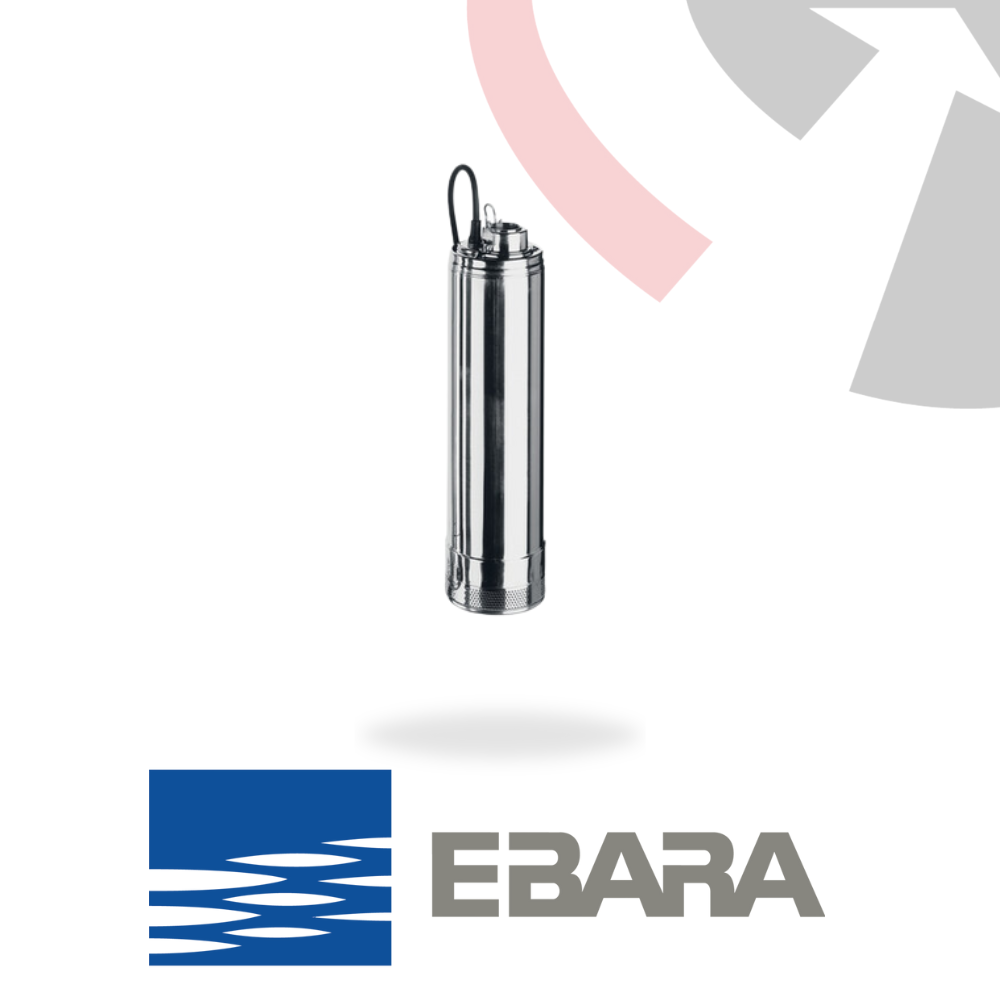

Ebara IDROGO Submersible Borehole Pump - Stainless Steel
Performance
The Ebara IDROGO 5" submersible borehole pump delivers flow rates from 1.2 to 7.2 m³/h and total heads from 10 to 76 m. Its multistage design ensures silent, efficient water extraction and pressurisation for versatile UK applications.
Applications
Designed for UK domestic, civil, and industrial use, the IDROGO is ideal for handling clear water from wells, cisterns, and collection tanks. It suits pressurisation of domestic systems, small-scale irrigation, vehicle washing, and general pressure boosting.
Construction
Featuring a stainless steel AISI 304 outer casing, the IDROGO offers corrosion-resistant, practical construction with PPE+PS glass fibre-reinforced impellers. It includes a stainless steel shaft and a double mechanical seal (Carbon/Ceramic on the motor side, Silicon Carbide/Carbon on the pump side) in an oil chamber, suitable for vertical or horizontal operation.
Key Specifications:
- Flow rate: from 1.2 to 7.2 m³/h
- Total head: from 10 m to 76 m
- Max. working pressure: 10 bar
- Max. temperature of the liquid: +40°C
- Poles: 2
- Insulation class: F
- Protection degree: IP68
- Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
- Impeller: PPE+PS with glass fibres
- Shaft: Stainless steel AISI 431 (EN 1.4057)
- Mechanical seal: Carbon/Ceramic/NBR (motor side), Silicon Carbide/Carbon/NBR (pump side)
- Outer casing: Stainless steel AISI 304 (EN 1.4301)
Delivery
Order the Ebara IDROGO submersible borehole pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
