| Model | Price | Add |
|---|---|---|
| 1650050004I | JE/I100 | £494.00 | |
| 1650060004I | JE/I120 | £625.00 | |
| 1650070004I | JE/I150 | £736.00 | |
| 1650040004I | JE80 | £420.00 | |
| 1650060000E | JEM/E120 | £562.00 | |
| 1650070000E | JEM/E150 | £628.00 | |
| 1650050000E | JEM100 | £472.00 | |
| 1650040000e | JEM80 | £428.00 | |
| 1700050004I | JES5 | £399.00 | |
| 1700060004I | JES6 | £411.00 | |
| 1700080004I | JES8 | £428.00 | |
| 1700060001E | JESM/E6 | £411.00 | |
| 1700080000E | JESM/E8 | £428.00 |

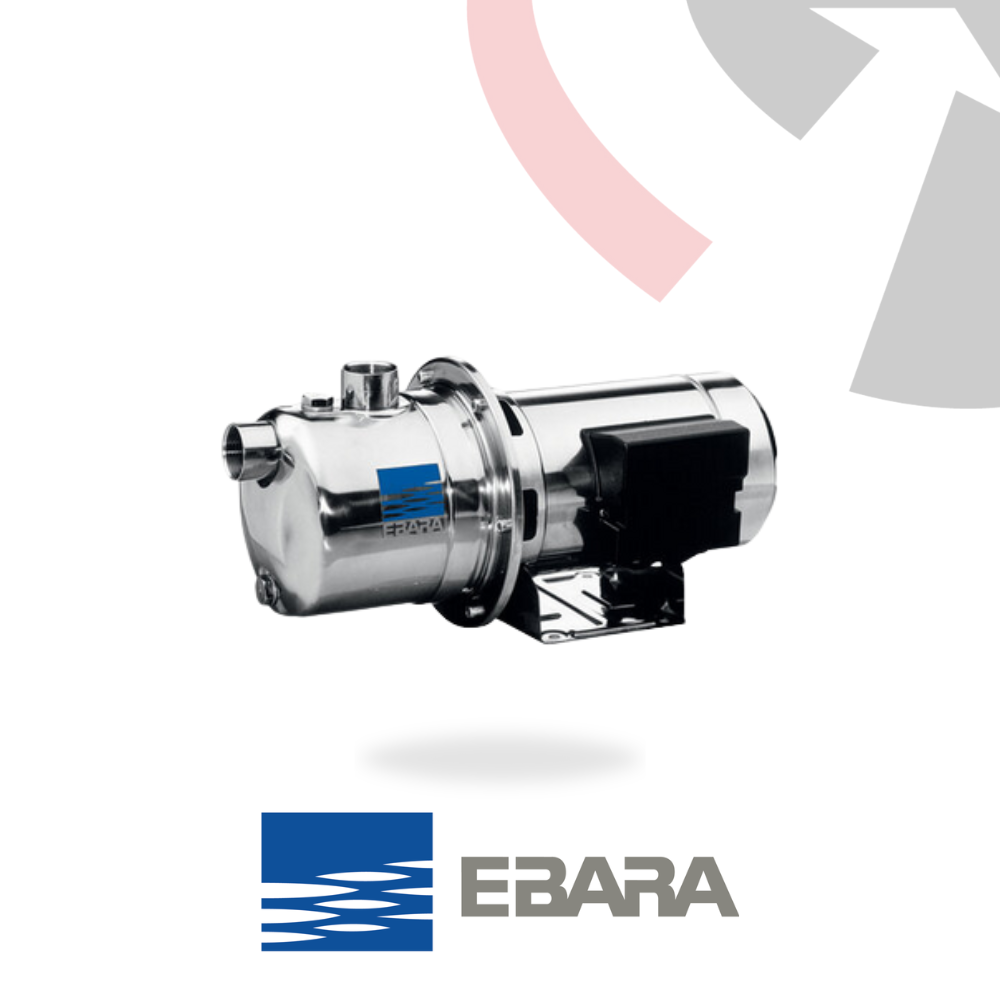

Ebara JES - JE Self-Priming Centrifugal Pump - Stainless Steel
Performance
The Ebara JES - JE self-priming centrifugal pump delivers flow rates from 0.3 to 4.5 m³/h and total heads from 11.5 to 49 m. Its Venturi unit enables suction up to 8 m, providing efficient water transfer for residential and light-duty UK applications.
Applications
Designed for UK domestic and agricultural use, the JES - JE is ideal for domestic pressurisation, garden irrigation, and vehicle washing. It suits pressure boosting and clean water handling in residential and small-scale civil settings.
Construction
Featuring a pump body in AISI 304 stainless steel, the JES - JE is lightweight and easy to transport. The JE model has a stainless-steel impeller, while the JES uses PPO reinforced with glass fibres. It includes a stainless-steel shaft and a Ceramic/Carbon/NBR mechanical seal with an AISI 304 motor support.
Key Specifications:
- Flow rate: from 0.3 to 4.5 m³/h
- Total head: from 11.5 to 49 m
- Max. Working pressure: 6 bar
- Max. Temperature of the liquid: 45°C
- Max. suction depth: 8 m
- Poles: 2
- Insulation class: F
- Protection degree: IP44 (IP55 on request)
- Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
- Pump body: Stainless steel AISI 304 (EN 1.4301)
- Impeller: Stainless steel AISI 304 (EN 1.4301) for JE, PPO reinforced with glass fibres for JES
- Shaft: Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
- Mechanical seal: Ceramic/Carbon/NBR (standard)
- Motor support: Stainless steel AISI 304 (EN 1.4301)
Delivery
Order the Ebara JES - JE self-priming centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
