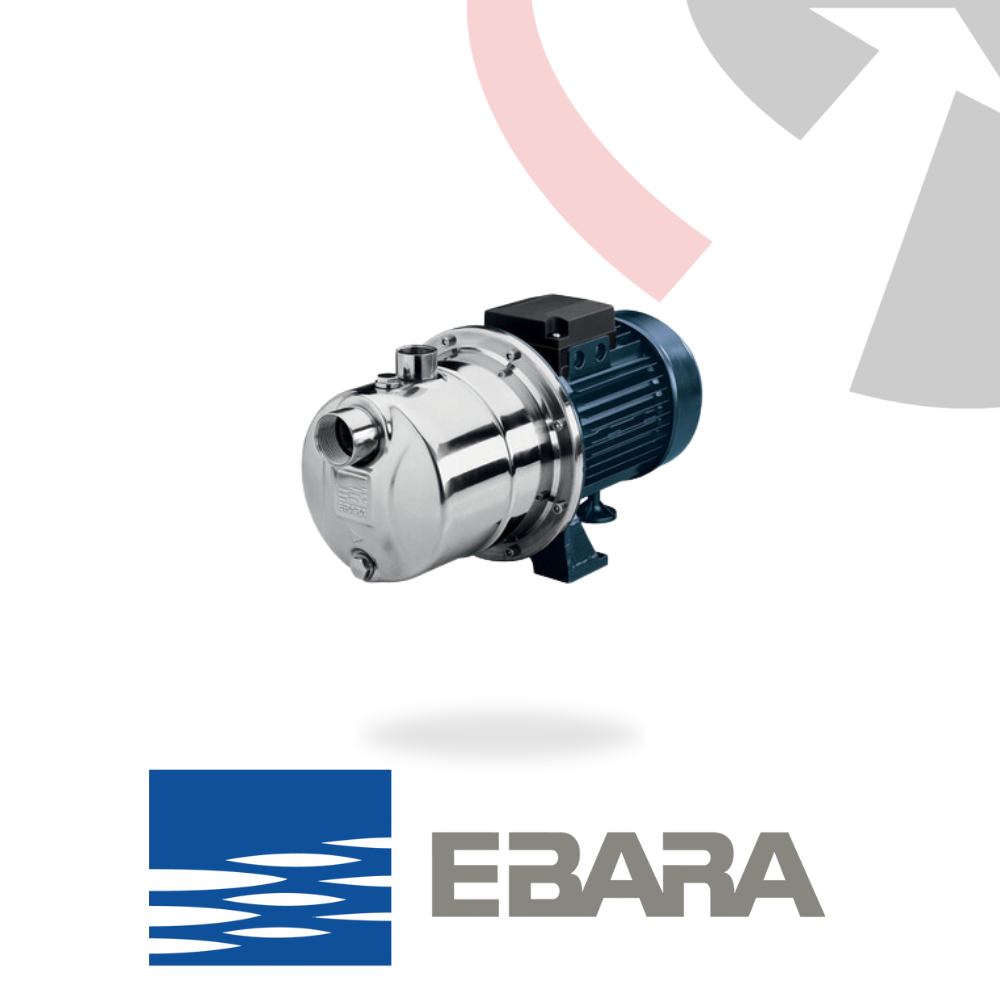

Ebara JESX - JEX Self-Priming Centrifugal Pump - Stainless Steel
Performance
The Ebara JESX - JEX self-priming centrifugal pump delivers flow rates from 0.3 to 4.5 m³/h and total heads from 11.5 to 49 m. Its self-priming design with an 8 m suction depth ensures efficient water transfer for domestic and light-duty UK applications.
Applications
Designed for UK domestic and agricultural use, the JESX-JEX is ideal for drinking water supply, domestic pressurisation, and garden irrigation systems. It suits emptying tanks and swimming pools, as well as handling clean water in residential settings.
Construction
Featuring a pump body in AISI 304 stainless steel, the JESX-JEX is lightweight and easy to transport. The JEX model has a stainless-steel impeller, while the JESX uses PPE+PS with glass fibres. It includes a stainless-steel shaft, a Ceramic/Carbon/NBR mechanical seal, and an aluminium motor support.
Key Specifications:
- Flow rate: from 0.3 to 4.5 m³/h
- Total head: from 11.5 to 49 m
- Max. Working pressure: 6 bar
- Max. Temperature of the liquid: 45°C
- Max. suction depth: 8 m
- Poles: 2
- Insulation class: F
- Protection degree: IP54 (IP55 on request)
- Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
- Pump body: Stainless steel AISI 304 (EN 1.4301)
- Impeller: Stainless steel AISI 304 (EN 1.4301) for JEX, PPE+PS with glass fibres for JESX
- Shaft: Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
- Mechanical seal: Ceramic/Carbon/NBR (standard)
- Motor support: Aluminium
Delivery
Order the Ebara JESX - JEX self-priming centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
