| Model | Price | Add |
|---|---|---|
| JCRm 1A | 2109830 | 102972360 EUROINOX 40/80 M-P Fitted | £526.00 | |
| JCR 1A | 2109900 | 102972340 EUROINOX 30/80 M-P Fitted | £505.00 | |
| JCRm 2C | 2109840 | 102972280 EUROINOX 40/50 M-P Fitted | £472.00 | |
| JCR 2C | 2109910 | 102972260 EUROINOX 30/50 M-P Fitted | £420.00 | |
| JCRm 2B | 2109850 | 102642100 JETINOX 132 M-P Fitted | £390.00 | |
| JCR 2B | 2109920 | 102642040 JETINOX 102 M-P Fitted | £318.00 | |
| JCRm 2A | 2109860 | 102642020 JETINOX 82 M-P Fitted | £290.00 | |
| JCR 2A | 2109930 | 102162082 JET 251 M-P Fitted | £626.00 | |
| JCRm 2CL | 2109870 | 102162062 JET 151 M-P Fitted | £583.00 | |
| JCR 2CL | 2109940 | 102162192 JET 300 M-P Fitted | £586.00 | |
| 102162182 | JET 200 M-P Fitted | £519.00 | |
| 102662100 | JET 132 M-P Fitted | £329.00 | |
| 102662040 | JET 102 M-P Fitted | £288.00 | |
| 102662020 | JET 82 M-P Fitted | £244.00 | |
| 102662000 | JET 62 M-P Fitted | £240.00 |

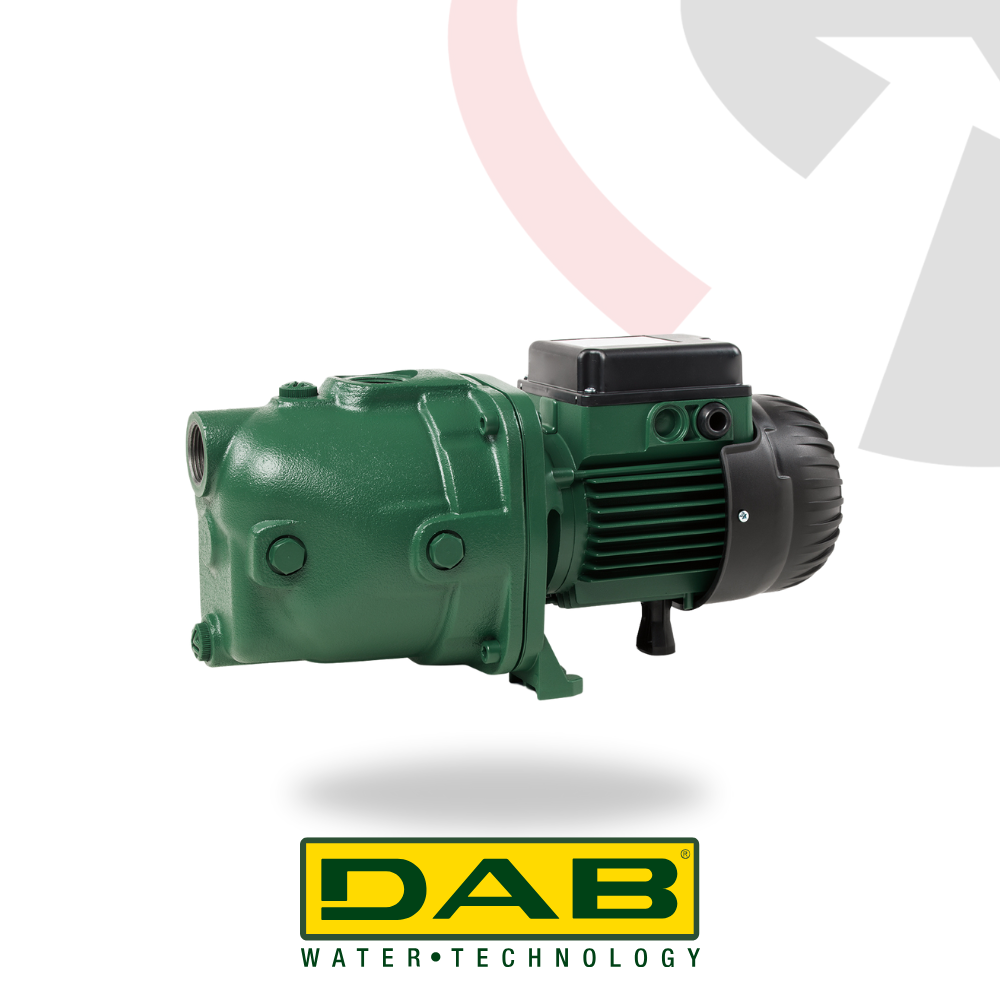

DAB JET / JETINOX / EUROINOX MP Self-Priming Pumps
Reliable Pressure Boosting for Domestic and Small-Scale Commercial Water Systems
Performance
The DAB JET, JETINOX, and EUROINOX MP models are robust self-priming centrifugal pumps, ideal for domestic water supply, small farms, and light industrial use. With excellent suction capacity even in the presence of air they are well-suited for systems requiring reliable pressure boosting with minimal maintenance.
Applications
- Domestic water supply and boosting
- Small-scale irrigation and gardening
- Water transfer in small agricultural or industrial setups
- Systems requiring self-priming operation with some air in the line
Construction
JET models feature a cast iron pump body, while JETINOX and EUROINOX models are made of stainless steel for superior corrosion resistance. All versions include:
- Technopolymer impeller, diffuser, and venturi system
- Carbon/ceramic mechanical seal
- Die-cast aluminium motor support
- Stainless steel wear ring for longevity
Each pump comes ready to connect to a pressure tank with a brass three-way fitting, pressure switch, and gauge. Single-phase models include a plug and capacitor with built-in protection. Three-phase models require external overload protection.
Motor
Air-cooled asynchronous motor with permanently lubricated ball bearings. Complies with CEI 2-3 and EN 60335-2-41 standards. Designed for quiet operation and long life.
Key Specifications
- Flow rate: 0.4 to 10.5 m³/h
- Head: up to 62 metres
- Maximum operating pressure: 8 bar
- Liquid temperature: 0°C to +35°C (domestic), up to +40°C (general)
- Ambient temperature: up to +40°C
- Motor insulation class: F
- Motor protection class: IP44 (IP55 at terminal)
- Voltage: Single-phase 220–240 V / Three-phase 230–400 V (50 Hz)
- Installation: Fixed, horizontal only
Delivery
Order your DAB JET, JETINOX, or EUROINOX MP pump from pumpsandgearboxesdirect.com with Free UK Mainland Delivery.
