| Model | Price | Add |
|---|---|---|
| JSWm 3CH | 2110080 | £663.00 | |
| JSW 3CH | 2110180 | £684.00 | |
| JSWm 3BH | 2110090 | £677.00 | |
| JSW 3BH | 2110190 | £696.00 | |
| JSWm 3AH | 2110100 | £752.00 | |
| JSW 3AH | 2110200 | £741.00 | |
| JSWm 3CM | 2110110 | £663.00 | |
| JSW 3CM | 2110210 | £684.00 | |
| JSWm 3BM | 2110120 | £677.00 | |
| JSW 3BM | 2110220 | £696.00 | |
| JSWm 3AM | 2110130 | £752.00 | |
| JSW 3AM | 2110230 | £741.00 | |
| JSWm 3CL | 2110140 | £663.00 | |
| JSW 3CL | 2110240 | £684.00 | |
| JSWm 3BL | 2110150 | £685.00 | |
| JSW 3BL | 2110250 | £696.00 | |
| JSWm 3AL | 2110160 | £752.00 | |
| JSW 3AL | 2110260 | £741.00 |

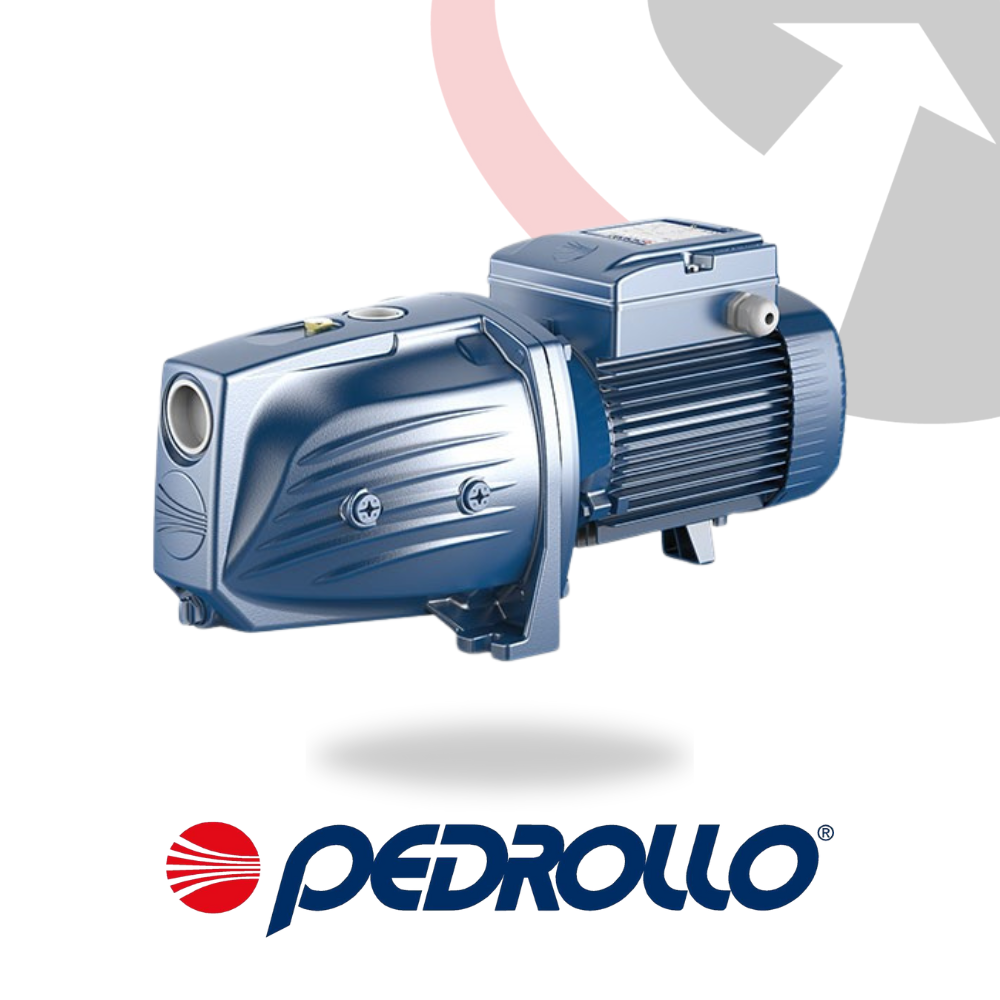

Pedrollo JSW 3 Self-Priming Jet Pump
Performance
The Pedrollo JSW 3 self-priming jet pump delivers powerful performance, with flow rates up to 160 l/min (9.6 m³/h) and heads up to 97 m. Its robust design handles demanding water transfer tasks with ease.
Applications
Designed for clean water, the JSW 3 is ideal for UK domestic and civil use, excelling in water distribution with pressure tanks and irrigation. It is also suited for light industrial applications requiring higher flow and head.
Construction
Built with a cast iron body featuring cataphoretic treatment and a stainless steel AISI 304 impeller, the JSW 3 offers durability and corrosion resistance. Three-phase models include IE3 efficiency motors, while single-phase versions feature IE2 efficiency with IPX4 protection.
Key Specifications:
- Flow rate: Up to 160 l/min (9.6 m³/h)
- Head: Up to 97 m
- Suction head: Up to 9 m
- Max pressure: 10 bar
- Liquid temperature: -10 °C to +40 °C
Delivery
Order the Pedrollo JSW 3 from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
