| Model | Price | Add |
|---|---|---|
| 105210134 | DKLM 80-300 T | £1,893.00 | |
| 105210114 | DKLM 65-600 T | £1,872.00 | |
| 105210094 | DKLM 65-300 T | £1,872.00 | |
| 105210474 | DKLP 50-1200 M | £2,022.00 | |
| 105210464 | DKLP 50-900 M | £2,022.00 | |
| 105210074 | DKLM 50-600 T | £1,835.00 | |
| 105210454 | DKLM 50-600 M | £1,988.00 | |
| 105210054 | DKLM 50-300 T | £1,835.00 | |
| 105210444 | DKLM 50-300 M | £1,988.00 | |
| 105210234 | DKLP 40-1200 T | £1,286.00 | |
| 105210434 | DKLP 40-1200 M | £1,416.00 | |
| 105210224 | DKLP 40-900 T | £1,248.00 | |
| 105210424 | DKLP 40-900 M | £1,370.00 | |
| 105210214 | DKLP 40-600 T | £1,248.00 | |
| 105210414 | DKLP 40-600 M | £1,370.00 | |
| 105210014 | DKLM 40-300 T | £1,243.00 | |
| 105210404 | DKLM 40-300 M | £1,359.00 | |
| 105110134 | KLM 80-300 T | £1,061.00 | |
| 105110114 | KLM 65-600 T | £1,068.00 | |
| 105110094 | KLM 65-300 T | £1,063.00 | |
| 105110474 | KLP 50-1200 M | £1,114.00 | |
| 105110464 | KLP 50-900 M | £1,117.00 | |
| 105110074 | KLM 50-600 T | £921.00 | |
| 105110454 | KLM 50-600 M | £1,128.00 | |
| 105110054 | KLM 50-300 T | £893.00 | |
| 105110444 | KLM 50-300 M | £926.00 | |
| 105110234 | KLP 40-1200 T | £727.00 | |
| 105110434 | KLP 40-1200 M | £799.00 | |
| 105110224 | KLP 40-900 T | £690.00 | |
| 105110424 | KLP 40-900 M | £799.00 | |
| 105110214 | KLP 40-600 T | £690.00 | |
| 105110414 | KLP 40-600 M | £771.00 | |
| 105110014 | KLM 40-300 T | £746.00 | |
| 105110404 | KLM 40-300 M | £771.00 |
No matching variants found.
Performance

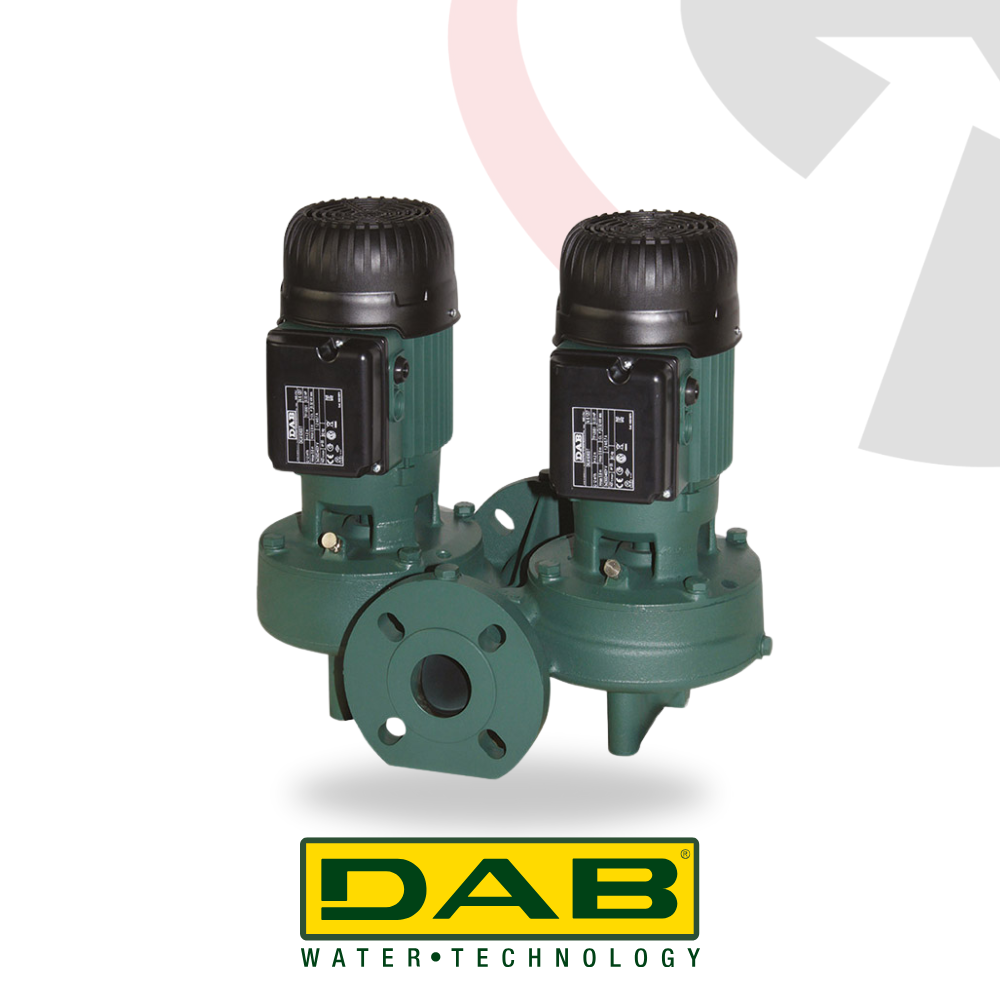

Twin head flanged inline circulator pump designed for circulating hot water in closed and pressurised systems or in open tank central heating and air conditioning installations. Suitable for continuous duty in domestic and commercial heating loops.
Motor
Closed asynchronous motor cooled by external ventilation. Single phase versions include a built in thermal current protection device with permanently connected capacitor. For three phase models, a magnetic starter with overload and under voltage protection is recommended to meet current electrical standards.
Technical Features
- Protection rating: IP55
- Insulation class: F
- Manufactured to: CEI 2-3 standard
- Liquid temperature range: −15°C to +120°C
- Pumped liquid: Clean, non abrasive, non aggressive, non viscous, chemically neutral and similar to water
- Maximum operating pressure: 10 bar (1000 kPa)
