KLME | DKLME | KLPE |DKLPE | Inline DAB Pumps

DKLP / DKLME Pump Description:

Product Description:

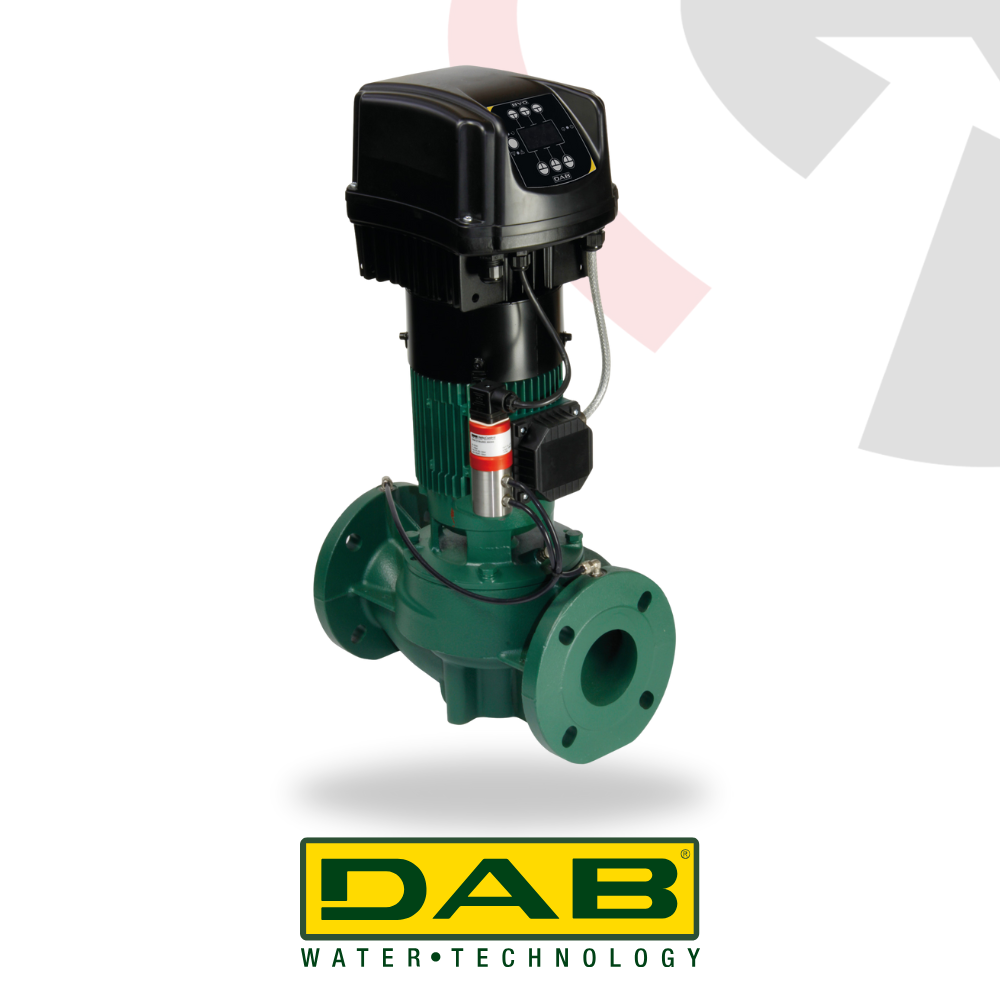

Introducing the DKLME Pump

Applications:

• In-line pumps designed for:
• Conditioning and heating systems
• Water recirculation in the presence of solar thermal panels (solar collectors)
• Circulation of drinkable hot water in residential building service and commercial building service.
• All the pumps are ACS-certified.

Construction Features of the Pump:

• Flanged suction and delivery ports (PN 10) with threaded holes for control pressure gauges.
• Compatible with PN 16 counter-flanges for replacing pumps in existing systems.
• Pump body and motor support in cast iron.
• The twin versions are equipped with a swing valve incorporated in the delivery port to avoid the recirculation of water in the not working unit.
• Technopolymer impeller, silicon carbide/silicon carbide seal.

Construction Features of the Motor:

• Four-pole air-cooled asynchronous motor for DKLME / DKLP
• Motor shaft in AISI 306 stainless steel mounted on ball bearings.
• Single-phase version with capacitor and built-in thermo-amperometric protection.

The user is responsible for the protection of the three-phase version.

Key Features:
