DAB Pumps

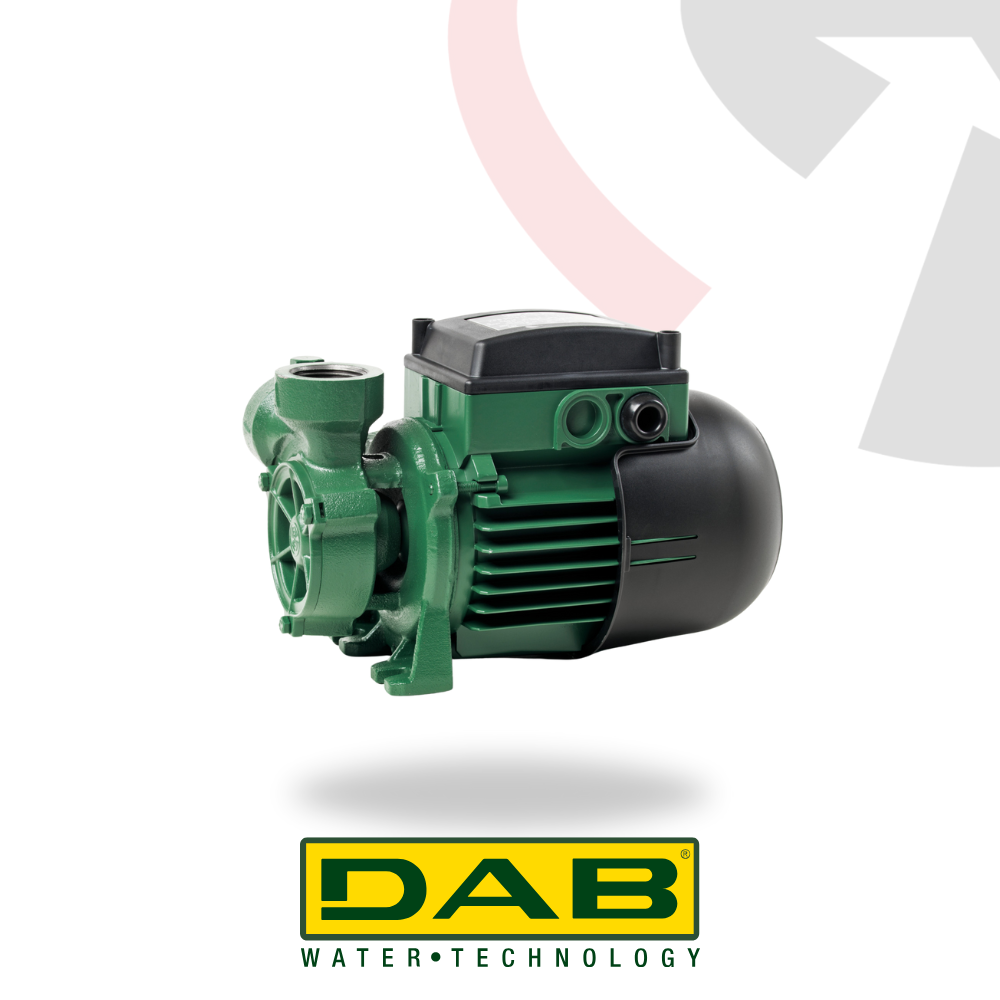

SKU:101113034 | KPS 30/16 MB-P Bronze Body
KPS | KPF Centrifugal DAB Pumps
KPS | KPF Centrifugal DAB Pumps
Regular price
£345.00
Regular price
£514.00
Sale price
£345.00
Unit price
/
per
Price excludes VAT + (Free UK Delivery)
Couldn't load pickup availability
Delivery Time: 4-6 Weeks
DAB KP | KPF | KPS Peripheral Centrifugal Pumps
The DAB KP, KPF, and KPS series are compact peripheral centrifugal pumps capable of generating high heads, making them ideal for domestic water supply, gardening, and light industrial applications. Their robust construction and performance make them suitable for a wide range of installations, including cistern filling, small boiler feed, and general water transfer.
Applications
- Domestic installations and water supply systems
- Small gardening and irrigation applications
- Filling and draining cisterns or tanks
- Light industrial use e.g., pressurised boiler feeding (anti-condensation)
Construction Features
- KPF: Cast iron body with front suction
- KPS: Radial suction with optional bronze body (KPS 30/16)
- KP: Brass body for KP 60/6 and KP 60/12
- Brass impeller and wear-resistant components
- Carbon/ceramic mechanical seal
Motor
- Closed asynchronous motor with external ventilation
- Permanently lubricated ball bearings for durability
- Built-in thermal protection on single-phase versions
- Protection class: IP44 (IP55 on selected models)
- Insulation class: F
Technical Specifications
- Flow rate: 5 to 50 litres per minute
- Head: up to 84 metres
- Liquid temperature: 0°C to +35°C (domestic), -10°C to +50°C (other uses)
- Ambient temperature: max +40°C
- Operating pressure: max 10 bar (6 bar for KPF/KPS 30/16)
- Installation: Fixed, horizontal
Order from Pumps and Gearboxes Direct and get free UK mainland delivery on all DAB KP, KPF, and KPS centrifugal pumps.
