Ebara

SKU:2471020000 | MATRIX/E10-2T/0,75M

MATRIX

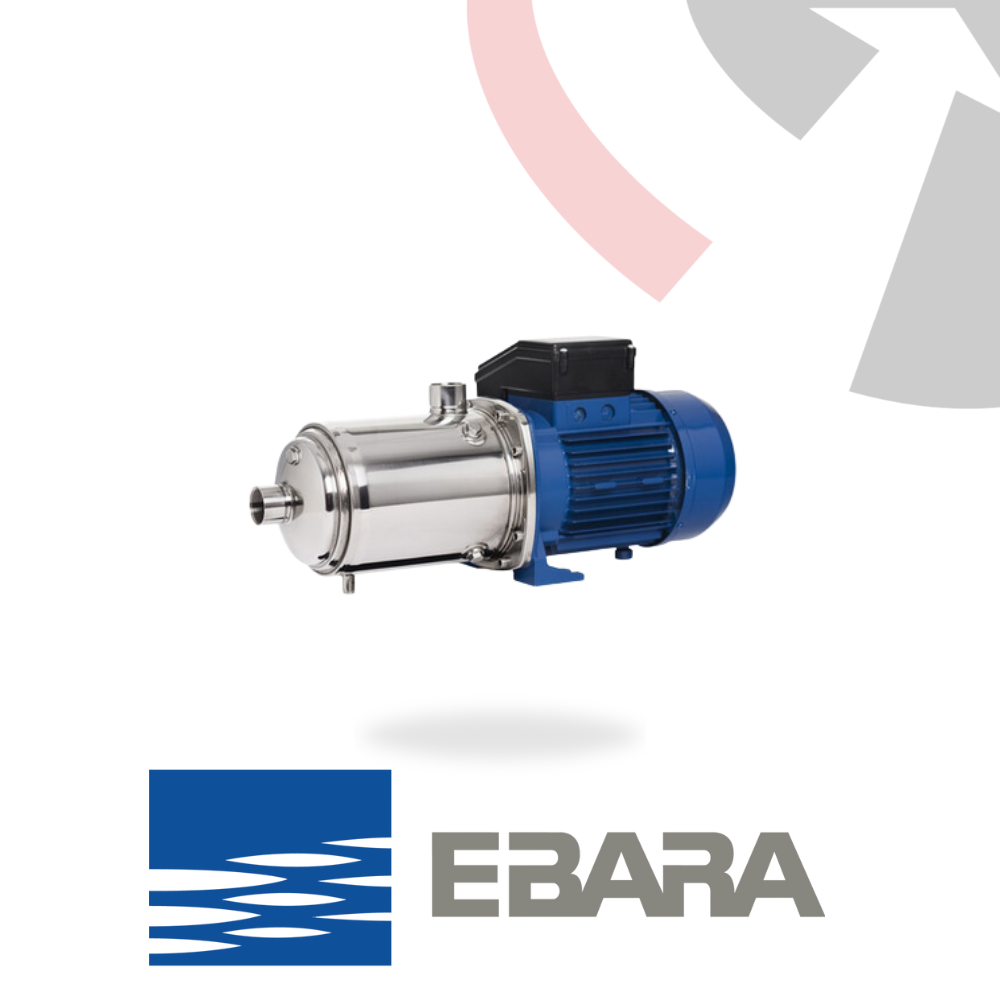

Ebara MATRIX Multistage Centrifugal Pump - Stainless Steel

Performance
The Ebara MATRIX multistage horizontal centrifugal pump delivers flow rates up to 27 m³/h and total heads up to 97 m. Its AISI 304 stainless steel construction ensures efficient, silent performance for water pressurisation and distribution in UK systems.

Applications
Designed for UK domestic and industrial use, the MATRIX is ideal for pressure boosters, water distribution, and treatment systems. It suits heating, air conditioning, cooling, irrigation, rainwater harvesting, and industrial washing applications, including drinking water supply.

Construction
Featuring a pump body and impellers in AISI 304 stainless steel, the MATRIX offers sturdy, compact construction suitable for drinking water. It includes a stainless-steel shaft and multiple mechanical seal options, with a precision-cast aluminium motor support for durability.

Key Specifications:

• Flow rate: up to 27 m³/h
• Total head: up to 97 m
• Max. working pressure: 10 bar
• Max. temperature of the liquid: -15°C ÷ +85°C for std, -15°C ÷ +75°C for H, HS versions, -15°C ÷ +90°C for TE version for high temperatures
• Poles: 2
• Insulation class: F
• Protection degree: IP55
• Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
• Pump body: Stainless steel AISI 304 (EN 1.4301)
• Impeller: Stainless steel AISI 304 (EN 1.4301)
• Shaft: Stainless steel AISI 304 (EN 1.4301)
• Mechanical seal: Ceramic/Carbon/EPDM (standard), H = Graphite/Ceramic/FPM, HS = Silicon Carbide/Silicon Carbide/FPM
• Motor gang: EN AB-AISi11Cu2(Fe) (precision-cast aluminium)

Delivery
Order the Ebara MATRIX multistage centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
