Ebara
SKU:1220960006 | MD/I32-250/11
MD | EN 733 Standardised Pumps
MD | EN 733 Standardised Pumps
MD - MMD(4)
Couldn't load pickup availability

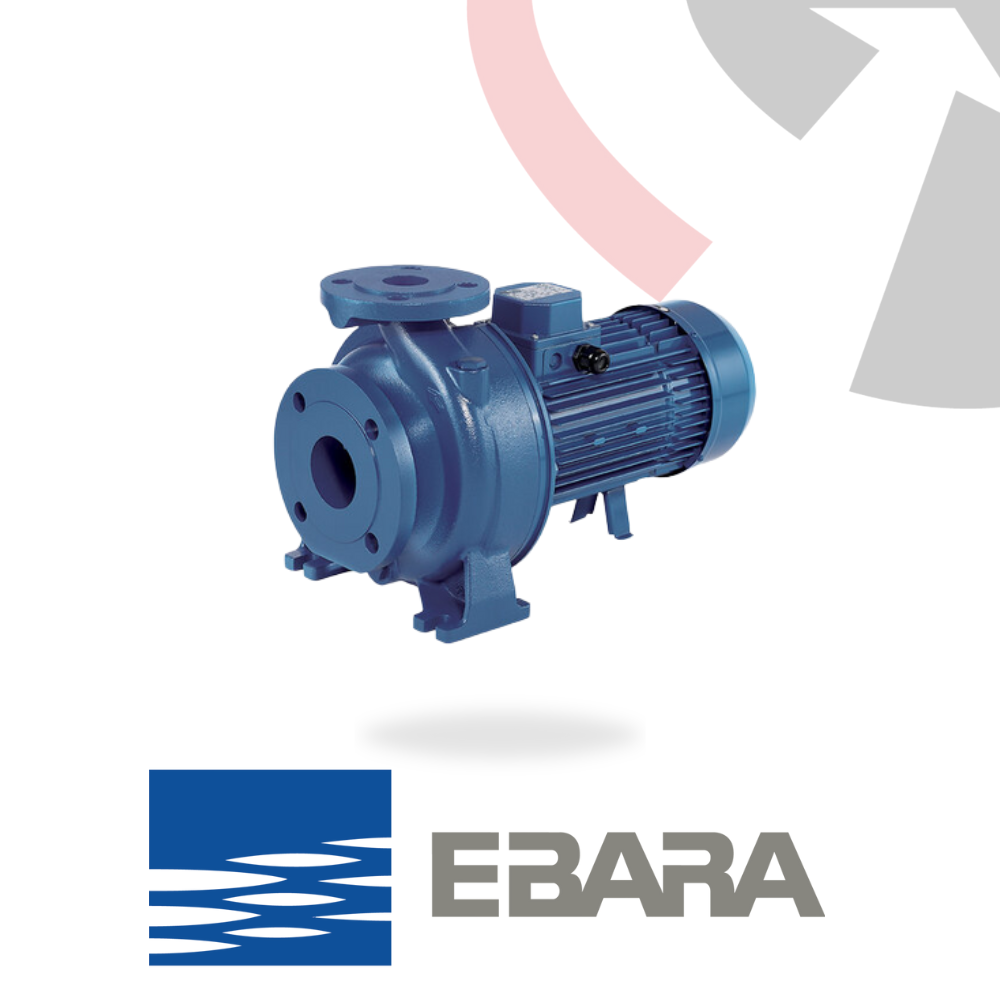

Ebara MD Monobloc Centrifugal Pump - Cast Iron
Performance
The Ebara MD monobloc centrifugal pump, compliant with EN 733, delivers flow rates up to 600 m³/h and total heads up to 92.7 m. Its high-efficiency 2 or 4-pole motor ensures reliable performance for water supply and liquid handling across UK applications.
Applications
Designed for UK domestic, civil, and industrial use, the MD is ideal for heating, ventilation, and air-conditioning systems, as well as water supply for farms and industrial plants. It suits pressurisation, firefighting, irrigation, and washing systems.
Construction
Featuring a cast iron pump body and an AISI 304 stainless steel impeller, the MD offers sturdy construction and corrosion resistance. Its back pull-out design allows motor removal without disconnecting pipes, with a stainless-steel shaft and multiple mechanical seal options, supported by a cast iron motor housing.
Key Specifications:
- Flow rate: up to 600 m³/h
- Total head: up to 92,7 m
- Max. working pressure: 10 bar
- Max. temperature of the liquid: -5°C ÷ +75°C for H, HS, HW, HSW versions, -5°C ÷ +90°C for standard and E versions
- MEI: > 0.4
- Poles: 2 and 4
- Insulation class: F (B for high temperature)
- Protection degree: IP55
- Voltage: Three-phase 3230/400V ±10% (up to 4 kW included), Three-phase 3400/690V +10% (from 5.5kW and above)
- Pump body: Cast iron
- Impeller: AISI 304 (EN 1.4301) for MD
- Shaft: Stainless steel AISI 304 (EN 1.4401) for MD
- Mechanical seal: MD = Ceramic/Carbon/NBR, H = Graphite/Ceramic/FPM, HS = Silicon Carbide/Silicon Carbide/FPM, HW = Tungsten Carbide/Tungsten Carbide/FPM, HSW = Silicon Carbide/Tungsten Carbide/FPM, E = Graphite/Ceramic/EPDM
- Motor support: Cast iron
Delivery
Order the Ebara MD monobloc centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
