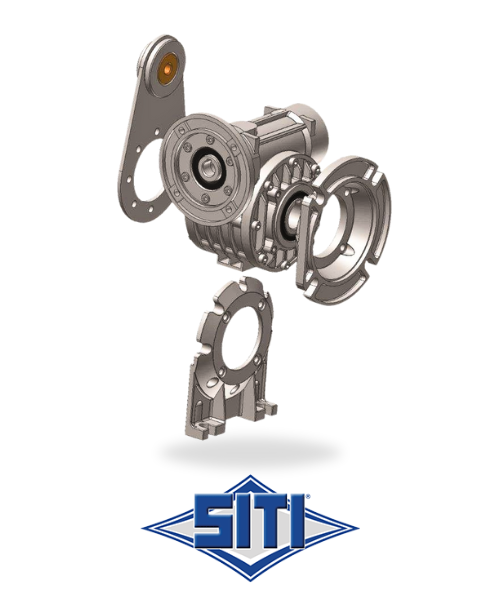

SITI MI40FP-10/1-D63-B14 Worm Gearbox

Compact right-angle worm gearbox with 10 to 1 ratio and D63 input

Overview
The MI40FP-10/1-D63-B14 SITI Worm Gearbox offers a 10 to 1 gear ratio and D63 input. This base-mounted, right-angle gearbox is part of the I-series, designed for compactness to fit where traditional gearboxes cannot.

Performance and Features

• Gear ratio: 10 to 1
• Input size: D63 (B14 mount)
• Torque range: 140 to 26,500 lb.in
• Supports motors from 1/8 horsepower to 75 horsepower
• Interchangeable with VF and SWO gearboxes
• Optional B5 or B14 motor adapters available
• Configurable with single or double plug-in shafts
• Stainless steel output shafts available

Applications
Ideal for projects demanding space efficiency and maximised output. Commonly used in packaging, pumps, conveyor systems, textile machinery, agitators, logistics, and food and beverage industries.

General MI Series Benefits

• Space-saving design
• Flexible mounting options
• Low noise and vibration-free operation
• Cost-effective and durable
• Gear ratios from 7.5 to 1 up to 8,000 to 1
• Interchangeable with major European brands

Versatility

• Twelve sizes available
• Keyed hollow bore or plug-in shaft options
• Lubricated for life for sizes 25 to 75
• B5 and B14 motor adapters
• Double extended input or output shafts
• Multiple flange and feet configurations
• Optional torque limiter

Performance Details

• Input power: 0.5 to 15 horsepower
• Maximum torque: 26,550 lb.in or 3,000 Nm
• Differential device provides zero speed

Typical Applications

• Packaging
• Pumps
• Conveying
• Textile machinery
• Agitators
• Logistics and unit handling
• Food and beverage industries
