MI50FP-20/1-D71-B14 Siti Worm Gearbox
MI50FP-20/1-D71-B14 Siti Worm Gearbox
SITI Gearboxes
SKU:MI50FP-20/1-D71-B14
Couldn't load pickup availability
Delivery Time: Dispatched within 1–2 working days from our UK warehouse
- Free UK Delivery
- Free Returns
- Manufacturer Warranty

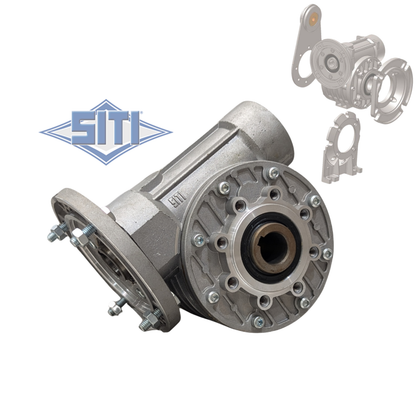

MI50FP-20/1-D71-B14 Siti Worm Gearbox
The MI50FP-20/1-D71-B14 Siti Worm Gearbox features a 20:1 gear ratio and D71 input size. This base-mount, right-angle gearbox is part of the compact I-series, perfect for installations where space is limited. It offers a torque range from 140 lb.inch to 26,500 lb.inch and is interchangeable with international gearboxes such as the VF and SWO series.
Compatible with B5 or B14 motors, this gearbox supports single or double plug-in shafts and optional output flanges. Stainless steel output shafts are available for enhanced durability.
Benefits
- Space-saving compact design
- Flexible mounting options
- Low noise and vibration-free operation
- Cost-effective with long operating life
- Wide ratio range from 7.5:1 to 8,000:1
- Interchangeable with leading European brands
Versatile Features
- Available in 12 sizes
- Keyed hollow bore or plug-in shaft options
- Lubricated for life (sizes 25-75)
- Supports B5 and B14 motor adapters
- Double extended input or output shafts available
- Multiple flange and feet configurations
- Optional torque limiter
Performance
- Input power range: 0.5 to 15 HP
- Maximum torque: 26,550 lb.inch / 3,000 Nm
- Differential device provides zero speed
Applications
- Packaging machinery
- Pumps and compressors
- Material conveying
- Textile industry
- Agitators and mixers
- Logistics and unit handling
- Food and beverage processing
