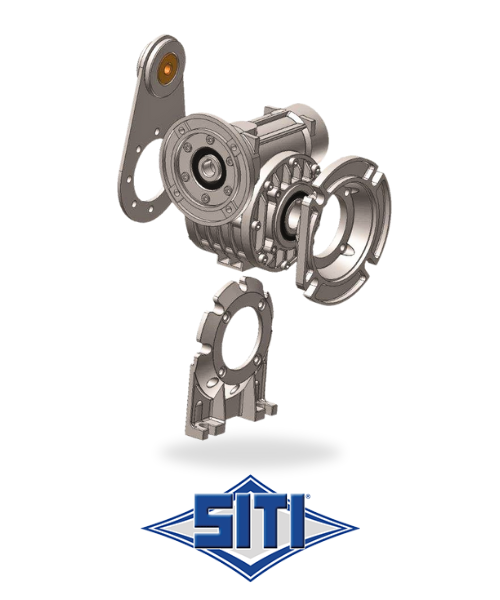

MI60FP-10/1-D90-B14 Siti Worm Gearbox

The MI60FP-10/1-D90-B14 Siti Worm Gearbox features a base-mount, right-angle design with a 10:1 gear ratio and D90 input size. Part of the compact I-series, it fits easily in tight spaces where traditional gearboxes cannot be accommodated.

This model supports a torque range from 140 lb.inch to 26,500 lb.inch and is built to be interchangeable with international gearboxes, including VF and SWO series. It is compatible with B5 or B14 motors and offers optional output flanges with single or double plug-in shaft configurations. Stainless steel output shafts are available for enhanced durability.

The base-mount right-angle design ensures easy installation across various system setups, making this gearbox a great choice for projects demanding size reduction and maximised efficiency.

Benefits

• Space saving design
• Flexible mounting options
• Low noise and vibration free operation
• Cost-effective solution
• Long operating life
• Available in ratios from 7.5:1 to 8,000:1
• Interchangeable with European brands

Versatile Features

• Available in 12 sizes
• Keyed hollow bore or plug-in shaft options
• Lubricated for life (sizes 25 to 75)
• B5 and B14 motor adapters
• Double extended input or output shafts
• Multiple flange and feet configurations
• Torque limiter option available

Performance

• Power input range: 0.5 to 15 HP
• Maximum torque: 26,550 lb.inch / 3,000 Nm
• Differential device provides zero speed capability

Applications

• Packaging
• Pumps
• Conveying
• Textile industry
• Agitators
• Logistics and unit handling
• Food and beverage processing
