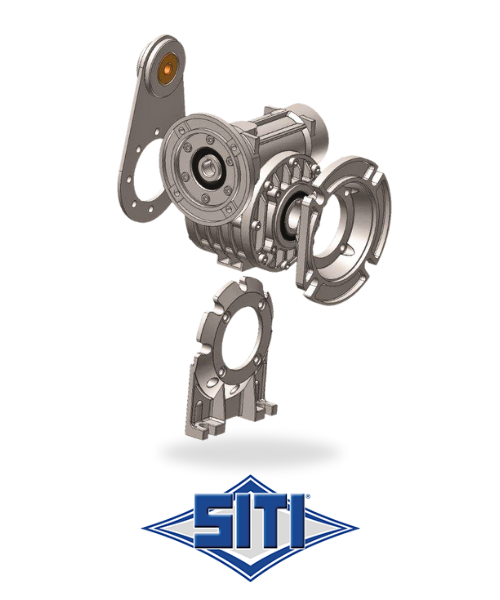

MI70FP-60/1-D80-B14 Siti Worm Gearbox

Ratio 60/1

Input Size D80

MI70FP-60/1-D80-B14 SITI Worm Gearbox
Base-mount, right-angle design
The MI70FP-60/1-D80-B14 SITI Worm Gearbox has a 60:1 gear ratio and D80 input size, this model is part of the I-series, known for its compact design, making it a great fit in areas where traditional gearboxes can’t be accommodated.


• A torque range from 140 lb.inch to 26,500 lb.inch.
• Built to be interchangeable with international gearboxes, including the VF and SWO series.
• Compatible with B5 or B14 motors, this model offers optional output flanges and can be configured with single or double plug-in shafts.
• Supports 1/8 HP to 75 HP
• Stainless steel output shafts are available.
• The base-mount, right-angle design ensures easy installation in a wide variety of system configurations.

Applications:
The SITI Gearbox - MI70FP-60/1-D80-B14 gearbox is an excellent choice for any project, where reducing size and maximising efficiency are critical factors.

General MI Series Information

Benefits

• Space Saving Designs
• Flexible Mounting
• Low Noise & Vibration Free
• Cost-effective
• Long Operating Life
• Ratios from 7.5:1 to 8,000:1
• Interchangeable with European Brands

 Versatile

• 12 Sizes
• Keyed Hollow Bore Standard or Plug-in Shaft
• Lubricated for life (sizes 25-75)
• B5 & B14 Motor Adapters
• Double Extended Input or Output Shafts
• Multiple flange & Feet Configurations
• Torque Limiter Option

Performance

• 0.5 – 15 HP input
• Max torque = 26,550 lb. in. / 3,000 Nm
• Differential Device provides Zero Speed

Applications

• Packaging
• Pumps
• Conveying
• Textile
• Agitators
• Logistics/Unit Handling
• Food & Beverage
