MI80FP-20/1-D90-B14 Siti Worm Gearbox

Name: MI80FP-20/1-D90-B14 Siti Worm Gearbox
Brand: SITI Gearboxes
SKU: MI80FP-20/1-D90-B14
Price: 400.00 GBP
Availability: InStock

MI80FP-20/1-D90-B14 Siti Worm Gearbox

SITI Gearboxes

SKU:MI80FP-20/1-D90-B14

£400.00

~~£0.00~~ £400.00

Exclusive Online Price Sold out

Price excludes VAT + (Free UK Delivery)

Quantity

Delivery Time: Dispatched within 1–2 working days from our UK warehouse

Free UK Delivery
Free Returns
Manufacturer Warranty

MI80FP-20/1-D90-B14 Siti Worm Gearbox

Compact Base-Mount Right-Angle Worm Gearbox for UK Industrial Applications

Ratio: 20 to 1

Input Size: D90

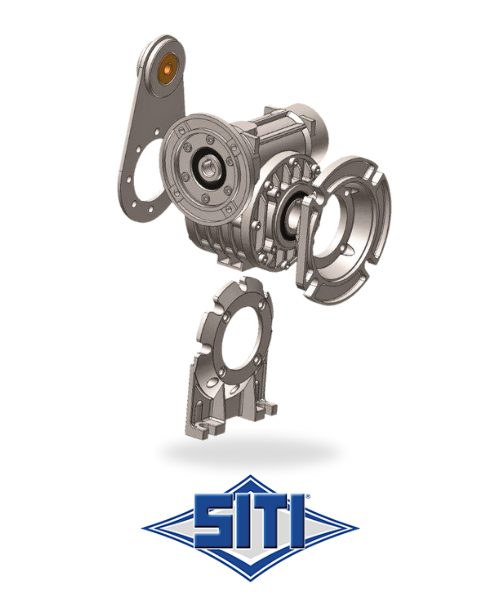

The MI80FP-20/1-D90-B14 Siti Worm Gearbox features a compact base-mount right-angle design with a 20 to 1 gear ratio and D90 input size. This model belongs to the I-series, known for its space-saving design that fits perfectly where traditional gearboxes cannot be installed.

It supports torque ranging from 140 lb.inch up to 26,500 lb.inch and is interchangeable with international gearboxes such as VF and SWO series. Compatible with B5 or B14 motors, it offers optional output flanges and can be configured with single or double plug-in shafts. Suitable for motors from one eighth HP to 75 HP. Stainless steel output shafts are also available.

Benefits

Space saving designs
Flexible mounting options
Low noise and vibration free
Cost effective
Long operating life
Gear ratios ranging from 7.5 to 1 up to 8000 to 1
Interchangeable with European brands

Versatile Features

Available in 12 sizes
Keyed hollow bore standard or plug-in shaft
Lubricated for life (sizes 25 to 75)
B5 and B14 motor adapters
Double extended input or output shafts
Multiple flange and feet configurations
Torque limiter option available

Performance

Input power range from 0.5 to 15 HP
Maximum torque up to 26,550 lb.in / 3,000 Nm
Differential device provides zero speed

Applications

Packaging
Pumps
Conveying
Textile
Agitators
Logistics and unit handling
Food and beverage industries

Order the MI80FP-20/1-D90-B14 Siti Worm Gearbox today from pumpsandgearboxesdirect.com with free UK mainland delivery.
