Ebara

SKU:2055120404 | MMD4/I100-200/4,0

MD - MMD(4)

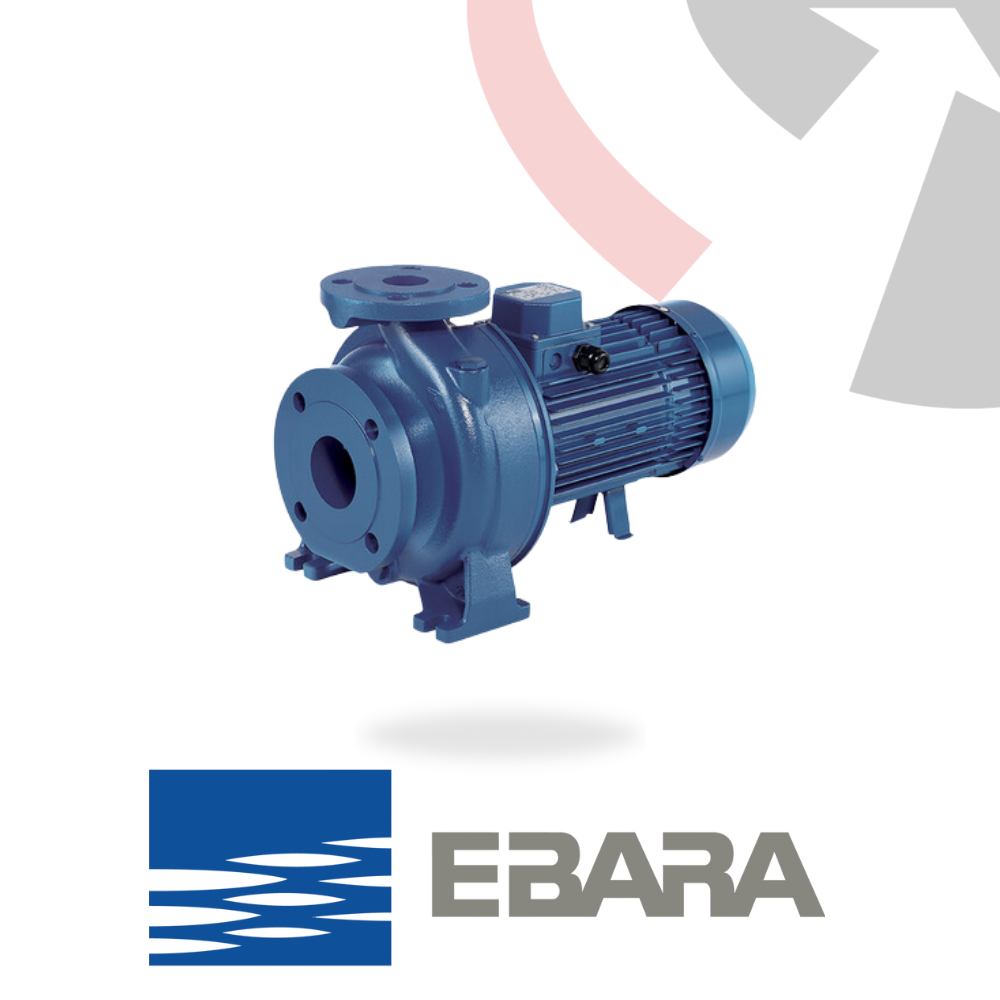

Ebara MMD4 Monobloc Centrifugal Pump - Cast Iron

Performance
The Ebara MMD4 monobloc centrifugal pump, compliant with EN 733, delivers flow rates up to 600 m³/h and total heads up to 92.7 m. Its high-efficiency 4-pole motor provides steady, reliable performance for water supply and liquid handling in UK industrial applications.

Applications
Designed for UK domestic, civil, and industrial use, the MMD4 is ideal for heating, ventilation, and air-conditioning systems, as well as water supply for farms, sports facilities, and industrial plants. It suits pressurisation, firefighting, irrigation, and washing systems.

Construction
Featuring a cast iron pump body and impeller, the MMD4 offers sturdy construction with a back pull-out design for easy maintenance without disconnecting pipes. It includes a stainless steel shaft and a Silicon Carbide/Silicon Carbide/NBR mechanical seal, supported by a cast iron motor housing.

Key Specifications:

• Flow rate: up to 600 m³/h
• Total head: up to 92,7 m
• Max. working pressure: 10 bar
• Max. temperature of the liquid: -10°C ÷ +90°C for MMD
• MEI: > 0.4
• Poles: 4
• Insulation class: F (B for high temperature)
• Protection degree: IP55
• Voltage: Three-phase 3230/400V ±10% (up to 4 kW included), Three-phase 3400/690V +10% (from 5.5kW and above)
• Pump body: Cast iron
• Impeller: Cast iron for MMD
• Shaft: Stainless steel AISI 420 (EN 1.4021) for MMD
• Mechanical seal: MMD = Silicon Carbide/Silicon Carbide/NBR
• Motor support: Cast iron

Delivery
Order the Ebara MMD4 monobloc centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
