| Model | Price | Add |
|---|---|---|
| 1564050009 | MULTIGO40/10 | £489.53 | |
| 1564050104 | MULTIGO40/10 | £489.53 | |
| 1564060009 | MULTIGO40/12 | £528.80 | |
| 1564060104 | MULTIGO40/12 | £528.80 | |
| 1564070006 | MULTIGO40/15 | £554.37 | |
| 1564070104 | MULTIGO40/15 | £554.37 | |
| 1564040009 | MULTIGO40/8 | £478.57 | |
| 1564040104 | MULTIGO40/8 | £478.57 | |
| 1578060009 | MULTIGO80/12 | £534.28 | |
| 1578060104 | MULTIGO80/12 | £534.28 | |
| 1578070009 | MULTIGO80/15 | £588.16 | |
| 1578070104 | MULTIGO80/15 | £588.16 | |
| 1578080009 | MULTIGO80/20 | £607.34 | |
| 1578080104 | MULTIGO80/20 | £607.34 | |
| 1564050121 | MULTIGOM40/10 | £561.68 | |
| 1564060121 | MULTIGOM40/12 | £591.82 | |
| 1564070121 | MULTIGOM40/15 | £618.30 | |
| 1564020121 | MULTIGOM40/6 | £543.41 | |
| 1564040121 | MULTIGOM40/8 | £543.41 | |
| 1578060121 | MULTIGOM80/12 | £618.30 | |
| 1578070121 | MULTIGOM80/15 | £674.01 |

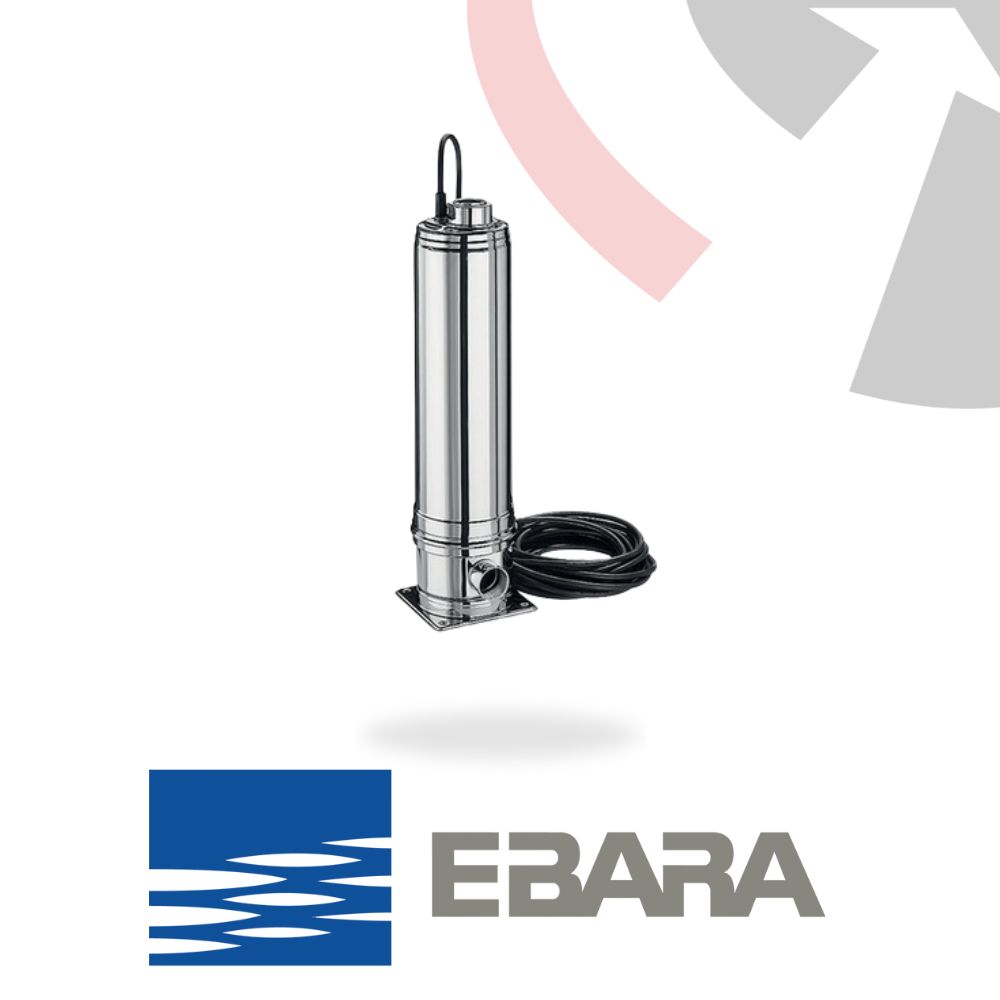

Ebara MULTIGO Vertical Multistage Centrifugal Pump - Stainless Steel
Performance
The Ebara MULTIGO vertical multistage centrifugal pump delivers flow rates from 1.2 to 7.2 m³/h and total heads from 13.4 to 75.7 m. Its internal motor, cooled by the pumped liquid, ensures silent, efficient operation for both surface and submerged use in UK applications.
Applications
Designed for UK domestic and commercial use, the MULTIGO is ideal for pressure boosting systems, irrigation, and washing setups. Its suited for clean water harvesting and pressurisation tasks requiring a versatile, submersible-capable pump.
Construction
Featuring a pump body in AISI 304 stainless steel, the MULTIGO offers robust, easy-to-maintain construction. It includes PPE+PS impellers with glass fibres, a stainless-steel shaft, and a double mechanical seal in an oil chamber for reliability, with an AISI 304 motor support.
Key Specifications:
- Flow rate: 1.2 to 7.2 m³/h
- Total head: from 75.7 to 13.4 m
- Max. Working pressure: 10 bar
- Max. Temperature of the liquid: +40°C
- Max. Suction depth: 6 m with 5 m cable
- MEI: > 0.4
- Poles: 2
- Insulation class: F
- Protection degree: IP68
- Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
- Pump body: Stainless steel AISI 304 (EN 1.4301)
- Impeller: PPE+PS with glass fibres
- Shaft: Stainless steel AISI 431 (EN 1.4057)
- Mechanical seal: Ceramic/Carbon/NBR
- Motor support: AISI 304
