CALPEDA

SKU:MXAM 404/A | 663A1041000

MXA

Cast Iron

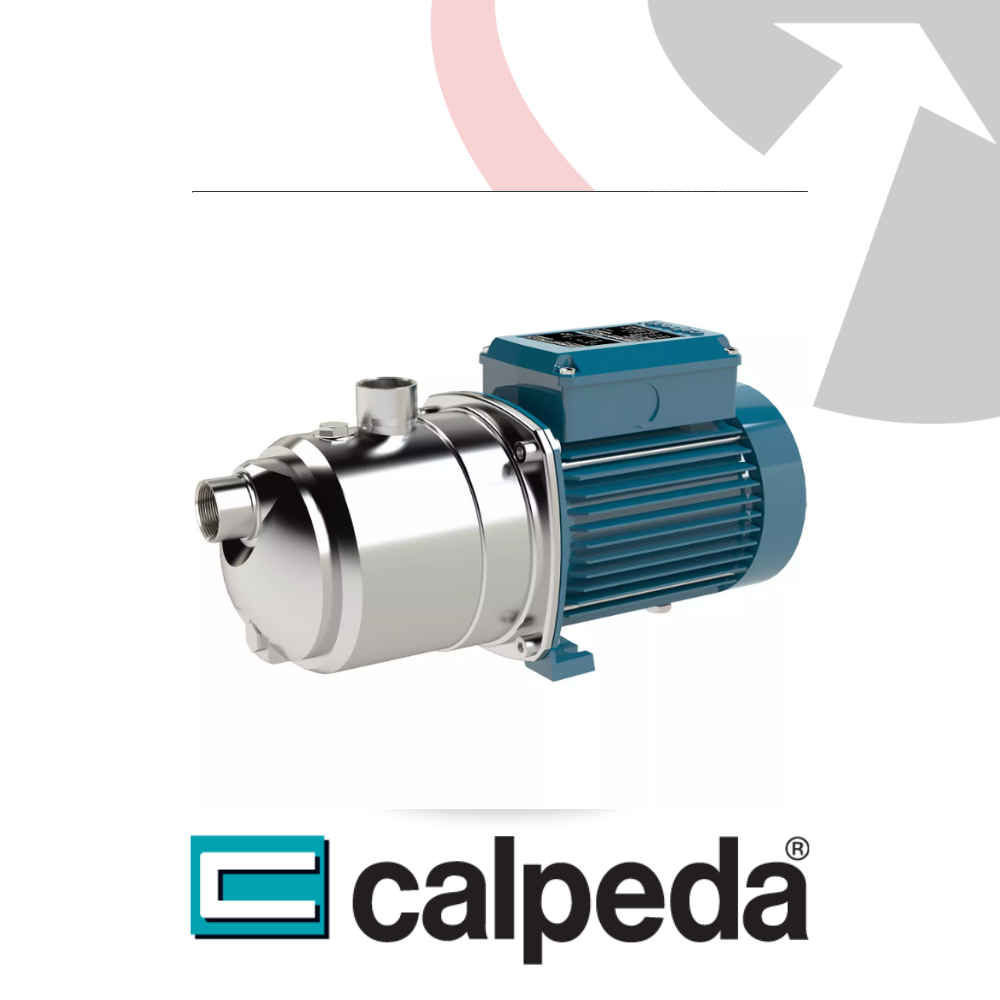

Horizontal multi-stage, self-priming, close coupled pump.

Applications For water supply. For domestic use, for garden use and irrigation.

Construction
Horizontal multi-stage, self-priming, close coupled pump.
Single-piece barrel casing in chrome-nickel stainless steel, with front suction
port above pumps axis and radial delivery at top.
Stages in Noryl.
Applications
For water supply systems.
For domestic use, for garden use and irrigation.
Operating conditions
Liquid temperature: 0 °C to +35 °C.
Ambient temperature up to 40° C.
Suction lift up to 8 m.
Maximum permissible pressure in the pump casing: 8 bar.
Continuous service (S3 60% for 1.5 kW single-phase pumps).
Motor
2-pole induction motor, 50 Hz (n ‰ˆ 2800 1/min).
MXA: three-phase 230/400 V ± 10%.
MXAM: single-phase 230 V ± 10%, with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
Protection IP54
IE2 efficiency class for single-phase motors up to 1,1 kW.
IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW).
Constructed in accordance withEN 60034-1; EN 60034-30-1.
EN 60335-1, EN 60335-2-41.
Special features on request
Other voltages.
Frequency 60 Hz (as per 60 Hz data sheet).
IP protection: IP55
Designation
MXAM 204/A
MXA = Series
M = Singlephase version (no indication: threephase)
2 = Rated capacity in m3/h
04 = Number of impellers
/A = It refers to a revision
