CALPEDA

SKU:MXHLM 804 | 63322041000

MXH

Cast Iron

Delivery Time: For delivery lead times on this product, please contact the office.

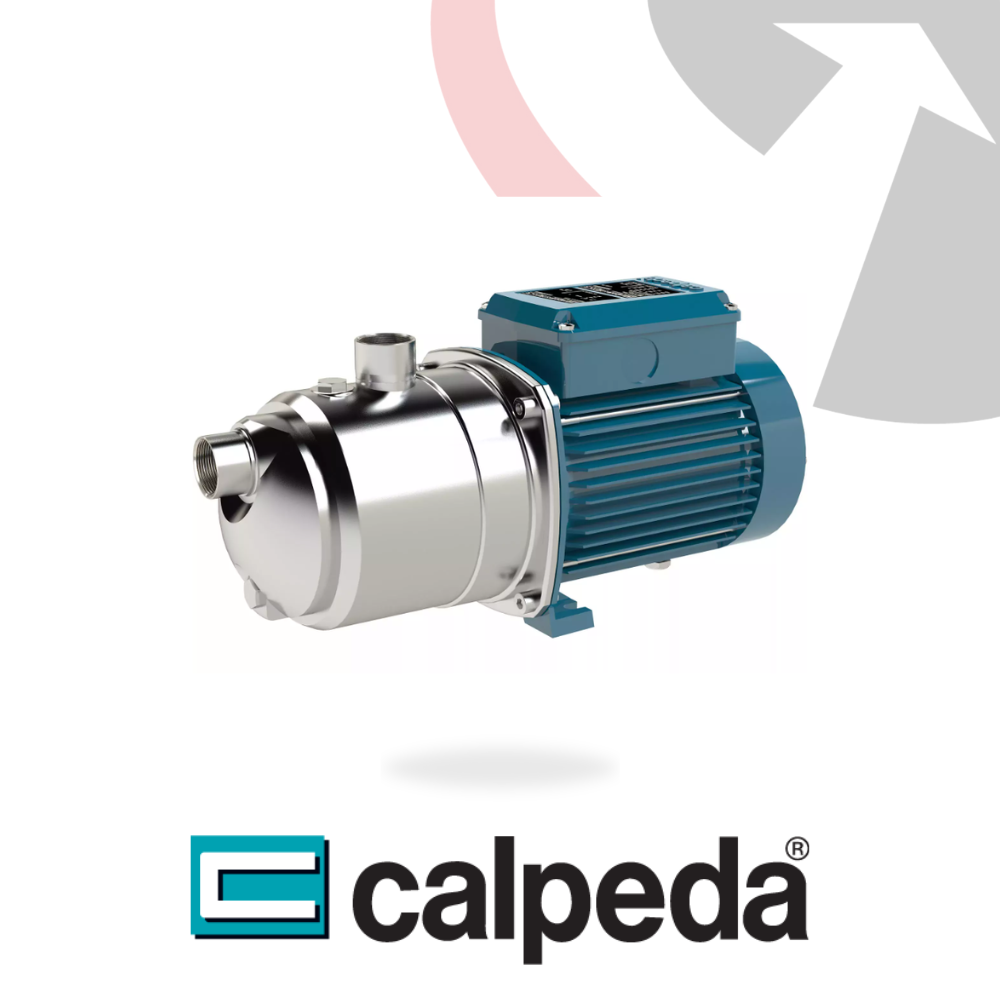

Calpeda MXHL | MXHLM Horizontal Multistage Pumps:

Compact stainless steel multi-impeller pumps for domestic, industrial, and irrigation use.

Flow: Variable by model (typically up to 20+ m³/h)
Head: Varies by model (up to 90+ m)
Power: 0.55 to 7.5 kW

Performance
The Calpeda MXHL and MXHLM pumps are horizontal, multi-stage close-coupled pumps made from AISI 316 stainless steel. These robust, compact units are ideal for clean water handling and pressure boosting in both domestic and industrial applications. Featuring a single-piece barrel casing and radial top delivery, they offer reliable, quiet performance and compatibility with frequency converters for variable-speed operation.

Applications
Suitable for clean, non-abrasive, non-aggressive liquids, the MXHL/MXHLM range is ideal for:

• Domestic and commercial water supply

• Garden and landscape irrigation

• Pressure boosting systems

• Industrial water circulation

• Systems requiring high hygiene or stainless steel compatibility

Construction

• MXHL: AISI 316 stainless steel body and impellers

• Compact design with front axial suction and top radial delivery

• Frequency converter (I-MAT) models available for variable-speed control

• Fully painted motor with feet and integrated lantern bracket

• EPDM mechanical seals with ceramic and carbon faces

• PPS wear rings for quiet, efficient operation

Operating Conditions
Liquid temperature: -15 °C to +110 °C
Ambient temperature: Up to 40 °C
Max working pressure: 8 bar (10 bar for MXH 20, 32, 48)
Continuous duty (S3 60% for single-phase ≤ 1.8 kW)

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
MXH: Three-phase 230/400 V (≤3 kW), 400/690 V (>3 kW)
MXHM: Single-phase 230 V ±10% with thermal protector
Insulation class F, IP54 protection (IP55 optional)
IE2 (single-phase ≤1.1 kW), IE3 (three-phase >0.65 kW)
Compatible with frequency converters from 1.1 kW
