CALPEDA
SKU:MXP 202 | 66200021000

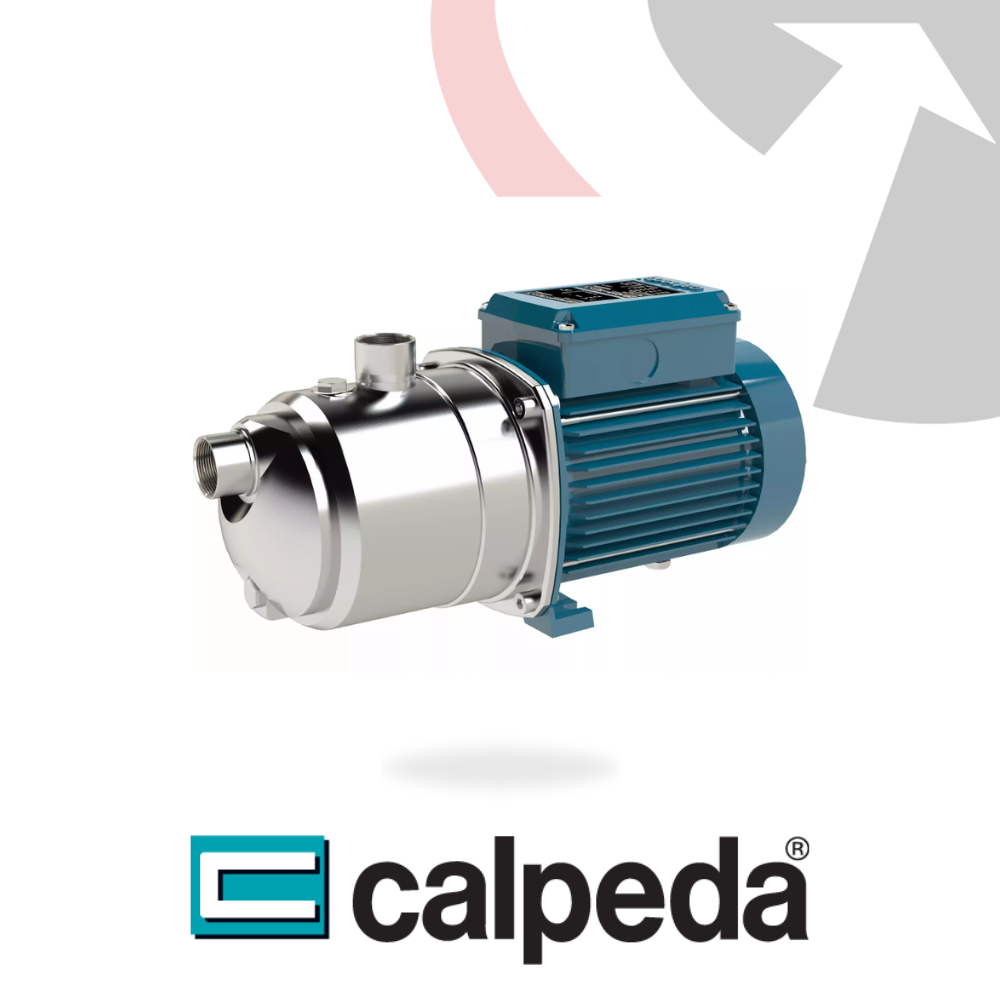

MXP | horizontal multi-stage centrifugal pumps
MXP | horizontal multi-stage centrifugal pumps
Regular price
£260.00
Regular price
£372.00
Sale price
£260.00
Unit price
/
per
Price excludes VAT + (Free UK Delivery)
Couldn't load pickup availability
Delivery Time: For lead times on this product, please contact the office.
Description
Description
MXP Multi-Stage Close Coupled Pump
Horizontal multi-stage close coupled pump with a single-piece barrel casing in chrome-nickel stainless steel, featuring a front suction port above the pump axis and a radial delivery at the top. Stages in Noryl.
Applications
- For water supply systems.
- For domestic use, garden use, and irrigation.
Operating Conditions
- Liquid temperature: 0°C to +50°C.
- Ambient temperature up to 40°C.
- Maximum permissible pressure in the pump casing: 8 bar.
- Continuous duty.
Technical Data
| Flow Rate | 1 - 7.2 m³/h |
|---|---|
| Total Head | 5 - 40 m |
| Power | 0.33 - 0.75 kW |
| Insulation Class | F |
| Protection Degree | IP 54 |
Materials
| Component | Material |
|---|---|
| Pump casing | Chrome-nickel steel 1.4301 (AISI 304) |
| Casing cover | Chrome-nickel steel 1.4301 (AISI 304) |
| Pump shaft | Steel 1.4104 (AISI 430F) |
| Stage casing | PPO-GF20 (Noryl) |
| Impeller | PPO-GF20 (Noryl) |
| Mechanical seal | Carbon - Ceramic - NBR |
