CALPEDA

MXV 65-3202/D | 50340221000

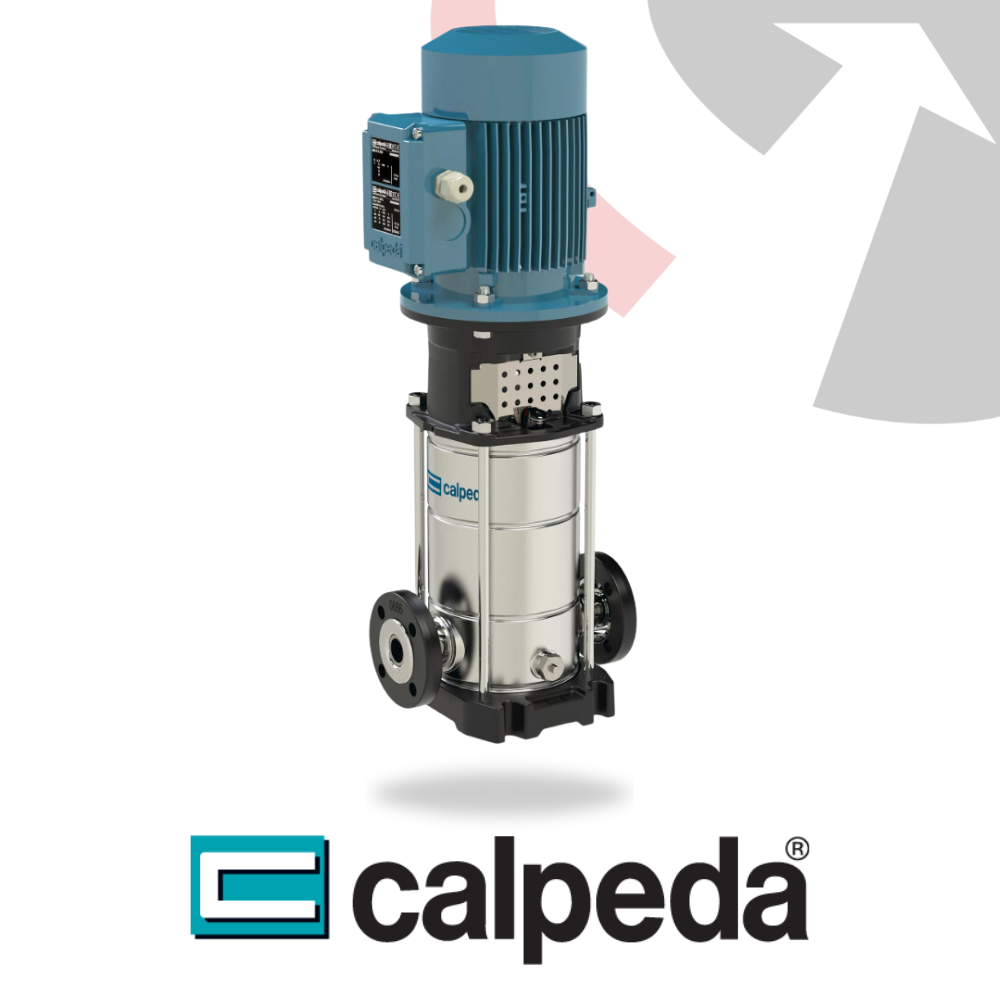

MXV 65 | Vertical Multi-Stage inline Pumps

MXV 65 | Vertical Multi-Stage inline Pumps

£1,336.00
£1,909.00 £1,336.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

MXV 100 Vertical Multi-Stage Pump

Key Features:

  • In-line Design Suction and delivery connections are of the same diameter and aligned for easy installation.
  • Corrosion-Resistant Internal components in stainless steel AISI 304 (MXV) or AISI 316L (MXVL) for durability in various applications.
  • Easy Maintenance Mechanical seal removal without dismantling the motor (for motors over 4 kW).
  • Versatile Motor Options Compatible with IM V1 standard motors, including an optional frequency converter.
  • Continuous Duty Built for high-pressure applications in civil and industrial settings.

Applications:

  • Water supply systems
  • Pressure-boosting systems
  • High-pressure washing plants
  • Irrigation & agricultural uses
  • Sports facility installations

Operating Conditions:

  • Liquid Temperature: -15°C to +110°C
  • Ambient Temperature: Up to 40°C
  • Maximum Pressure: 25 bar (16 bar with oval flanges)
  • Direction of Rotation:
    • Clockwise (MXV, MXVL 25-50, 100)
    • Anticlockwise (MXV, MXVL 65-80)

Materials & Construction:

Component MXV (AISI 304) MXVL (AISI 316L)
Pump Casing Cast Iron Stainless Steel
Impeller AISI 304 AISI 316L
Shaft AISI 303 (AISI 431 for MXV 100) AISI 316L (AISI 329 for MXVL 100)
Bearing Sleeve Corrosion-resistant, cemented carbide Corrosion-resistant, cemented carbide
O-rings EPDM EPDM
Mechanical Seal Hard Metal/Carbon/EPDM Hard Metal/Carbon/EPDM

Motor Details:

  • 2-Pole Induction Motor (50 Hz, ~2900 rpm)
  • IE3 Efficiency Class (from 0.75 kW)
  • Protection: IP55
  • Voltage:
    • Up to 3 kW: 230/400V
    • From 4 kW: 400/690V

Available Variants:

  • Flanged or oval ports (for MXV 25-50)
  • Without motor option available
  • Client-specified motor compatibility
  • Optional frequency converter
  • Single-phase 230V (up to 2.2 kW)
  • Horizontal installation (H1 or H2 support feet)
