CALPEDA
SKU:MXV 80-4801/D | 50350121000

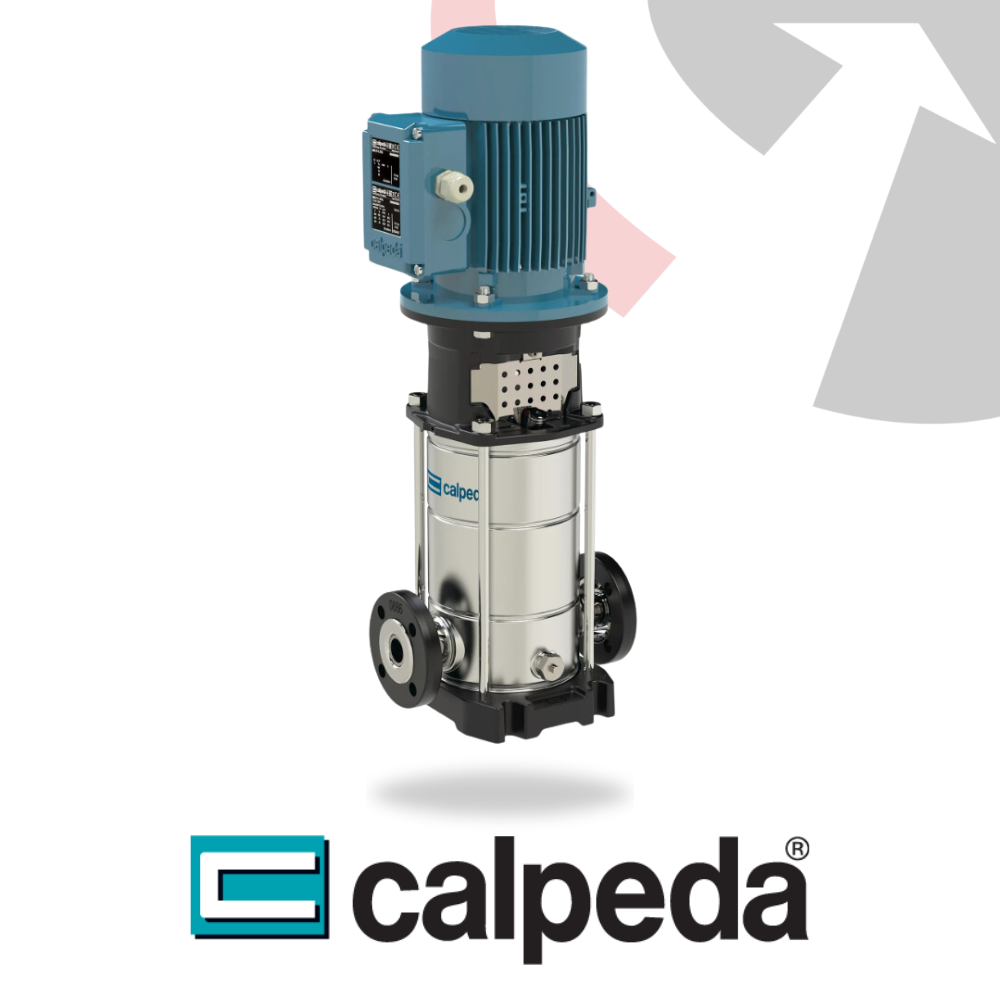

MXV 80 | Vertical multi-stage in-line Pumps
MXV 80 | Vertical multi-stage in-line Pumps
Couldn't load pickup availability
Delivery Time: For delivery lead times on this product, please contact the office.
Calpeda MXV 80 Vertical Multi-Stage In-Line Pump:
Industrial stainless steel inline pump with modular maintenance and high-pressure output.
Flow: 0.6 to 120 m³/h
Head: 3 to 250 m
Power: 0.55 to 45 kW
Performance:
The MXV 80 is a high-performance vertical multi-stage pump designed for civil and industrial water systems. With a corrosion-resistant stainless steel body, it features in-line ports, bearing sleeves lubricated by the pumped liquid, and anti-wear components. The mechanical seal can be replaced without motor removal on motors over 4 kW. Rotation is anticlockwise when viewed from the motor.
Applications
-
Water supply and pressure boosting
-
High-pressure washing plants
-
Agricultural and irrigation systems
-
Civil and commercial fluid distribution
Construction:
-
Chrome-nickel stainless steel internals with cast iron casing
-
In-line port alignment (same diameter, same axis)
-
Corrosion-resistant ceramic and carbide wear elements
-
Compatible with frequency converters (I-MAT EI version available)
-
Anticlockwise rotation from motor view
Operating Conditions:
Liquid temperature: -15 °C to +110 °C
Max pressure: 25 bar (16 bar with oval flanges)
Ambient temp: Up to 40 °C
Continuous duty
Motor:
2-pole induction motor (n ≈ 2900 rpm)
IE3 efficiency class
IM V1 construction
Three-phase up to 3 kW: 230/400 V
Above 4 kW: 400/690 V
IP55, insulation class F
