CALPEDA

SKU:NMS 100/250A/A | 60T0230100000

NM - NMS

Cast Iron

Delivery Time: For delivery lead times on this product, please contact the office.

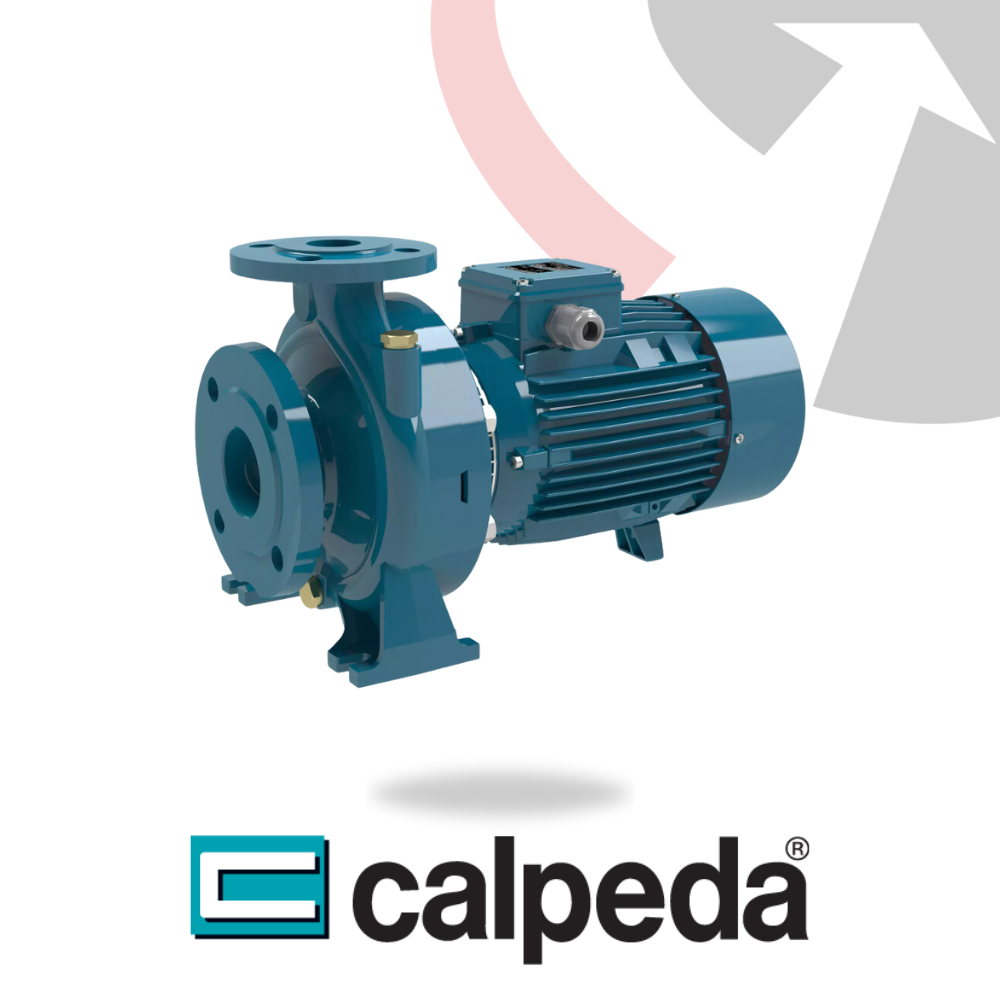

Calpeda NM | NMS Close-Coupled Centrifugal Pumps:

Flanged centrifugal pumps with standard or stub-shaft motors for industrial circulation and clean water transfer.

Flow: 1 to 480 m³/h
Head: 3 to 95 m
Power: 0.25 to 75 kW

Performance:
The Calpeda NM and NMS series are close-coupled centrifugal pumps designed for clean water and process fluid handling in civil and industrial systems. NM models use an extended motor shaft, while NMS models feature a stub-shaft design with an integrated thrust bearing, allowing standard IEC motors to be used. All models include flanged connections and conform to EN 733 performance standards.

Applications:
Designed for clean, non-abrasive liquids with solids content up to 0.2%, suitable for:

• Water supply and pressure boosting

• HVAC systems (heating, cooling, air-conditioning)

• Circulation and process water systems

• Civil and industrial installations

• Agricultural irrigation

Construction:

• NM: Extended shaft motor directly coupled

• NMS: Stub-shaft design with standard motor interface and thrust bearing

• Cast iron pump casing and lantern bracket (bronze version available)

• Axial suction and top radial discharge

• Flanged connections to EN 1092-2 (PN10–16)

• Optional I-MAT frequency converter (EI models)

• Fully painted for corrosion protection

Operating Conditions:
Liquid temperature: -10 °C to +90 °C
Ambient temperature: Up to 40 °C
Suction lift: Up to 7 m
Max working pressure: Up to 16 bar
Continuous duty
Lower pressure limits apply for specific models and bronze versions

Motor:

• 2-pole (≈2900 rpm) or 4-pole (≈1450 rpm) induction motors

• Three-phase: 230/400 V up to 3 kW, 400/690 V from 4 to 75 kW

• IP54 protection (IP55 for NMS models)

• IE2 efficiency (≤0.65 kW), IE3 (0.75–55 kW), IE4 (from 75 kW)

• Suitable for frequency converter operation

• Built to EN 60034-1 and EN 60034-30-1 standards

Delivery:
Free UK mainland delivery from Pumps & Gearboxes Direct.
