Ebara

SKU:1751001700 | OPTIMAM10m

OPTIMA

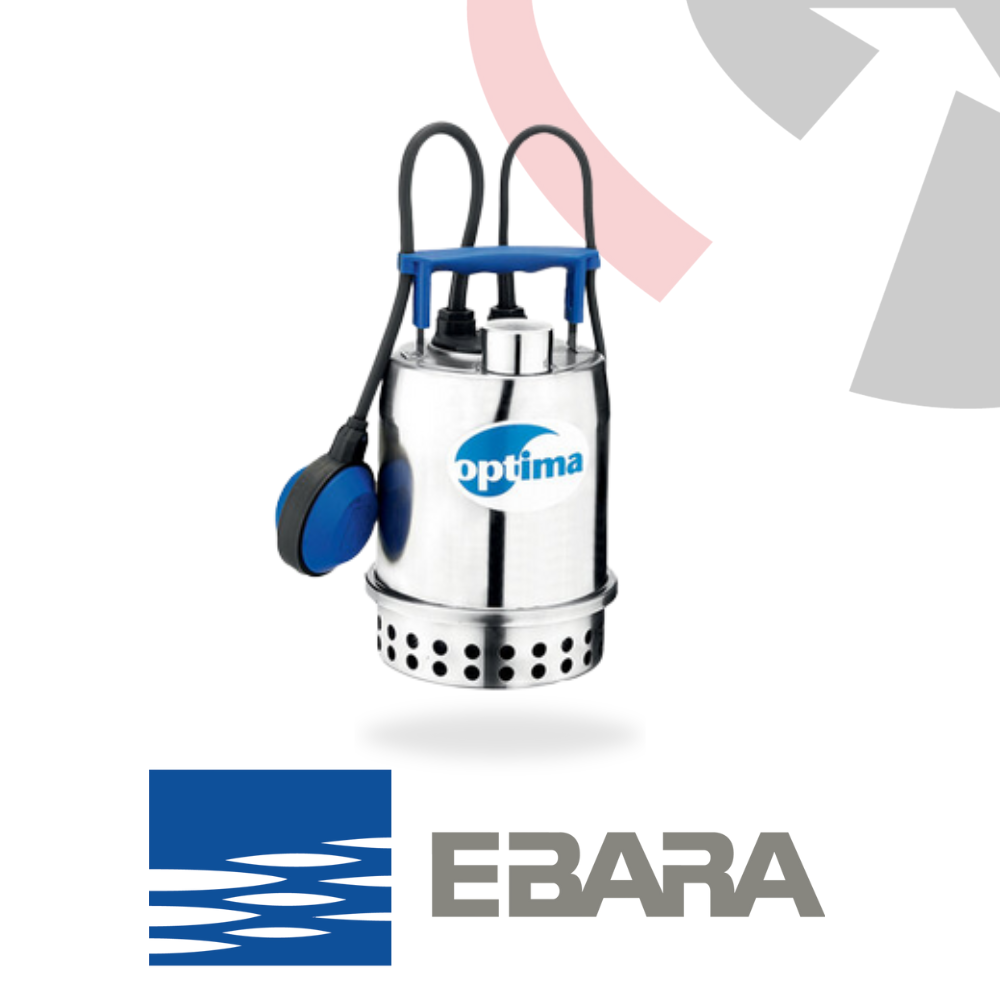

Ebara OPTIMA Submersible Drainage Pump - Stainless Steel

Performance
The Ebara OPTIMA submersible drainage pump delivers flow rates from 1.2 to 9 m³/h and total heads from 1.5 to 7.6 m. Its efficient design ensures reliable drainage and water transfer for domestic UK applications.

Applications
Designed for UK domestic use, the OPTIMA is ideal for emptying wells, cellars, garages, basements, tanks, or reservoirs. It suits irrigating gardens and vegetable plots, as well as supplying water to classic garden fountains.

Construction
Featuring a pump body in AISI 304 stainless steel, the OPTIMA offers a sturdy, corrosion-resistant design with an oversized oil chamber and mechanical seal. It includes a PPE+PS glass fibre-reinforced impeller, a stainless steel shaft, and options for fixed or mobile installation with float switch versatility.

Key Specifications:

• Flow rate: from 1.2 to 9 m³/h
• Total head: from 1.5 to 7.6 m
• Max. Temperature of the liquid: +50°C
• Poles: 2
• Max. solids passage: 10 mm
• Insulation class: F
• Protection degree: IP68
• Voltage: Single phase 1 ~ 230V + 10%
• Max. immersion: 5 m with 10 m cable, 2 m with 5 m cable
• Pump body: Stainless steel AISI 304 (EN 1.4301)
• Impeller: PPE + PS reinforced with glass fibres
• Shaft: Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
• Mechanical seal: Ceramic/Carbon/NBR (mechanical seal), QQV Silicon Carbide/FPM (special mechanical seal), NBR (lip seal)
• Delivery
  Order the Ebara OPTIMA submersible drainage pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
