| Model | Price | Add |
|---|---|---|
| 00-9813 | P.025/SZPPP/TNL/TF/STV/0670 | £1,114.00 | |
| 00-9740 | P.025/SZPPP/TNL/TF/STV/0014 | £1,034.00 | |
| 00-9733 | P.025/SZPPP/TNL/TF/STV | £1,034.00 | |
| 00-10089 | P.025/SZPPP/TEL/TF/STV/0481 | £1,089.00 | |
| 00-9762 | P.025/SZLLL/TNL/TF/STV/0014 | £1,078.00 | |
| 00-9755 | P.025/SZLLL/TNL/TF/STV | £1,078.00 | |
| 00-9739 | P.025/SSPPP/WFS/TF/SWF/0014 | £988.00 | |
| 00-9819 | P.025/SSPPP/WFS/TF/SWF | £988.00 | |
| 00-9732 | P.025/SSPPP/WFS/TF/STV | £1,055.00 | |
| 00-9738 | P.025/SSPPP/BNS/TF/SBN/0014 | £1,051.00 | |
| 00-9731 | P.025/SSPPP/BNS/TF/SBN | £1,051.00 | |
| 00-10051 | XP.025/SZPPP/TEL/TF/STV/0670 | £1,131.00 | |
| 00-10098 | XP.025/SZLLL/TNL/TF/STV/0670 | £1,157.00 | |
| 00-10086 | XP.025/SSLLL/WFS/TF/SWF | £1,031.00 | |
| 00-10031 | XP.025/AZPPP/TEL/TF/ATF | £607.00 | |
| 00-10080 | XP.025/AZLLL/TEL/TF/ATF | £651.00 |
No matching variants found.

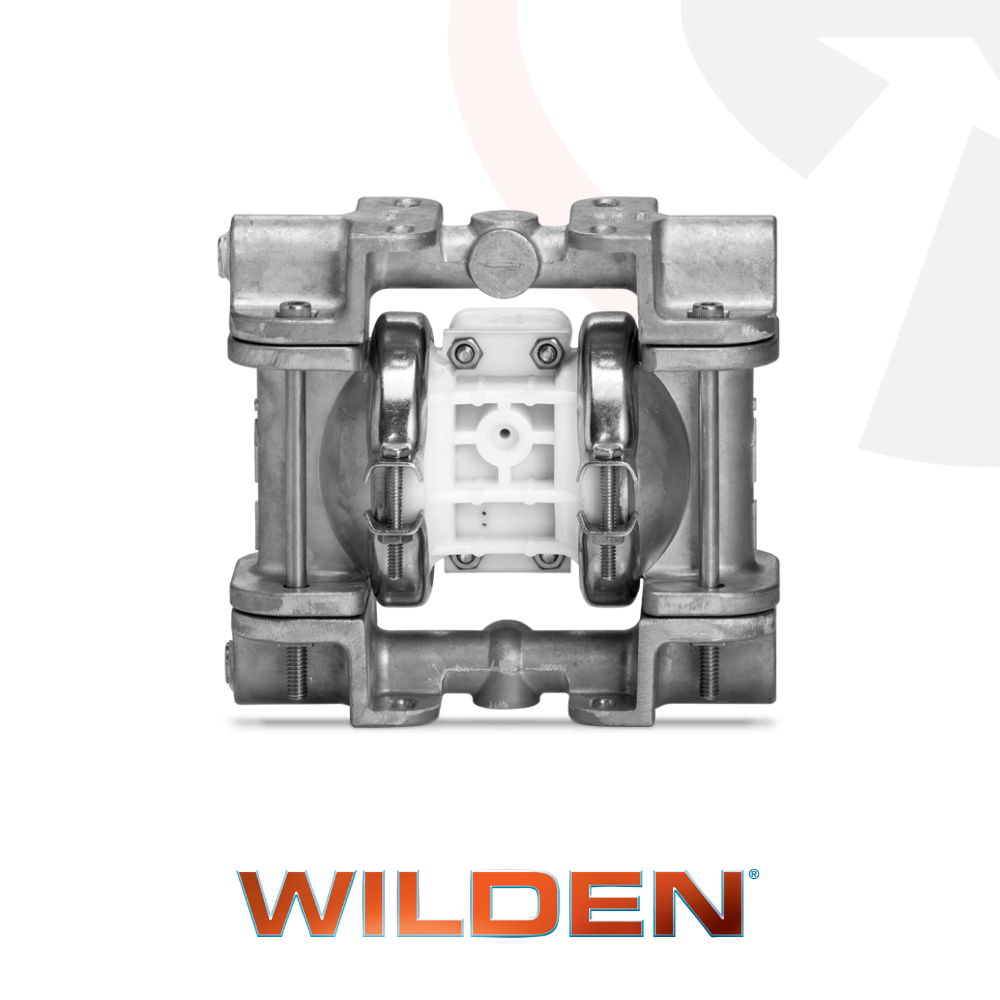

Wilden 6 mm (1/4") Pro-Flo® Series Clamped Metal AODD Pump - P.025
Description
The Wilden 6 mm (1/4") Pro-Flo® Series Clamped Metal AODD Pump (P.025) is a compact and reliable solution for general industrial applications requiring a durable chemical or oil pump. Part of the time-tested Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump features a simple design with only three moving parts, ensuring ease of operation and maintenance. Its clamped construction allows for quick serviceability, making it ideal for industries needing efficient fluid transfer in smaller-scale systems.
Applications
- Chemical processing
- Paint and coatings
- Mining
- Oil and gas
- Water and wastewater
- Liquid terminals
- Process applications
Features
- Proven Pro-Flo® Series design with over 20 years of reliable performance in industrial applications.
- Simple air distribution system with only three moving parts, reducing downtime and simplifying maintenance.
- Clamped construction for faster maintenance, requiring only a single tool for disassembly and reassembly.
- NPT/BSPT threaded connections for quick disconnect and connect, ensuring straightforward installation.
- High suction lift capability:
- Rubber: 3.3 m (10.8') dry, 9.3 m (30.6') wet
- TPE: 3.3 m (10.8') dry, 9.3 m (30.6') wet
- PTFE: 4 m (13') dry, 9.5 m (31.2') wet
- Maximum flow rate: 18.9 lpm (5 gpm) across all elastomer options.
- Handles solids up to 0.4 mm (1/64") for versatile fluid transfer.
- Lube-free operation with plug-and-play functionality, requiring no additional configuration.
Technical Specifications
- Air Inlet: 1/8" FNPT
- Liquid Inlet: 6 mm (1/4")
- Liquid Discharge: 6 mm (1/4")
- Connection Type: NPT/BSPT (Threaded)
-
Max Suction Lift:
- Rubber: 3.3 m (10.8') Dry, 9.3 m (30.6') Wet
- TPE: 3.3 m (10.8') Dry, 9.3 m (30.6') Wet
- PTFE: 4 m (13') Dry, 9.5 m (31.2') Wet
-
Max Flow Rate:
- Rubber: 18.9 lpm (5 gpm)
- TPE: 18.9 lpm (5 gpm)
- PTFE: 18.9 lpm (5 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 0.4 mm (1/64")
-
Displacement Per Stroke:
- Rubber: 0.02 L (0.005 gal)
- TPE: 0.02 L (0.005 gal)
- PTFE: 0.02 L (0.005 gal) (*1 cycle = 2 strokes)
Delivery
Order the Wilden 6 mm (1/4") Pro-Flo® Series Clamped Metal AODD Pump (P.025) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
