P.025 Pro-Flo Series | Clamped Plastic AODD Wilden Pumps

P.025 Pro-Flo Series | Clamped Plastic AODD Wilden Pumps

£399.00
£499.00 £399.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

Pro-Flo SERIES

1/4" (6 mm)

Polypropylene

Delivery Time: 5-6 Weeks for non stock items

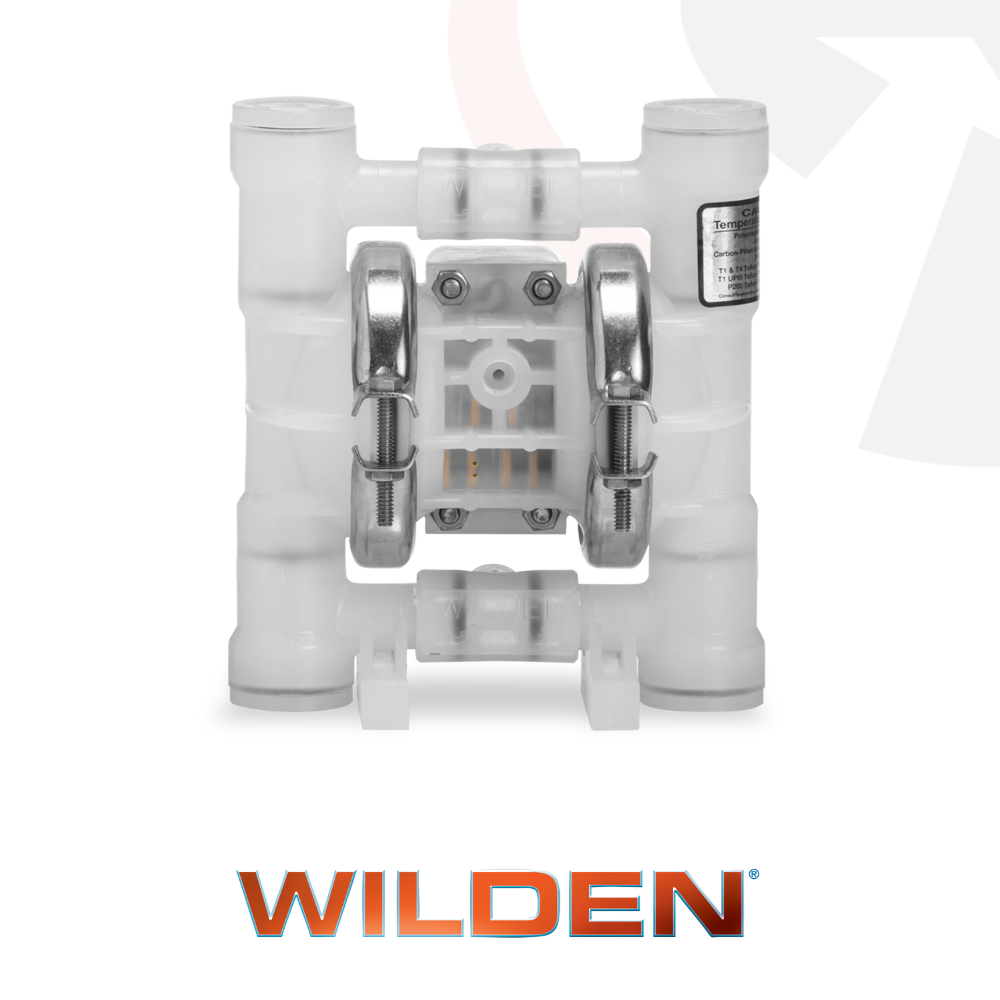

Wilden 6 mm (1/4") Pro-Flo® Series Clamped Plastic AODD Pump - P.025



Description


The Wilden 6 mm (1/4") Pro-Flo® Series Clamped Plastic AODD Pump (P.025) is a compact and reliable solution for chemical applications, designed with a rugged clamped construction for ease of maintenance. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump offers decades of proven performance, delivering efficient fluid transfer in small-scale systems. Its plastic construction ensures corrosion resistance, making the P.025 ideal for industries requiring safe and simple chemical handling.

Applications

  • Chemical transfer
  • Laboratory applications
  • Small-scale dosing systems
  • Fluid circulation in chemical processes

Features

  • Clamped plastic construction for corrosion resistance and reliable operation in chemical environments.
  • FNPT threaded inlet and discharge connections for straightforward installation.
  • Rotatable inlet and discharge for flexible setup in various applications.
  • Designed for fast maintenance, requiring only a single tool for disassembly and reassembly.
  • High suction lift capability:
    • Rubber: 2.74 m (9') dry, 9.45 m (31') wet
    • TPE: 3.05 m (10') dry, 8.84 m (29') wet
    • PTFE: 2.44 m (8') dry, 8.84 m (29') wet
  • Maximum flow rate: 18.1 lpm (4.8 gpm) across all elastomer options.
  • Handles solids up to 0.4 mm (1/64") for versatile fluid transfer.
  • Low cost and simple operation, with a proven design trusted for decades.

Technical Specifications

  • Air Inlet: 1/8" FNPT
  • Liquid Inlet: 6 mm (1/4")
  • Liquid Discharge: 6 mm (1/4")
  • Connection Type: NPT (Threaded)
  • Max Suction Lift:
    • Rubber: 2.74 m (9') Dry, 9.45 m (31') Wet
    • TPE: 3.05 m (10') Dry, 8.84 m (29') Wet
    • PTFE: 2.44 m (8') Dry, 8.84 m (29') Wet
  • Max Flow Rate:
    • Rubber: 18.1 lpm (4.8 gpm)
    • TPE: 18.1 lpm (4.8 gpm)
    • PTFE: 18.1 lpm (4.8 gpm)
  • Max Pressure: 8.6 bar (125 psi)
  • Max Diameter Solids: 0.4 mm (1/64")
  • Displacement Per Stroke:
    • Rubber: 0.02 L (0.005 gal)
    • TPE: 0.02 L (0.005 gal)
    • PTFE: 0.02 L (0.005 gal) (*1 cycle = 2 strokes)

Delivery
Order the Wilden 6 mm (1/4") Pro-Flo® Series Clamped Plastic AODD Pump (P.025) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
