| Model | Motor Power | Power Supply | Price | Add |
|---|---|---|---|---|
| PABLRM15 | UKM10245 Side Suction | 0.37 kW | Single phase 230/1/50 | £398.00 | |
| PM30/C E2 | 107490F30 | 0.5 kW | Single phase 230/1/50 | £701.00 | |
| PM40/C E2 | 107490F40 | 0.6 kW | Single phase 230/1/50 | £816.00 | |
| PM60/C E2 | 107490B00 | 1.1 kW | Single phase 230/1/50 | £1,063.00 | |
| PM70/C E2 | 107490B20 | 1.1 kW | Single phase 230/1/50 | £1,344.00 | |
| P30 | 107490580 | 0.5 kW | Three phase 400/3/50 | £701.00 | |
| P40/D | 104450030 | 0.6 kW | Three phase 400/3/50 | £816.00 | |
| P60/D | 104450040 | 1.1 kW | Three phase 400/3/50 | £1,063.00 | |
| P70/D | 104450050 | 0.75 kW | Three phase 400/3/50 | £1,344.00 | |
| PSAM70/C E2 UK | 107490A00XXXNBR | 0.37 kW | – | £753.00 | |
| PSA70/A (400/3/50) | 107490020 | 0.37 kW | Three phase 400/3/50 | £718.00 |

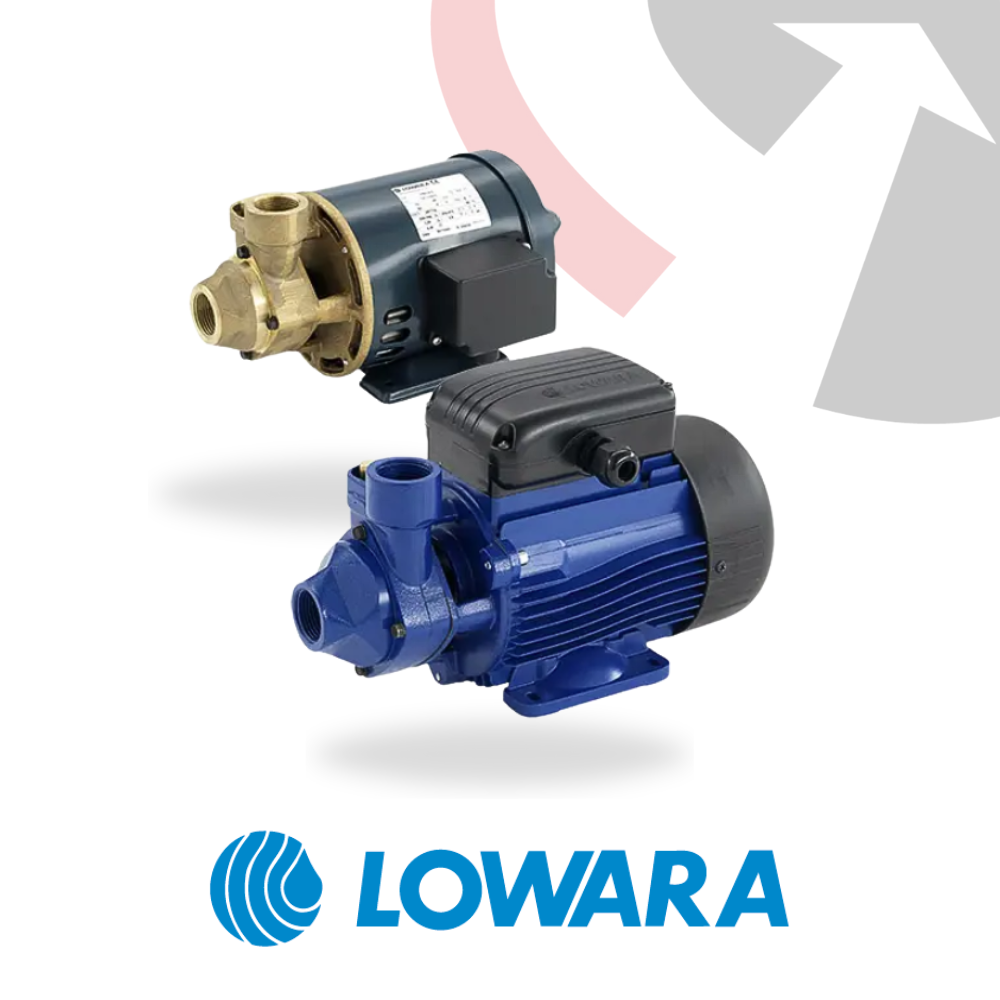

Lowara P, PAB, PSA Series Peripheral Pumps
Performance
Compact peripheral pumps designed for low flow at high pressure. The range delivers up to 3.72 m³/h and up to 82 m head, so it is a solid choice where small volumes need strong pressure. Their unique design allows them to handle liquids with high gas content without flow interruption, making them ideal for various industrial and domestic uses.
Single and three phase options are available.
Construction
Pump bodies in cast iron for P and PSA, bronze for PB, PAB and PABLB. Bronze impeller across the range. Mechanical seal with Ceramic and Carbon faces, NBR elastomers. Protection class IP44 on smaller models such as P16, P21, PAB and PABLB, IP55 on PM30, PM40, PM60, PM70 and PSA. Compact casing with top discharge on PM, side suction variants available where required.
Applications
Water distribution, boiler feed, hot water circulation, pressure boosting, washdown, irrigation, Marine and cooling or chilling systems in domestic, commercial and light industrial settings.
Key Features
Delivery: Up to 3.72 m³/h
Head: Up to 82 m
Temperature Range: -10°C to +80°C (model dependent)
Maximum Operating Pressure: 10 bar
Motor: Single-phase and three-phase 50 & 60 Hz
Materials: Available in cast iron or bronze (for seawater & hot water applications)
Protection: IP44 or IP55 depending on the model
Options
PB version, bronze body for seawater / Marine duties
PK version, compatible with hot water up to 80 °C
PBK version, bronze body for hot water up to 80 °C
