| Model | Price | Add |
|---|---|---|
| 01-10404 | P1/PZPPP/TNL/TF/KTV | £1,390.00 | |
| 01-10896 | P1/PPPPP/WFS/TF/KWF/0490 | £727.00 | |
| 01-10296 | P1/PPPPP/WFS/TF/KTV | £788.00 | |
| 01-10303 | P1/PPPPP/VTS/VT/KTV | £990.00 | |
| 01-10114 | P1/PPPPP/VTS/TF/KTV | £990.00 | |
| 01-10218 | P1/PPPPP/TVU/TF/KTV | £1,283.00 | |
| 01-10876 | P1/PPPPP/TNU/TF/VT | £930.00 | |
| 01-10697 | P1/PPPPP/TNU/TF/KWF | £894.00 | |
| 01-10301 | P1/PPPPP/TNU/TF/KTV/0480 | £1,074.00 | |
| 01-10720 | P1/PPPPP/TEU/TF/KTV | £978.00 | |
| 01-10069 | P1/PPPPP/FSS/TF/KFS | £719.00 | |
| 01-10070 | P1/PPPPP/FSS/FS/KFS | £704.00 | |
| 01-10869 | P1/PPPPP/EPS/TF/KTV | £789.00 | |
| 01-10561 | P1/PPPPP/EPS/EP/KTV | £770.00 | |
| 01-10405 | P1/KZPPP/TNL/TF/KTV | £2,026.00 | |
| 01-10087 | P1/KKPPP/WFS/WF/KWF | £1,345.00 | |
| 01-10998 | P1/KKPPP/WFS/WF/KTV/0502 | £1,773.00 | |
| 01-10206 | P1/KKPPP/WFS/WF/KTV | £1,405.00 | |
| 01-10230 | P1/KKPPP/WFS/TF/KWF | £1,363.00 | |
| 01-10459 | P1/KKPPP/WFS/TF/KTV | £1,424.00 | |
| 01-10328 | P1/KKPPP/VTS/VT/VT | £1,599.00 | |
| 01-11038 | P1/KKPPP/VTS/TF/KTV | £1,626.00 | |
| 01-10292 | P1/KKPPP/TNU/VT/KTV | £1,589.00 | |
| 01-11065 | P1/KKPPP/TNU/TF/KTV/0635 | £1,591.00 | |
| 01-10864 | P1/KKPPP/TEU/TF/KTV | £1,613.00 | |
| 01-10686 | P1/KKPPP/FSS/FS/KTV | £1,405.00 | |
| 01-10088 | P1/KKPPP/BNS/BN/KBN | £1,313.00 |
No matching variants found.

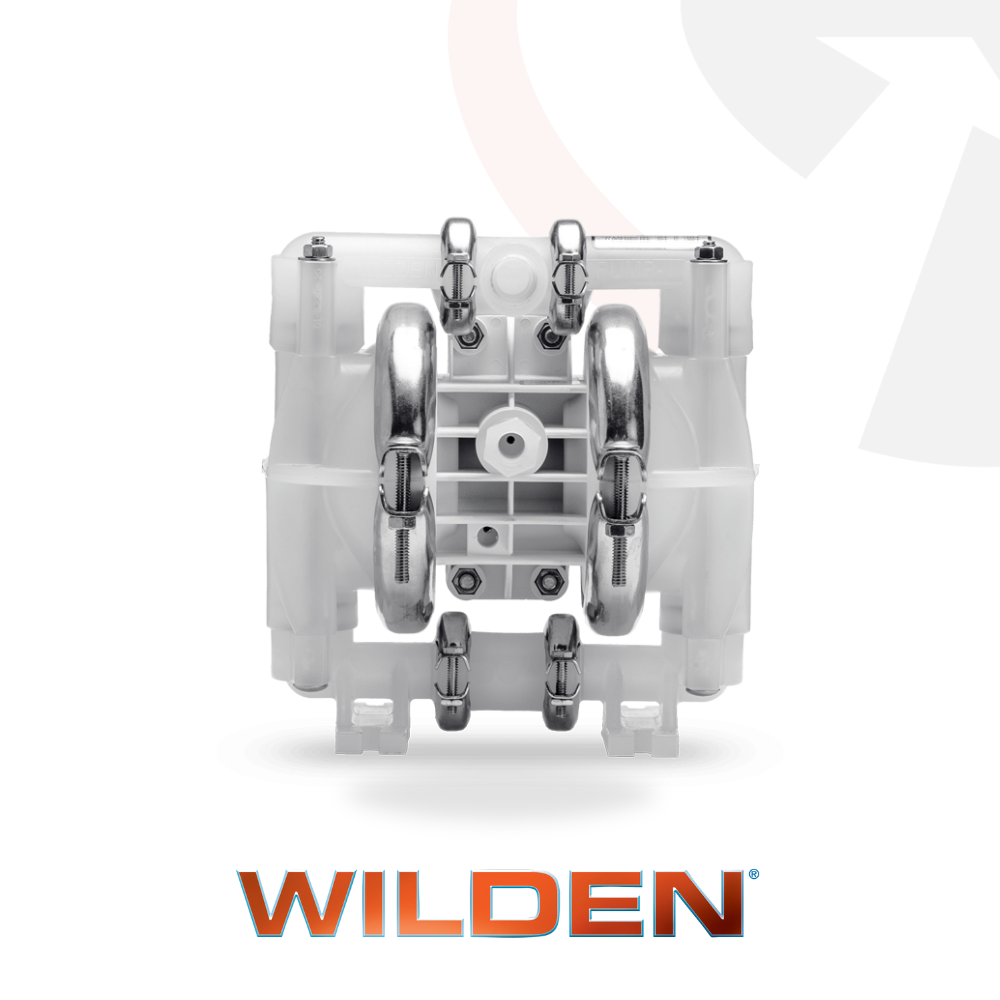

Wilden 13 mm (1/2") Pro-Flo® Series Clamped Plastic AODD Pump - P1
Description
The Wilden 13 mm (1/2") Pro-Flo® Series Clamped Plastic AODD Pump (P1) is a compact and reliable solution for chemical applications, featuring a rugged clamped design for ease of maintenance. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump offers decades of proven performance, delivering efficient fluid transfer in small-scale systems. Its plastic construction ensures corrosion resistance, making the P1 ideal for industries requiring safe and simple chemical handling.
Applications
- Chemical transfer
- Laboratory applications
- Small-scale dosing systems
- Fluid circulation in chemical processes
Features
- Clamped plastic construction for corrosion resistance and reliable operation in chemical environments.
- FNPT threaded inlet and discharge connections for straightforward installation.
- Rotatable inlet and discharge for flexible setup in various applications.
- Designed for fast maintenance, requiring only a single tool for disassembly and reassembly.
- High suction lift capability:
- Rubber: 6.1 m (20') dry, 9.5 m (31') wet
- TPE: 5.8 m (19') dry, 9.8 m (32') wet
- PTFE: 5.18 m (17') dry, 9.8 m (32') wet
- Maximum flow rate:
- Rubber: 56 lpm (14.8 gpm)
- TPE: 56.8 lpm (15 gpm)
- PTFE: 53.4 lpm (14.1 gpm)
- Handles solids up to 1.6 mm (1/16") for versatile fluid transfer.
- Low cost and simple operation, with a proven design trusted for decades.

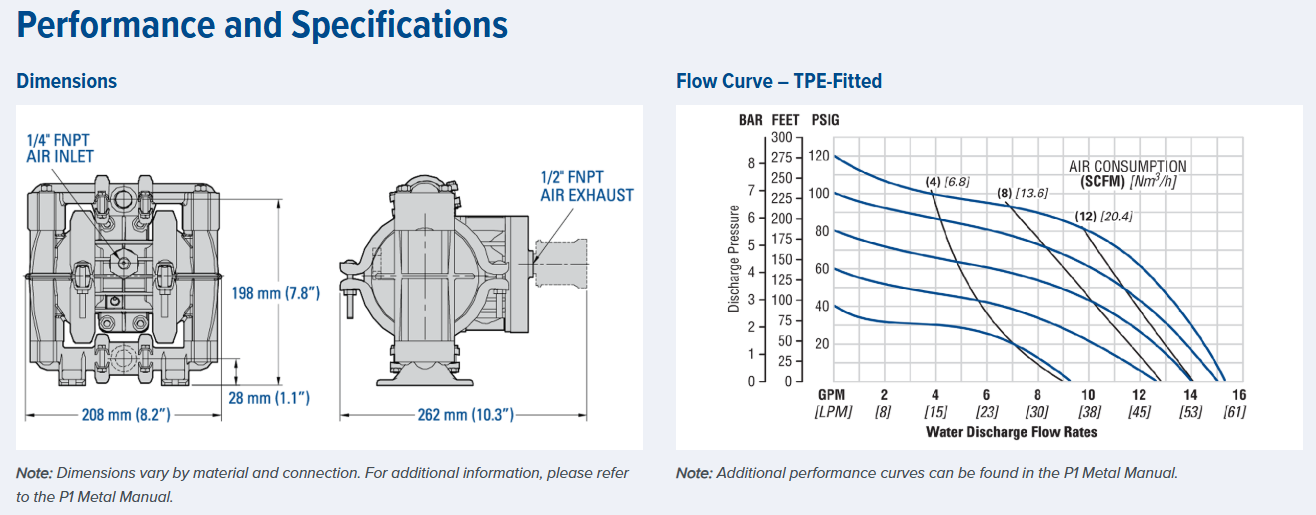

Technical Specifications
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 13 mm (1/2")
- Liquid Discharge: 13 mm (1/2")
- Connection Type: NPT (Threaded)
-
Max Suction Lift:
- Rubber: 6.1 m (20') Dry, 9.5 m (31') Wet
- TPE: 5.8 m (19') Dry, 9.8 m (32') Wet
- PTFE: 5.18 m (17') Dry, 9.8 m (32') Wet
-
Max Flow Rate:
- Rubber: 56 lpm (14.8 gpm)
- TPE: 56.8 lpm (15 gpm)
- PTFE: 53.4 lpm (14.1 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 1.6 mm (1/16")
-
Displacement Per Stroke:
- Rubber: 0.11 L (0.029 gal)
- TPE: 0.11 L (0.030 gal)
- PTFE: 0.10 L (0.027 gal) (*1 cycle = 2 strokes)
Delivery
Order the Wilden 13 mm (1/2") Pro-Flo® Series Clamped Plastic AODD Pump (P1) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
