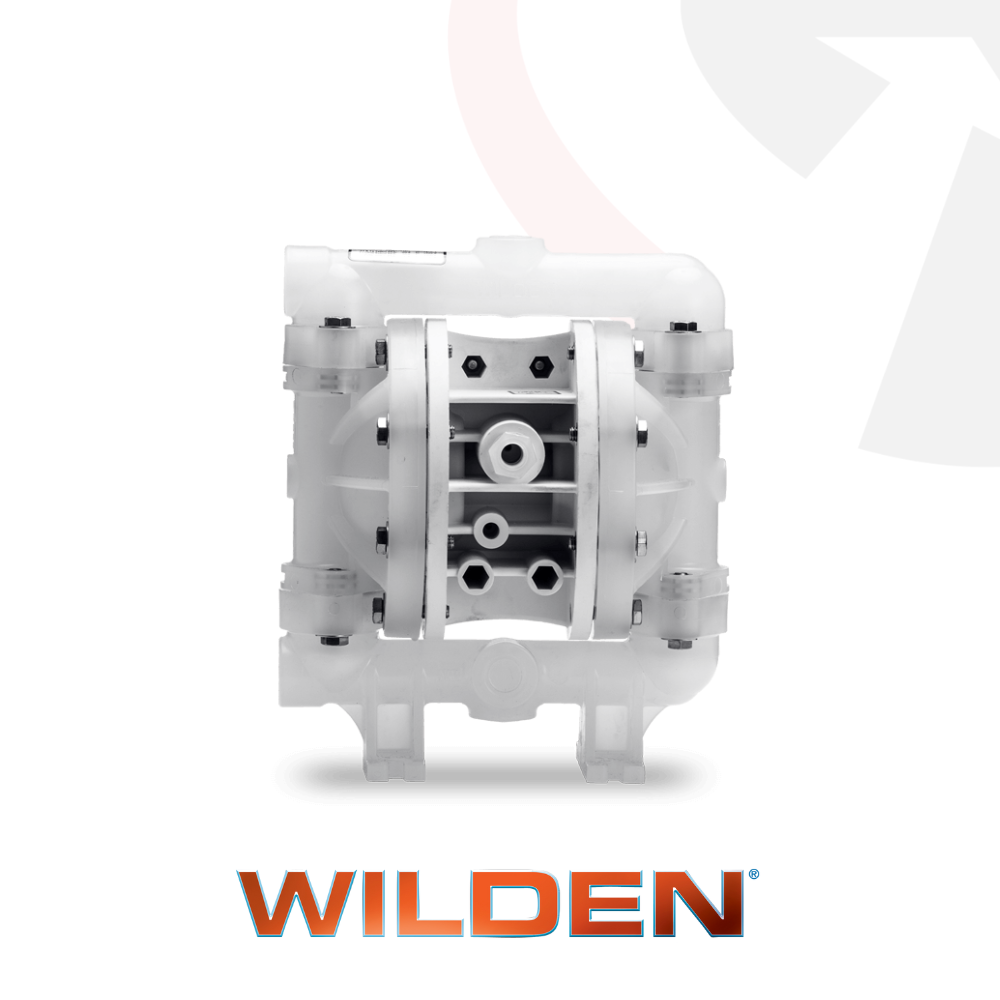

Wilden 13 mm (1/2") Pro-Flo® Series Bolted Plastic AODD Pump - P100

Description
The Wilden 13 mm (1/2") Pro-Flo® Series Bolted Plastic AODD Pump (P100) is designed for maximum performance and efficiency, offering superior containment for chemical and industrial applications. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump features a bolted construction and a redesigned liquid path that reduces internal friction, ensuring higher flow rates and longer diaphragm life. Its plastic construction provides corrosion resistance, making the P100 ideal for industries requiring reliable fluid transfer in compact systems.

Applications

• Chemical transfer
• Industrial fluid handling
• Small-scale dosing systems
• Fluid circulation in chemical processes
• Wastewater handling

Features

• Bolted plastic construction for superior containment and corrosion resistance in chemical environments.
• NPT or BSPT threaded inlet and discharge connections for easy installation.
• Redesigned liquid path to reduce internal friction, maximising flow rates and extending diaphragm life.
• High suction lift capability:
  • Rubber: 5.2 m (17.0') dry, 8.7 m (28.4') wet
  • TPE: 5.2 m (17.0') dry, 5.5 m (18.0') wet
  • PTFE: 4.5 m (14.7') dry, 9.3 m (30.6') wet
• Maximum flow rate:
  • Rubber: 56 lpm (14.8 gpm)
  • TPE: 58.7 lpm (15.5 gpm)
  • PTFE: 57 lpm (15 gpm)
• Handles solids up to 1.6 mm (1/16") for versatile fluid transfer.
• Increased on/off reliability and longest Mean Time Between Repair (MTBR) for reduced downtime.
• Simple operation and maintenance, with decades of proven performance.

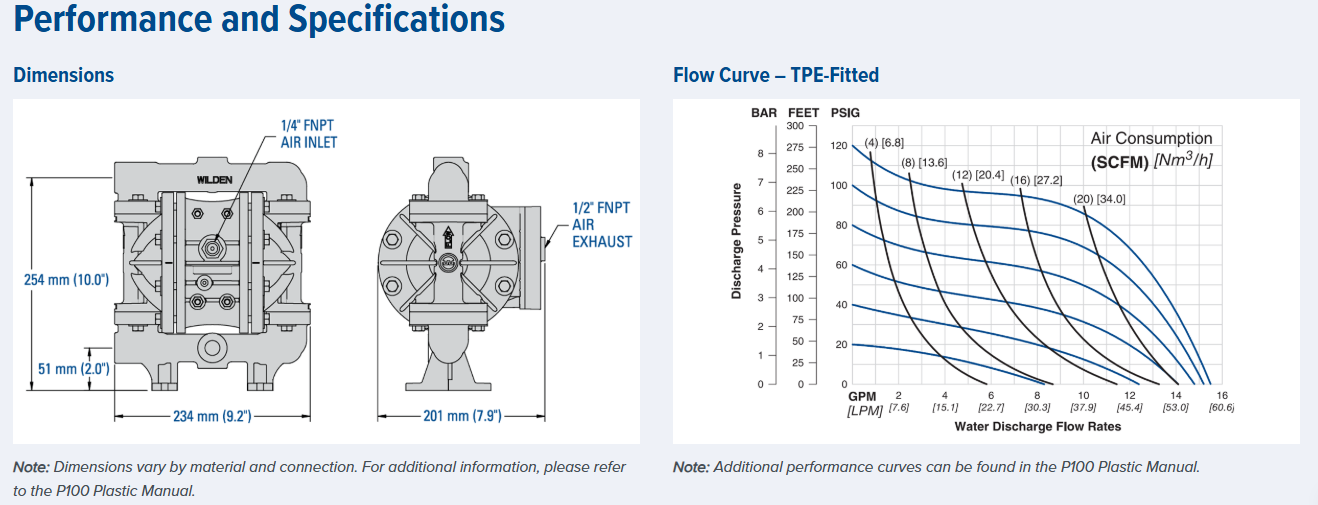

Technical Specifications

• Air Inlet: 1/4" FNPT
• Liquid Inlet: 13 mm (1/2")
• Liquid Discharge: 13 mm (1/2")
• Connection Type: NPT/BSPT (Threaded)
• Max Suction Lift:
  • Rubber: 5.2 m (17.0') Dry, 8.7 m (28.4') Wet
  • TPE: 5.2 m (17.0') Dry, 5.5 m (18.0') Wet
  • PTFE: 4.5 m (14.7') Dry, 9.3 m (30.6') Wet
• Max Flow Rate:
  • Rubber: 56 lpm (14.8 gpm)
  • TPE: 58.7 lpm (15.5 gpm)
  • PTFE: 57 lpm (15 gpm)
• Max Pressure: 8.6 bar (125 psi)
• Max Diameter Solids: 1.6 mm (1/16")
• Displacement Per Stroke:
  • Rubber: 0.10 L (0.027 gal)
  • TPE: 0.11 L (0.029 gal)
  • PTFE: 0.10 L (0.027 gal) (*1 cycle = 2 strokes)

Delivery
Order the Wilden 13 mm (1/2") Pro-Flo® Series Bolted Plastic AODD Pump (P100) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
