| Estimated Delivery | Add | |||
|---|---|---|---|---|
| 15-12183 | P1500/PSPPP/TWS/TF/KTV | 15-12183 | P1500/PSPPP/TWS/TF/KTV | — |
£12,395.00
Save £3,099.00 (20% off)
|
|
| 15-10669 | P1500/PKPPP/TNU/TF/KTV/0504 | 15-10669 | P1500/PKPPP/TNU/TF/KTV/0504 | — |
£11,840.00
Save £2,960.00 (20% off)
|
|
| 15-11470 | P1500/PKPPP/TNU/TF/KTV/0100 | 15-11470 | P1500/PKPPP/TNU/TF/KTV/0100 | — |
£12,413.00
Save £3,104.00 (20% off)
|
|
| 15-10668 | P1500/PKPPP/TNU/TF/KTV | 15-10668 | P1500/PKPPP/TNU/TF/KTV | — |
£11,838.00
Save £2,960.00 (20% off)
|
|
| 15-11784 | P1500/PKPPP/TEU/TF/KTV | 15-11784 | P1500/PKPPP/TEU/TF/KTV | — |
£11,869.00
Save £2,968.00 (20% off)
|
|
| 15-10671 | P1500/KKPPP/TNU/TF/KTV | 15-10671 | P1500/KKPPP/TNU/TF/KTV | — |
£23,686.00
Save £5,922.00 (20% off)
|

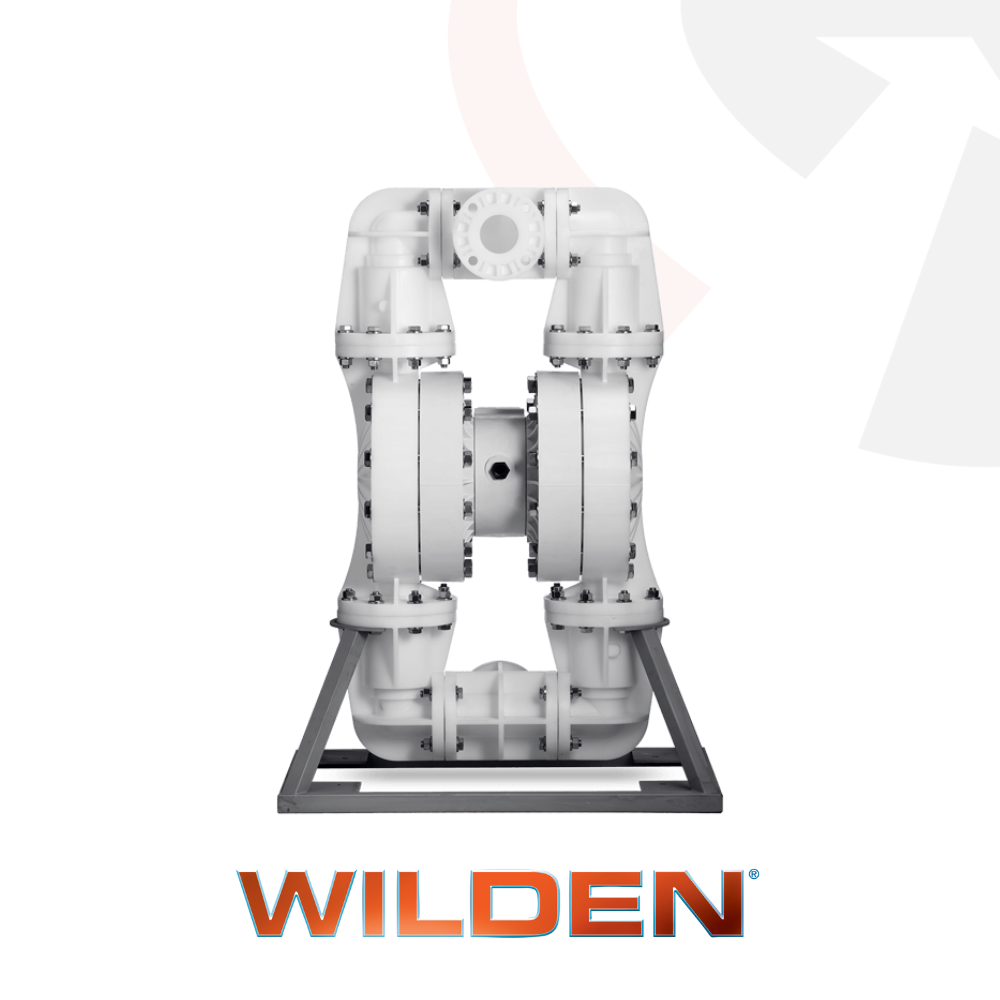

Wilden 76 mm (3") Pro-Flo® Series Bolted Plastic AODD Pump - P1500
Description
The Wilden 76 mm (3") Pro-Flo® Series Bolted Plastic AODD Pump (P1500) is engineered for maximum performance and efficiency, offering superior containment for demanding industrial and chemical applications. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump features a bolted construction and a redesigned liquid path that reduces internal friction, ensuring higher flow rates and longer diaphragm life. Its plastic construction, available in polypropylene or PVDF, provides excellent corrosion resistance, making the P1500 ideal for industries requiring reliable fluid transfer with large solids handling.
Applications
- Chemical processing
- Industrial fluid handling
- Wastewater treatment
- Mining and slurry transfer
- Food and beverage processing
Features
- Bolted plastic construction for superior containment and corrosion resistance, available in polypropylene or PVDF.
- DIN or ANSI flanged inlet and discharge connections for secure installation.
- Redesigned liquid path to reduce internal friction, maximising flow rates and extending diaphragm life.
- High suction lift capability:
- Full-Stroke PTFE: 5.5 m (18.2') dry, 8.6 m (28.4') wet
- Reduced-Stroke PTFE: 3.63 m (12') dry, 8.6 m (28.4') wet
- Maximum flow rate:
- Full-Stroke PTFE: 878 lpm (232 gpm)
- Reduced-Stroke PTFE: 784 lpm (207 gpm)
- Handles solids up to 12.7 mm (1/2") for versatile fluid transfer.
- Increased on/off reliability and longest Mean Time Between Repair (MTBR) for reduced downtime.
- Simple operation and maintenance, with decades of proven performance.

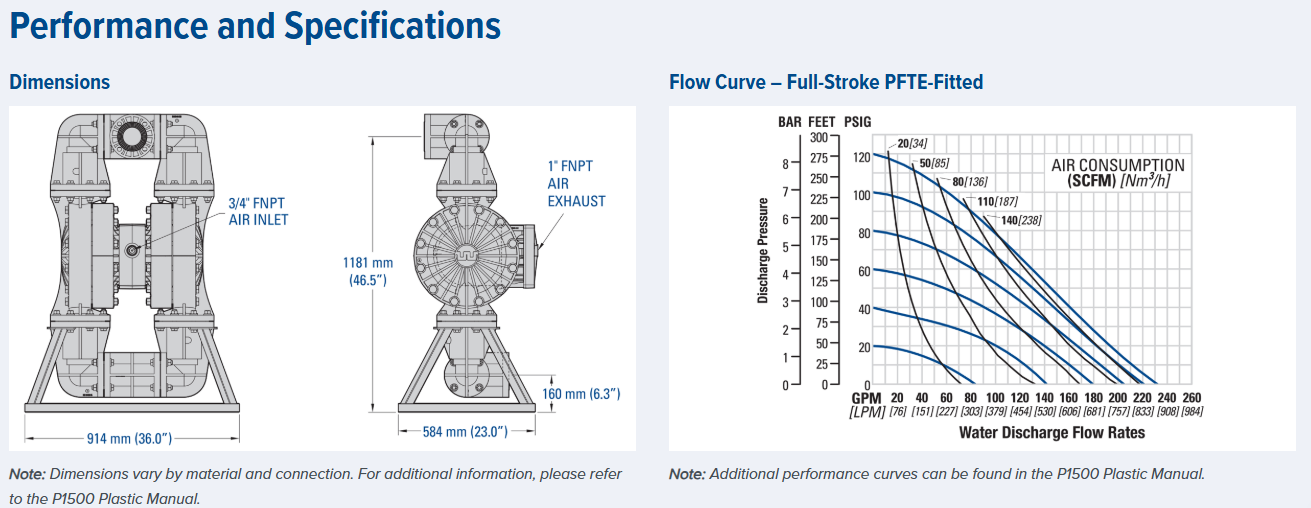

Technical Specifications
- Air Inlet: 3/4" FNPT
- Liquid Inlet: 76 mm (3")
- Liquid Discharge: 76 mm (3")
- Connection Type: DIN/ANSI (Flanged)
-
Max Suction Lift:
- Full-Stroke PTFE: 5.5 m (18.2') Dry, 8.6 m (28.4') Wet
- Reduced-Stroke PTFE: 3.63 m (12') Dry, 8.6 m (28.4') Wet
-
Max Flow Rate:
- Full-Stroke PTFE: 878 lpm (232 gpm)
- Reduced-Stroke PTFE: 784 lpm (207 gpm)
-
Max Pressure:
- 6.9 bar (100 psi) for polypropylene pumps
- 8.6 bar (125 psi) for PVDF pumps
- Max Diameter Solids: 12.7 mm (1/2")
-
Displacement Per Stroke:
- Full-Stroke PTFE: 5.8 L (1.52 gal)
- Reduced-Stroke PTFE: 3.75 L (0.99 gal) (*1 cycle = 2 strokes)
-
Ship Weight:
- Polypropylene: 138 kg (305 lb)
- PVDF: 161 kg (356 lb)
Delivery
Order the Wilden 76 mm (3") Pro-Flo® Series Bolted Plastic AODD Pump (P1500) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
