| Model | Price | Add |
|---|---|---|
| 02-12376 | P2/AAPPP/WFS/WF/SWF/2000 | £1,070.00 | |
| 02-12273 | P2/AAPPP/WFS/WF/AWF/2014 | £1,005.00 | |
| 02-12247 | P2/AAPPP/WFS/WF/AWF/2000 | £1,005.00 | |
| 02-12472 | P2/AAPPP/VTS/VT/ATF/2014 | £1,397.00 | |
| 02-12441 | P2/AAPPP/VTS/VT/ATF/2000 | £1,397.00 | |
| 02-12281 | P2/AAPPP/TWS/TF/ATF/2014 | £1,405.00 | |
| 02-12279 | P2/AAPPP/TWS/TF/ATF/2000 | £1,405.00 | |
| 02-12271 | P2/AAPPP/TSU/TF/ATF/2014 | £1,409.00 | |
| 02-12245 | P2/AAPPP/TSU/TF/ATF/2000 | £1,409.00 | |
| 02-12282 | P2/AAPPP/TSS/TF/ATF/2014 | £1,405.00 | |
| 02-12280 | P2/AAPPP/TSS/TF/ATF/2000 | £1,405.00 | |
| 02-12373 | P2/AAPPP/TNU/TF/STF/2000 | £1,477.00 | |
| 02-12322 | P2/AAPPP/NES/NE/ABN/2014 | £914.00 | |
| 02-12332 | P2/AAPPP/NES/NE/ABN/2000 | £914.00 | |
| 02-12334 | P2/AAPPP/NES/BN/ABN/2000 | £940.00 | |
| 02-12499 | P2/AAPPP/FSS/FS/AFS/2000 | £1,057.00 | |
| 02-12421 | P2/AAPPP/EPS/EP/ABN/2014 | £1,007.00 | |
| 02-12491 | P2/AAPPP/BNS/VT/ABN/2000 | £1,005.00 | |
| 02-12410 | P2/AAPPP/BNS/TF/ABN/2014 | £1,008.00 | |
| 02-12335 | P2/AAPPP/BNS/TF/ABN/2000 | £1,008.00 | |
| 02-12272 | P2/AAPPP/BNS/BN/ABN/2014 | £974.00 | |
| 02-12246 | P2/AAPPP/BNS/BN/ABN/2000 | £974.00 |

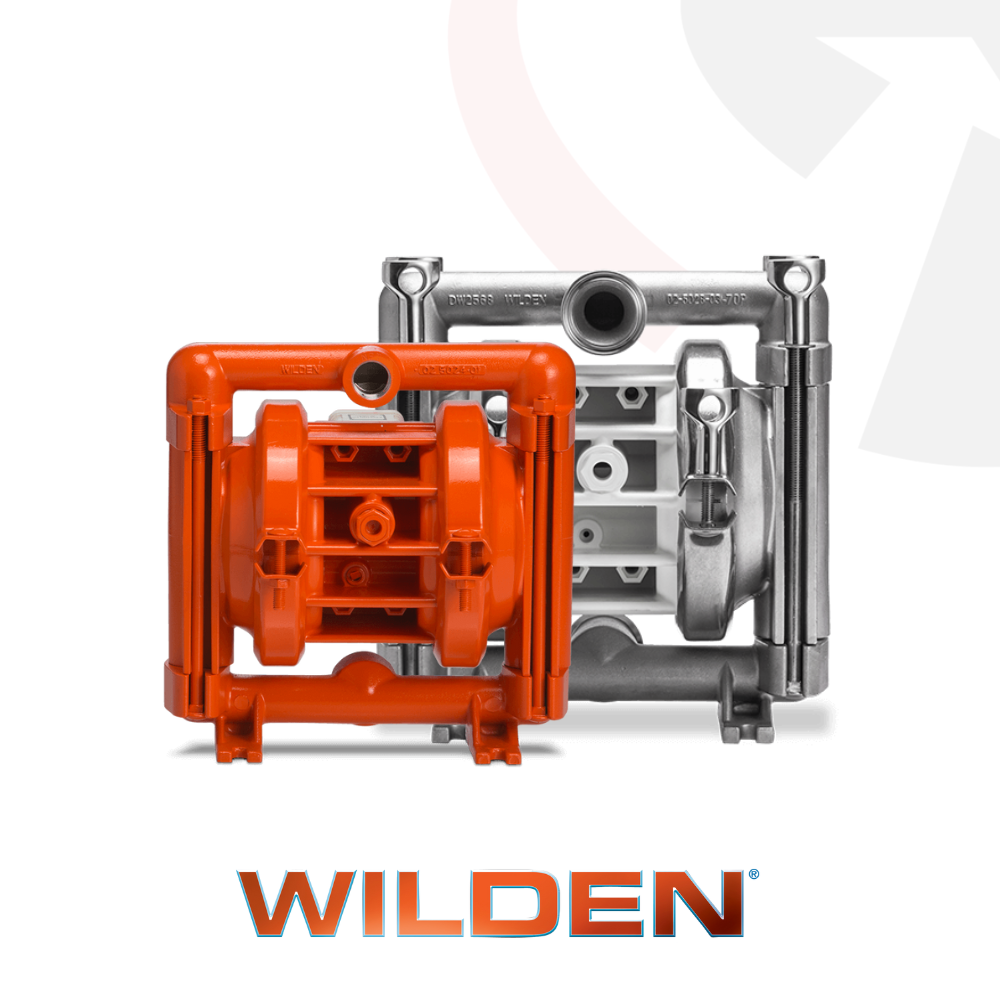

Wilden P2 Pro-Flo Clamped Metal AODD Pump - Aluminium
Performance
The Wilden P2 Pro-Flo clamped metal AODD pump in aluminium delivers reliable performance, with flow rates up to 140 l/min (8.4 m³/h) and maximum pressures up to 8.6 bar. Its air-operated double-diaphragm design ensures efficient fluid handling for industrial tasks.
Applications
Tailored for UK industrial use, the Wilden P2 in aluminium is suited for transferring thin to viscous liquids, including abrasive or shear-sensitive media. Its well-suited for paint circulation, oil transfer, and general manufacturing processes.
Construction
Featuring a lightweight aluminium wetted path, the Wilden P2 offers a cost-effective, durable solution with good resistance to wear. The clamped metal design allows for quick disassembly and maintenance, supported by the Pro-Flo air distribution system for consistent operation.

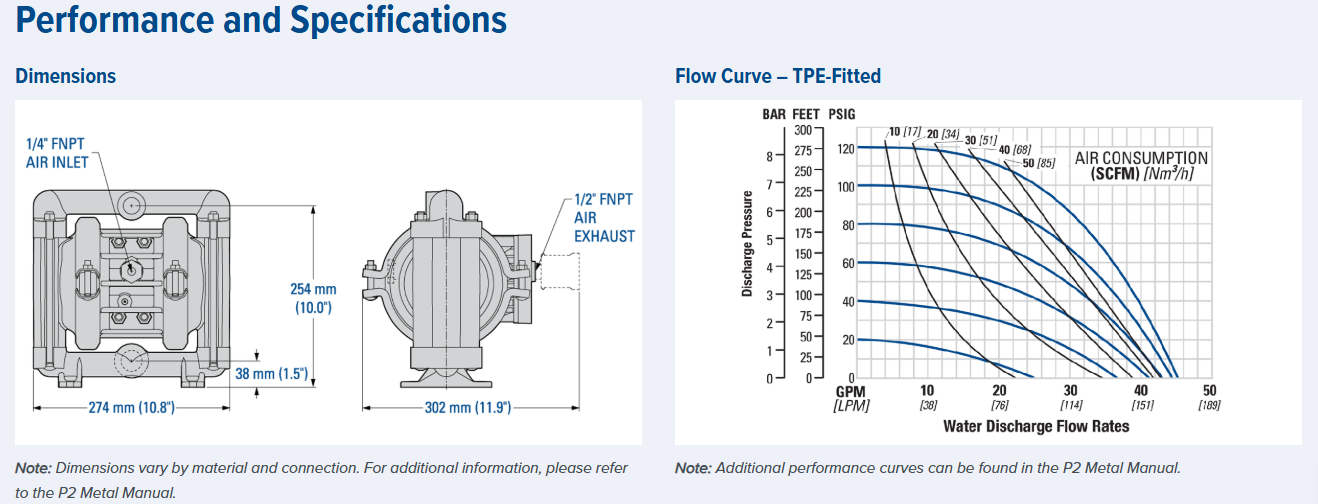

Key Specifications:
- Flow rate: Up to 140 l/min (8.4 m³/h)
- Max pressure: 8.6 bar
- Suction lift: Up to 6.4 m (dry), 9.5 m (wet)
- Max temperature: Up to 176.7 °C (material dependent)
- Port size: 25 mm (1") BSPT/NPT
- Solids handling: Up to 3.2 mm
Delivery
Order the Wilden P2 Pro-Flo clamped metal AODD pump in aluminium from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
