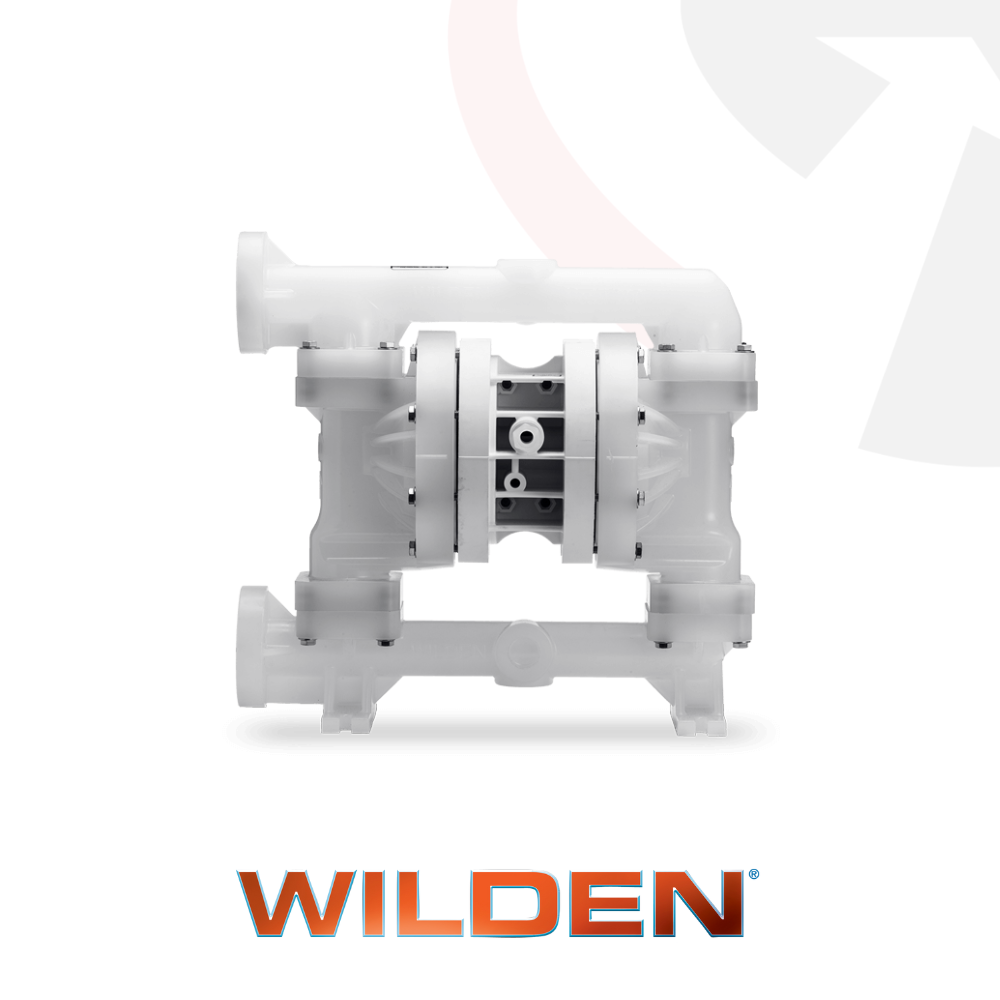

Wilden 25 mm (1") Pro-Flo® Series Bolted Plastic AODD Pump - P200

Description
The Wilden 25 mm (1") Pro-Flo® Series Bolted Plastic AODD Pump (P200) is engineered for maximum performance and efficiency, offering superior containment for chemical and industrial applications. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump features a bolted construction and a redesigned liquid path that reduces internal friction, ensuring higher flow rates and longer diaphragm life. Its plastic construction, available in polypropylene or PVDF, provides excellent corrosion resistance, making the P200 ideal for industries requiring reliable fluid transfer with solids handling.

Applications

• Chemical processing
• Industrial fluid handling
• Wastewater treatment
• Paint and coatings transfer
• Food and beverage processing

Features

• Bolted plastic construction for superior containment and corrosion resistance, available in polypropylene or PVDF.
• DIN or ANSI flanged inlet and discharge connections for secure installation.
• Redesigned liquid path to reduce internal friction, maximising flow rates and extending diaphragm life.
• High suction lift capability:
  • Rubber: 3.6 m (11.9') dry, 9.1 m (30.0') wet
  • TPE: 3.5 m (11.4') dry, 9.8 m (32.0') wet
  • Full-Stroke PTFE: 3.5 m (11.4') dry, 8.6 m (28.4') wet
  • Reduced-Stroke PTFE: 2.4 m (7.9') dry, 9.4 m (31.0') wet
• Maximum flow rate:
  • Rubber: 220 lpm (58 gpm)
  • TPE: 216 lpm (57 gpm)
  • Full-Stroke PTFE: 195 lpm (51.4 gpm)
  • Reduced-Stroke PTFE: 174 lpm (46 gpm)
• Handles solids up to 4.76 mm (3/16") for versatile fluid transfer.
• Increased on/off reliability and longest Mean Time Between Repair (MTBR) for reduced downtime.
• Simple operation and maintenance, with decades of proven performance.

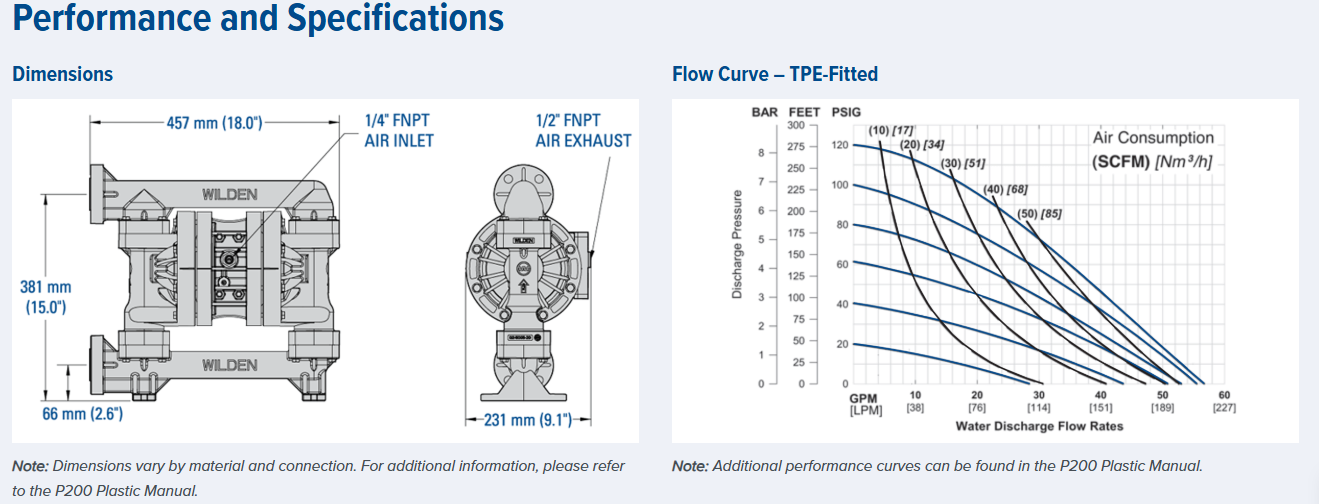

Technical Specifications

• Air Inlet: 1/4" FNPT
• Liquid Inlet: 25 mm (1")
• Liquid Discharge: 25 mm (1")
• Connection Type: DIN/ANSI (Flanged)
• Max Suction Lift:
  • Rubber: 3.6 m (11.9') Dry, 9.1 m (30.0') Wet
  • TPE: 3.5 m (11.4') Dry, 9.8 m (32.0') Wet
  • Full-Stroke PTFE: 3.5 m (11.4') Dry, 8.6 m (28.4') Wet
  • Reduced-Stroke PTFE: 2.4 m (7.9') Dry, 9.4 m (31.0') Wet
• Max Flow Rate:
  • Rubber: 220 lpm (58 gpm)
  • TPE: 216 lpm (57 gpm)
  • Full-Stroke PTFE: 195 lpm (51.4 gpm)
  • Reduced-Stroke PTFE: 174 lpm (46 gpm)
• Max Pressure: 8.6 bar (125 psi) for polypropylene and PVDF pumps
• Max Diameter Solids: 4.76 mm (3/16")
• Displacement Per Stroke:
  • Rubber: 0.32 L (0.09 gal)
  • TPE: 0.33 L (0.09 gal)
  • Full-Stroke PTFE: 0.5 L (0.13 gal)
  • Reduced-Stroke PTFE: 0.22 L (0.06 gal) (*1 cycle = 2 strokes)
