| Estimated Delivery | Add | |||
|---|---|---|---|---|
| 02-12186 | P220/WWPPP/WFS/WF/MWF/0678 | 02-12186 | P220/WWPPP/WFS/WF/MWF/0678 | — |
£1,481.00
Save £370.00 (19% off)
|
|
| 02-11726 | P220/WWPPP/WFS/WF/MWF/0677 | 02-11726 | P220/WWPPP/WFS/WF/MWF/0677 | — |
£1,481.00
Save £370.00 (19% off)
|
|
| 02-11184 | P220/WWPPP/WFS/WF/MTF/0014 | 02-11184 | P220/WWPPP/WFS/WF/MTF/0014 | — |
£1,469.00
Save £367.00 (19% off)
|
|
| 02-12129 | P220/WWPPP/WFS/TF/STF/0697 | 02-12129 | P220/WWPPP/WFS/TF/STF/0697 | — |
£1,635.00
Save £409.00 (20% off)
|
|
| 02-11179 | P220/WWPPP/TSU/TF/MTF/0697 | 02-11179 | P220/WWPPP/TSU/TF/MTF/0697 | — |
£1,939.00
Save £485.00 (20% off)
|
|
| 02-11315 | P220/WWPPP/TSU/TF/MTF/0677 | 02-11315 | P220/WWPPP/TSU/TF/MTF/0677 | — |
£1,882.00
Save £471.00 (20% off)
|
|
| 02-11178 | P220/WWPPP/TSU/TF/MTF/0014 | 02-11178 | P220/WWPPP/TSU/TF/MTF/0014 | — |
£1,851.00
Save £463.00 (20% off)
|
|
| 02-11172 | P220/WWPPP/NES/NE/MNE/0014 | 02-11172 | P220/WWPPP/NES/NE/MNE/0014 | — |
£1,360.00
Save £340.00 (20% off)
|
|
| 02-11356 | P220/WWPPP/EPS/EP/MEP/0014 | 02-11356 | P220/WWPPP/EPS/EP/MEP/0014 | — |
£1,460.00
Save £365.00 (20% off)
|
|
| 02-12341 | P220/WWPPP/BNS/BN/STF/0677 | 02-12341 | P220/WWPPP/BNS/BN/STF/0677 | — |
£1,578.00
Save £395.00 (20% off)
|
|
| 02-11167 | P220/WWPPP/BNS/BN/MBN/0697 | 02-11167 | P220/WWPPP/BNS/BN/MBN/0697 | — |
£1,508.00
Save £377.00 (20% off)
|
|
| 02-12194 | P220/WWPPP/BNS/BN/MBN/0678 | 02-12194 | P220/WWPPP/BNS/BN/MBN/0678 | — |
£1,450.00
Save £363.00 (20% off)
|
|
| 02-11956 | P220/WWPPP/BNS/BN/MBN/0677 | 02-11956 | P220/WWPPP/BNS/BN/MBN/0677 | — |
£1,450.00
Save £363.00 (20% off)
|
|
| 02-11166 | P220/WWPPP/BNS/BN/MBN/0014 | 02-11166 | P220/WWPPP/BNS/BN/MBN/0014 | — |
£1,419.00
Save £355.00 (20% off)
|

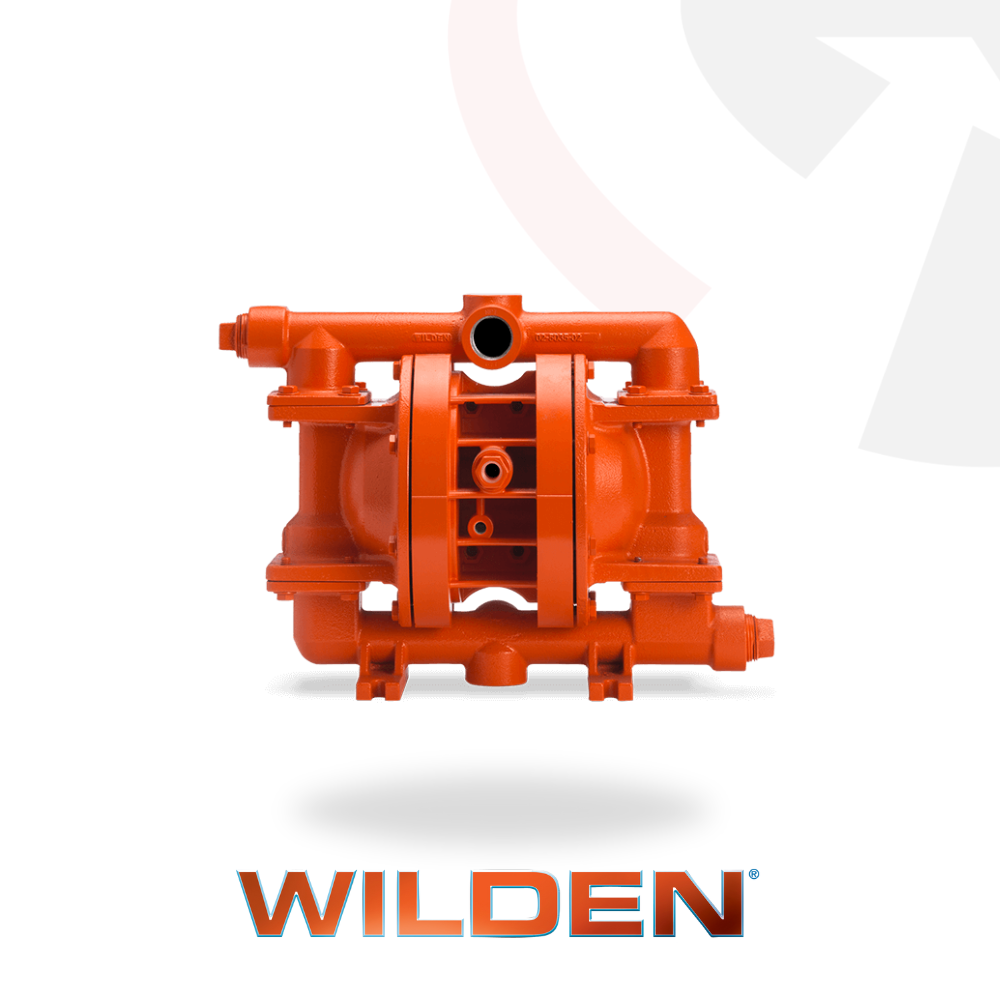

Wilden 13 mm (1/2") Accu-FloClamped Iron AODD Pump - A1
Description
The Wilden 13 mm (1/2") Accu-FloClamped Iron AODD Pump (A1) is designed for precise electronic control in applications such as batching, chemical dosing, and blending. Part of the Wilden Accu-FloSeries, this Air-Operated Double-Diaphragm (AODD) pump features a direct electrical interface that uses electrical impulses to stroke the pump, providing a variable stroke rate for exacting fluid transfer. Its robust clamped construction ensures durability, making the A1 ideal for industries requiring reliable performance in compact systems.
Applications
- Chemical dosing
- Adaptive dosing
- Batching processes
- Blending
- Systems and skids
Features
- Integrated electronic solenoid control with a direct electrical interface for precise stroke rate adjustments, perfect for batching and dosing.
- Utilises electrical impulses instead of differential pressure, allowing for a variable stroke rate tailored to your application.
- Multiple signal input voltage options: 24V DC, 12V DC, 24V AC, and 110V AC, with NEMA 5, NEMA 7, or ATEX compliance.
- Clamped construction for robust and reliable operation in demanding environments.
- High suction lift capability:
- Rubber: 6.6 m (21.6') dry, 9.7 m (31.8') wet
- PTFE: 5.7 m (18.7') dry, 9.2 m (30.1') wet
- Maximum flow rate:
- Rubber: 40.5 lpm (10.7 gpm)
- PTFE: 42 lpm (11 gpm)
- Handles solids up to 1.6 mm (1/16") for versatile fluid transfer.
- NPT/BSPT threaded connections for straightforward installation.
Technical Specifications
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 13 mm (1/2")
- Liquid Discharge: 13 mm (1/2")
- Connection Type: NPT/BSPT (Threaded)
-
Max Suction Lift:
- Rubber: 6.6 m (21.6') Dry, 9.7 m (31.8') Wet
- PTFE: 5.7 m (18.7') Dry, 9.2 m (30.1') Wet
-
Max Flow Rate:
- Rubber: 40.5 lpm (10.7 gpm)
- PTFE: 42 lpm (11 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 1.6 mm (1/16")
-
Displacement Per Stroke:
- Rubber: 0.12 L (0.031 gal)
- PTFE: 0.09 L (0.024 gal) (*1 cycle = 2 strokes)
Delivery
Order the Wilden 13 mm (1/2") Accu-FloClamped Metal AODD Pump (A1) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
