Wilden P400 Pro-Flo Series | Bolted Plastic AODD

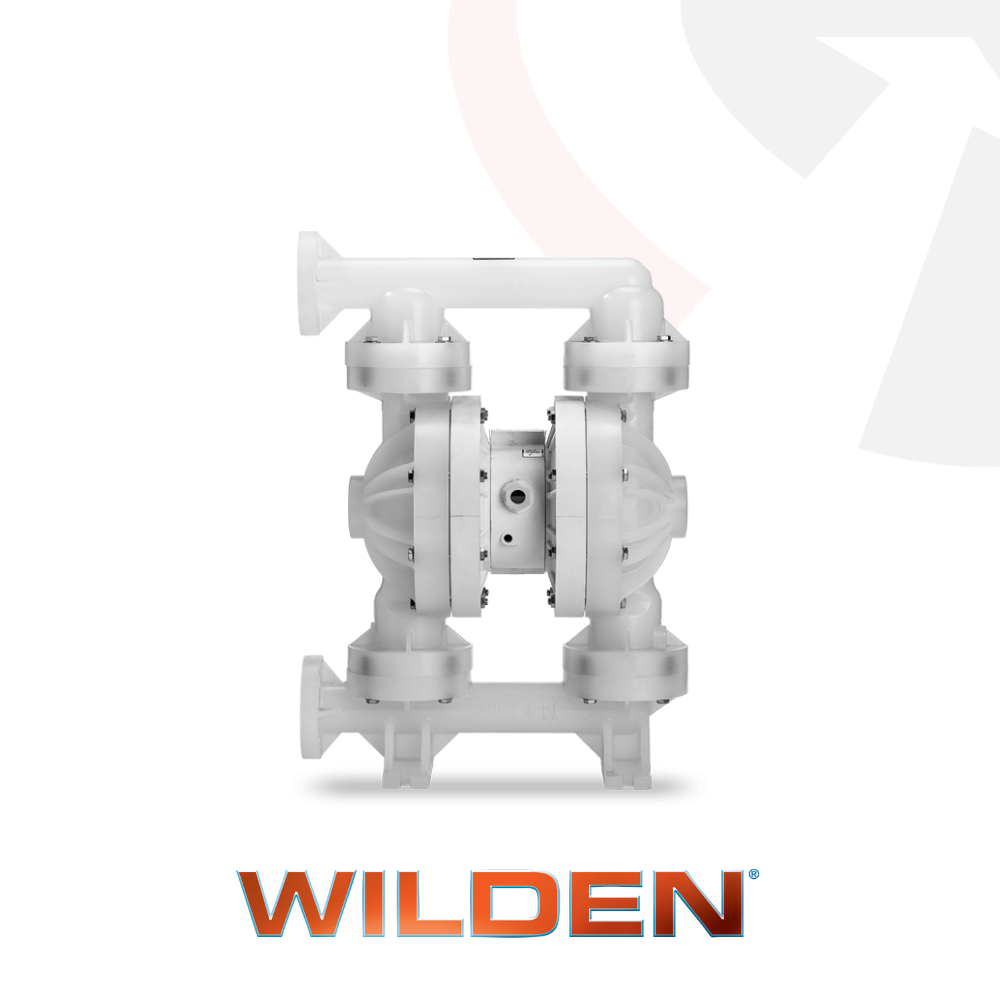

Wilden 38 mm (1-1/2") Pro-Flo® Series Bolted Plastic AODD Pump - P400

Description
The Wilden 38 mm (1-1/2") Pro-Flo® Series Bolted Plastic AODD Pump (P400) is engineered for maximum performance and efficiency, offering superior containment for chemical and industrial applications. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump features a bolted construction and a redesigned liquid path that reduces internal friction, ensuring higher flow rates and longer diaphragm life. Its plastic construction provides excellent corrosion resistance, making the P400 ideal for industries requiring reliable fluid transfer with large solids handling.

Applications

• Chemical processing
• Industrial fluid handling
• Wastewater treatment
• Food and beverage processing
• Pharmaceutical applications

Features

• Bolted plastic construction for superior containment and corrosion resistance in chemical environments.
• DIN or ANSI flanged inlet and discharge connections for secure installation.
• Redesigned liquid path to reduce internal friction, maximising flow rates and extending diaphragm life.
• High suction lift capability:
  • Rubber: 5.5 m (18.2') dry, 9.0 m (29.5') wet
  • TPE: 4.8 m (15.9') dry, 9.3 m (30.6') wet
  • Full-Stroke PTFE: 5.7 m (18.7') dry, 9.3 m (30.6') wet
  • Reduced-Stroke PTFE: 3.3 m (10.8') dry, 9.7 m (31.8') wet
• Maximum flow rate:
  • Rubber: 454 lpm (120 gpm)
  • TPE: 454 lpm (120 gpm)
  • Full-Stroke PTFE: 424 lpm (111.9 gpm)
  • Reduced-Stroke PTFE: 318 lpm (84 gpm)
• Handles solids up to 6.35 mm (1/4") for versatile fluid transfer.
• Increased on/off reliability and longest Mean Time Between Repair (MTBR) for reduced downtime.
• Simple operation and maintenance, with decades of proven performance.

Technical Specifications

• Air Inlet: 1/2" FNPT
• Liquid Inlet: 38 mm (1-1/2")
• Liquid Discharge: 38 mm (1-1/2")
• Connection Type: DIN/ANSI (Flanged)
• Max Suction Lift:
  • Rubber: 5.5 m (18.2') Dry, 9.0 m (29.5') Wet
  • TPE: 4.8 m (15.9') Dry, 9.3 m (30.6') Wet
  • Full-Stroke PTFE: 5.7 m (18.7') Dry, 9.3 m (30.6') Wet
  • Reduced-Stroke PTFE: 3.3 m (10.8') Dry, 9.7 m (31.8') Wet
• Max Flow Rate:
  • Rubber: 454 lpm (120 gpm)
  • TPE: 454 lpm (120 gpm)
  • Full-Stroke PTFE: 424 lpm (111.9 gpm)
  • Reduced-Stroke PTFE: 318 lpm (84 gpm)
• Max Pressure: 8.6 bar (125 psi)
• Max Diameter Solids: 6.35 mm (1/4")
• Displacement Per Stroke:
  • Rubber: 1.25 L (0.33 gal)
  • TPE: 1.34 L (0.35 gal)
  • Full-Stroke PTFE: 1.1 L (0.30 gal)
  • Reduced-Stroke PTFE: 0.59 L (0.155 gal) (*1 cycle = 2 strokes)

Delivery
Order the Wilden 38 mm (1-1/2") Pro-Flo® Series Bolted Plastic AODD Pump (P400) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
