Wilden

08-14321 | P8/SSSPP/TWS/TF/STF

P8 Pro-Flo Series | Clamped Stainless Steel AODD Wilden Pumps

P8 Pro-Flo Series | Clamped Stainless Steel AODD Wilden Pumps

£7,411.00
£9,264.00 £7,411.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

Pro-Flo SERIES

2" (51 mm)

Cast Iron

Delivery Time: 5-6 Weeks for non stock items

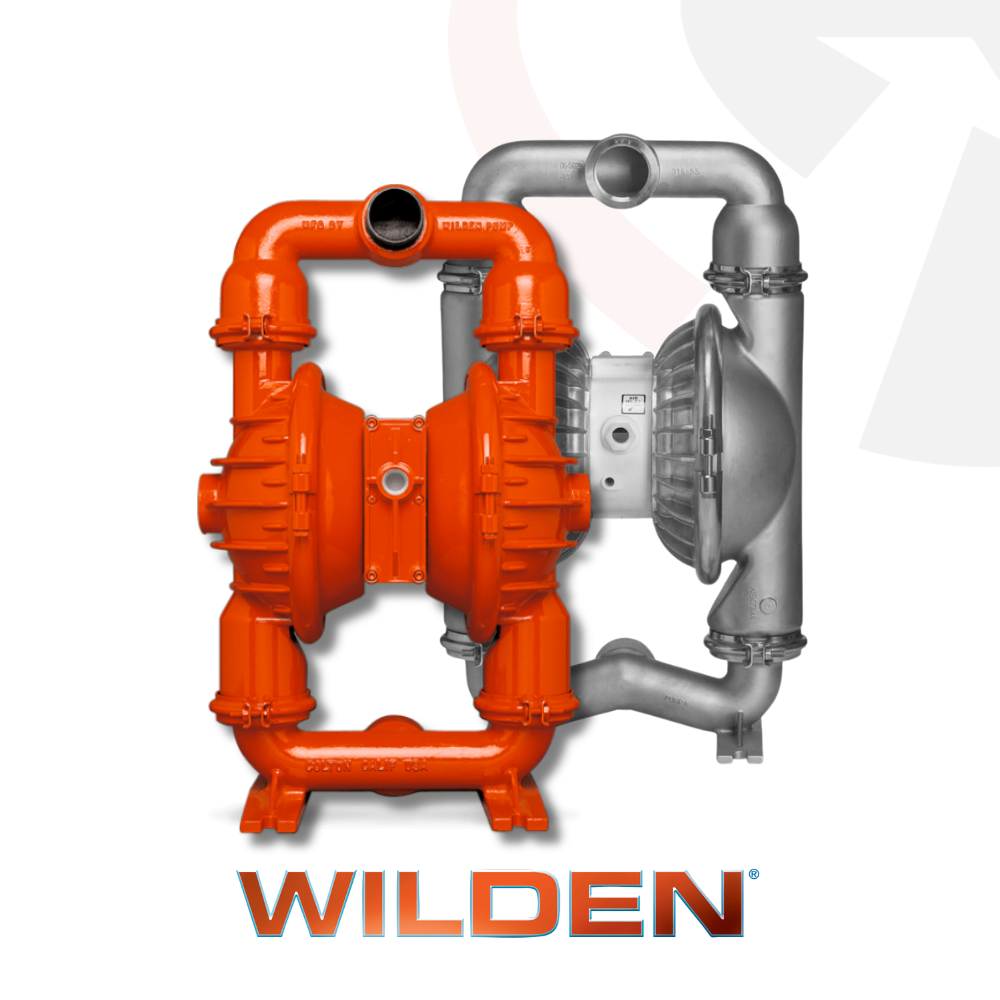

Wilden 51 mm (2") Pro-Flo® Series Clamped Metal AODD Pump - P8 (Stainless Steel)

Description
The Wilden 51 mm (2") Pro-Flo® Series Clamped Metal AODD Pump (P8) in stainless steel is a reliable and rugged solution for general industrial applications, featuring the original air-operated double-diaphragm design by Jim Wilden. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump is engineered for ease of maintenance and offers decades of proven performance. Its stainless steel construction ensures excellent corrosion resistance, making the P8 ideal for industries requiring durable fluid transfer in challenging environments.

Applications

  • General industrial fluid transfer
  • Chemical processing
  • Food and beverage processing
  • Pharmaceutical applications
  • Wastewater handling

Features

  • Clamped stainless steel construction for excellent corrosion resistance and durability in industrial environments.
  • NPT and BSPT threaded inlet and discharge connections for quick and easy installation.
  • Designed for fast maintenance, requiring only a single tool for disassembly and reassembly.
  • High suction lift capability:
    • Rubber: 6.9 m (22.7') dry, 8.6 m (28.4') wet
    • TPE: 6.7 m (22.1') dry, 8.6 m (28.4') wet
    • Full-Stroke PTFE: 6.7 m (22.1') dry, 9.0 m (29.5') wet
    • Reduced-Stroke PTFE: 4.6 m (15.0') dry, 9.5 m (31.0') wet
    • Ultra-Flex™: 4.9 m (16.0') dry, 8.8 m (29.0') wet
  • Maximum flow rate:
    • Rubber: 623 lpm (165 gpm)
    • TPE: 630 lpm (166 gpm)
    • Full-Stroke PTFE: 618 lpm (163 gpm)
    • Reduced-Stroke PTFE: 496 lpm (131 gpm)
    • Ultra-Flex™: 526 lpm (139 gpm)
  • Handles solids up to 6.4 mm (1/4") for versatile fluid transfer.
  • Low cost and simple operation, with a proven design trusted for decades.

Technical Specifications

  • Air Inlet: 1/2" FNPT
  • Liquid Inlet: 51 mm (2")
  • Liquid Discharge: 51 mm (2")
  • Connection Type: NPT/BSPT (Threaded)
  • Max Suction Lift:
    • Rubber: 6.9 m (22.7') Dry, 8.6 m (28.4') Wet
    • TPE: 6.7 m (22.1') Dry, 8.6 m (28.4') Wet
    • Full-Stroke PTFE: 6.7 m (22.1') Dry, 9.0 m (29.5') Wet
    • Reduced-Stroke PTFE: 4.6 m (15.0') Dry, 9.5 m (31.0') Wet
    • Ultra-Flex™: 4.9 m (16.0') Dry, 8.8 m (29.0') Wet
  • Max Flow Rate:
    • Rubber: 623 lpm (165 gpm)
    • TPE: 630 lpm (166 gpm)
    • Full-Stroke PTFE: 618 lpm (163 gpm)
    • Reduced-Stroke PTFE: 496 lpm (131 gpm)
    • Ultra-Flex™: 526 lpm (139 gpm)
  • Max Pressure: 8.6 bar (125 psi)
  • Max Diameter Solids: 6.4 mm (1/4")
  • Displacement Per Stroke:
    • Rubber: 2.6 L (0.70 gal)
    • TPE: 2.8 L (0.75 gal)
    • Full-Stroke PTFE: 2.6 L (0.70 gal)
    • Reduced-Stroke PTFE: 1.67 L (0.44 gal)
    • Ultra-Flex™: 2.12 L (0.56 gal) (*1 cycle = 2 strokes)

Delivery
Order the Wilden 51 mm (2") Pro-Flo® Series Clamped Metal AODD Pump (P8) in stainless steel from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
