Wilden

08-11622 | P8/PKVPP/TNU/TF/PTV/0502

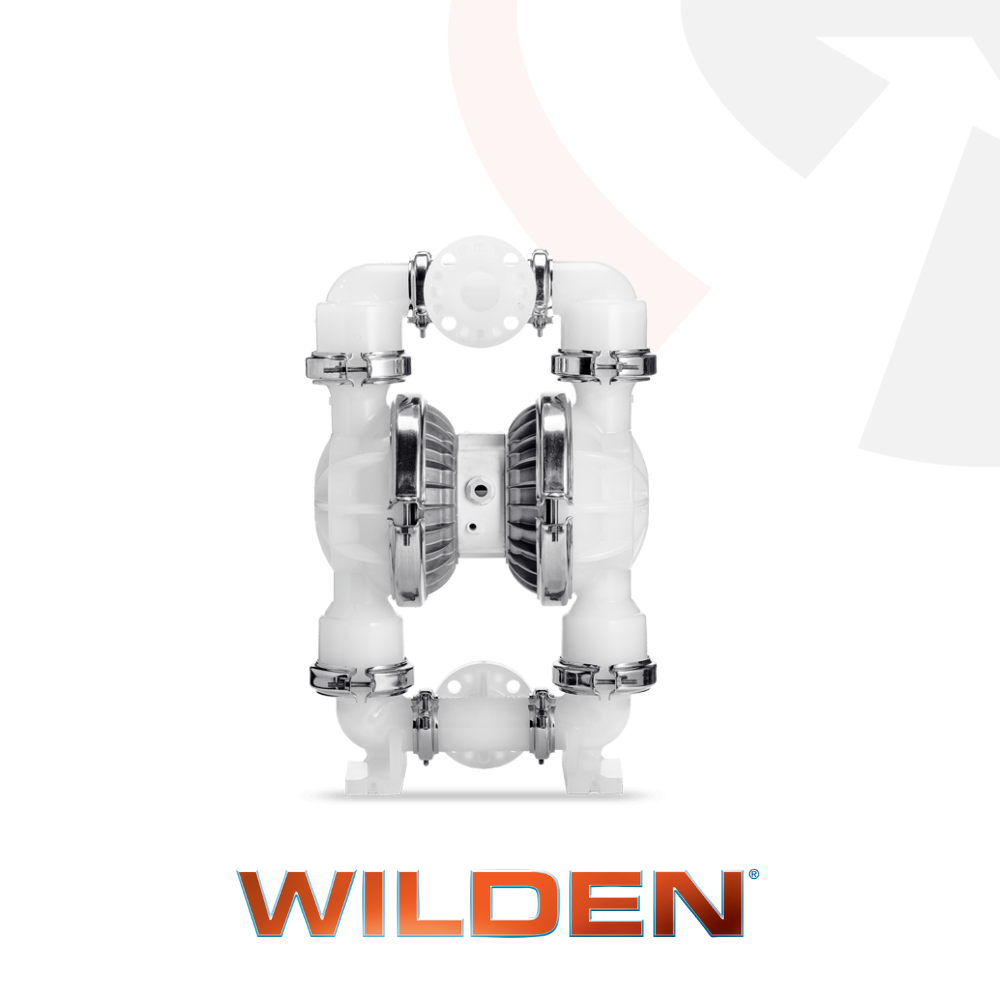

P8 Pro-Flo Series | Clamped Plastic AODD Wilden Pump

P8 Pro-Flo Series | Clamped Plastic AODD Wilden Pump

£6,135.00
£7,669.00 £6,135.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

Pro-Flo SERIES

2" (51 mm)

Polypropylene

Delivery Time: 5-6 Weeks for non stock items

Wilden 51 mm (2") Pro-Flo® Series Clamped Plastic AODD Pump - P8

Description
The Wilden 51 mm (2") Pro-Flo® Series Clamped Plastic AODD Pump (P8) is a reliable solution for chemical applications, featuring a rugged clamped design for ease of maintenance. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump offers decades of proven performance, delivering efficient fluid transfer in industrial systems. Its plastic construction ensures corrosion resistance, making the P8 ideal for industries requiring safe and simple chemical handling with solids passage.

Applications

  • Chemical transfer
  • Industrial fluid handling
  • Wastewater treatment
  • Food and beverage processing
  • Pharmaceutical applications

Features

  • Clamped plastic construction for corrosion resistance and reliable operation in chemical environments.
  • DIN and ANSI flanged inlet and discharge connections for secure and flexible installation.
  • Rotatable inlet and discharge for adaptable setup in various applications.
  • Designed for fast maintenance, requiring only a single tool for disassembly and reassembly.
  • High suction lift capability:
    • Rubber: 7.4 m (24.4') dry, 8.6 m (28.4') wet
    • TPE: 5.9 m (19.3') dry, 8.6 m (28.4') wet
    • Full-Stroke PTFE: 6.4 m (21.0') dry, 8.6 m (28.4') wet
    • Reduced-Stroke PTFE: 4.27 m (14.0') dry, 9.45 m (31.0') wet
    • Ultra-Flex™: 4.88 m (16.0') dry, 8.84 m (29.0') wet
  • Maximum flow rate:
    • Rubber: 591 lpm (156 gpm)
    • TPE: 583 lpm (154 gpm)
    • Full-Stroke PTFE: 562 lpm (148 gpm)
    • Reduced-Stroke PTFE: 481 lpm (127 gpm)
    • Ultra-Flex™: 560 lpm (148 gpm)
  • Handles solids up to 6.35 mm (1/4") for versatile fluid transfer.
  • Low cost and simple operation, with a proven design trusted for decades.

Technical Specifications

  • Air Inlet: 1/2" FNPT
  • Liquid Inlet: 51 mm (2")
  • Liquid Discharge: 51 mm (2")
  • Connection Type: DIN/ANSI (Flanged)
  • Max Suction Lift:
    • Rubber: 7.4 m (24.4') Dry, 8.6 m (28.4') Wet
    • TPE: 5.9 m (19.3') Dry, 8.6 m (28.4') Wet
    • Full-Stroke PTFE: 6.4 m (21.0') Dry, 8.6 m (28.4') Wet
    • Reduced-Stroke PTFE: 4.27 m (14.0') Dry, 9.45 m (31.0') Wet
    • Ultra-Flex™: 4.88 m (16.0') Dry, 8.84 m (29.0') Wet
  • Max Flow Rate:
    • Rubber: 591 lpm (156 gpm)
    • TPE: 583 lpm (154 gpm)
    • Full-Stroke PTFE: 562 lpm (148 gpm)
    • Reduced-Stroke PTFE: 481 lpm (127 gpm)
    • Ultra-Flex™: 560 lpm (148 gpm)
  • Max Pressure: 8.6 bar (125 psi)
  • Max Diameter Solids: 6.35 mm (1/4")
  • Displacement Per Stroke:
    • Rubber: 2.8 L (0.73 gal)
    • TPE: 2.8 L (0.73 gal)
    • Full-Stroke PTFE: 2.6 L (0.69 gal)
    • Reduced-Stroke PTFE: 0.53 L (0.47 gal)
    • Ultra-Flex™: 2.12 L (0.56 gal) (*1 cycle = 2 strokes)

Delivery
Order the Wilden 51 mm (2") Pro-Flo® Series Clamped Plastic AODD Pump (P8) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
