Wilden

SKU:08-13965 | P800/PZPPP/LEL/TF/PTV/0690

P800 Pro-Flo Series | Bolted Plastic AODD Wilden Pumps

P800 Pro-Flo Series | Bolted Plastic AODD Wilden Pumps

Regular price £5,462.00
Regular price £6,827.00 Sale price £5,462.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

Pro-Flo SERIES

2" (51 mm)

Polypropylene

Delivery Time: 5-6 Weeks for non stock items

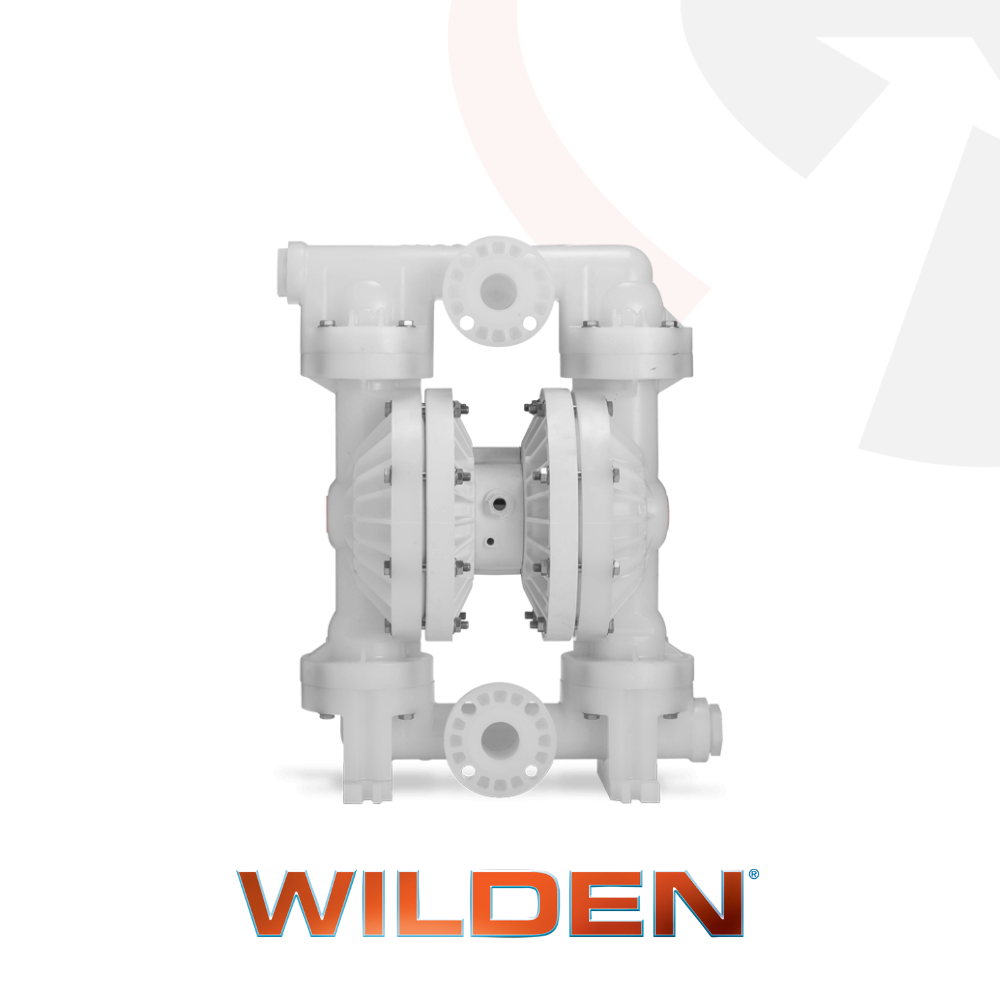

Wilden 51 mm (2") Pro-Flo® Series Bolted Plastic AODD Pump - P800

Description
The Wilden 51 mm (2") Pro-Flo® Series Bolted Plastic AODD Pump (P800) is engineered for maximum performance and efficiency, offering superior containment for chemical and industrial applications. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump features a bolted construction and a redesigned liquid path that reduces internal friction, ensuring higher flow rates and longer diaphragm life. Its plastic construction provides excellent corrosion resistance, making the P800 ideal for industries requiring reliable fluid transfer with large solids handling.

Applications

  • Chemical processing
  • Industrial fluid handling
  • Wastewater treatment
  • Food and beverage processing
  • Pharmaceutical applications

Features

  • Bolted plastic construction for superior containment and corrosion resistance in chemical environments.
  • DIN or ANSI flanged inlet and discharge connections for secure installation.
  • Redesigned liquid path to reduce internal friction, maximising flow rates and extending diaphragm life.
  • High suction lift capability:
    • Rubber: 6.23 m (20.4') dry, 8.66 m (28.4') wet
    • TPE: 5.54 m (18.16') dry, 8.66 m (28.4') wet
    • Full-Stroke PTFE: 5.9 m (19.5') dry, 9.0 m (29.5') wet
    • Reduced-Stroke PTFE: 4.15 m (13.62') dry, 8.65 m (28.4') wet
  • Maximum flow rate:
    • Rubber: 624 lpm (165 gpm)
    • TPE: 615 lpm (162 gpm)
    • Full-Stroke PTFE: 615 lpm (162 gpm)
    • Reduced-Stroke PTFE: 504 lpm (133 gpm)
  • Handles solids up to 6.4 mm (1/4") for versatile fluid transfer.
  • Increased on/off reliability and longest Mean Time Between Repair (MTBR) for reduced downtime.
  • Simple operation and maintenance, with decades of proven performance.

Technical Specifications

  • Air Inlet: 1/2" FNPT
  • Liquid Inlet: 51 mm (2")
  • Liquid Discharge: 51 mm (2")
  • Connection Type: DIN/ANSI (Flanged)
  • Max Suction Lift:
    • Rubber: 6.23 m (20.4') Dry, 8.66 m (28.4') Wet
    • TPE: 5.54 m (18.16') Dry, 8.66 m (28.4') Wet
    • Full-Stroke PTFE: 5.9 m (19.5') Dry, 9.0 m (29.5') Wet
    • Reduced-Stroke PTFE: 4.15 m (13.62') Dry, 8.65 m (28.4') Wet
  • Max Flow Rate:
    • Rubber: 624 lpm (165 gpm)
    • TPE: 615 lpm (162 gpm)
    • Full-Stroke PTFE: 615 lpm (162 gpm)
    • Reduced-Stroke PTFE: 504 lpm (133 gpm)
  • Max Pressure: 8.6 bar (125 psi)
  • Max Diameter Solids: 6.4 mm (1/4")
  • Displacement Per Stroke:
    • Rubber: 2.75 L (0.73 gal)
    • TPE: 2.78 L (0.74 gal)
    • Full-Stroke PTFE: 2.5 L (0.67 gal)
    • Reduced-Stroke PTFE: 1.73 L (0.457 gal) (*1 cycle = 2 strokes)
