| Model | Price | Add |
|---|---|---|
| VXC4 40/100 | 2302690 | £4,520.00 | |
| VXC4 50/100 | 2302700 | £4,585.00 | |
| VXC4 55/100 | 2302710 | £4,650.00 |
Performance

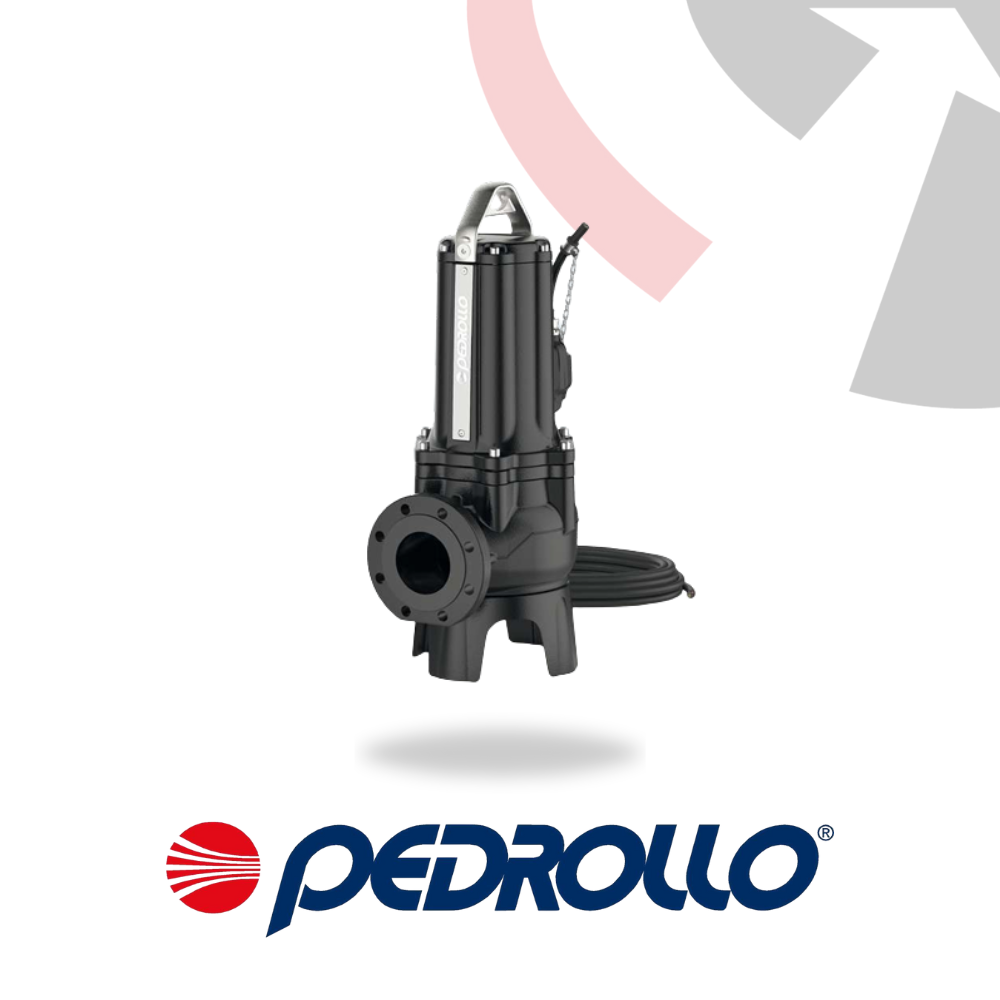

The Pedrollo VXC4 is a high performance submersible vortex pump designed to handle medium flow volumes in demanding environments. With flow rates up to 2200 l/min (132 m³/h) and heads up to 12.2 m, it delivers reliable drainage for sewage, sludge and wastewater containing suspended solids up to 100 mm.
Applications
Suitable for UK civil, industrial and public infrastructure use. The VXC4 is widely used in sewers, tunnels, excavations, canals and underground car parks.
Construction
Constructed from heavy duty cast iron with a stainless steel AISI 431 shaft, the VXC4 offers excellent abrasion resistance and long service life. The VORTEX impeller design reduces clogging risks and allows the free passage of large solids. A built in thermal protector ensures safe operation during submerged duty.
Key Specifications
- Flow rate: up to 2200 l/min (132 m³/h)
- Head: up to 12.2 m
- Solids handling: up to Ø 100 mm
- Maximum immersion depth: 10 m
- Minimum immersion for continuous service: 550 mm
- Liquid temperature: up to +40 °C
- Motor: 4 pole motor with internal thermal protection
- Ingress protection: IP68
- Pump body, motor casing and impeller: Cast iron
- Shaft: Stainless steel AISI 431
- Power cable: 10 m included
Delivery
Order the Pedrollo VXC4 from pumpsandgearboxesdirect.com for free UK mainland delivery.
