| Model | Price | Add |
|---|---|---|
| 1150050000 | PRA/E0,50M | £175.39 | |
| 1150150000 | PRA/E1,50M | £434.86 | |
| 1150200000 | PRA/E2,00M | £527.98 | |
| 1150100004 | PRA/I1,00T | £318.40 | |
| 1150150004 | PRA/I1,50T | £437.37 | |
| 1150200004 | PRA/I2,00T | £472.52 | |
| 1150050004 | PRA0,50T | £175.08 | |
| 1150080000 | PRA0,80M | £269.42 | |
| 1150080004 | PRA0,80T | £278.51 | |
| 1150020019 | PRA0.82T | £269.42 | |
| 1150100000 | PRA1,00M | £299.25 | |
| 1150050100 | PRN0,50M | £206.13 |

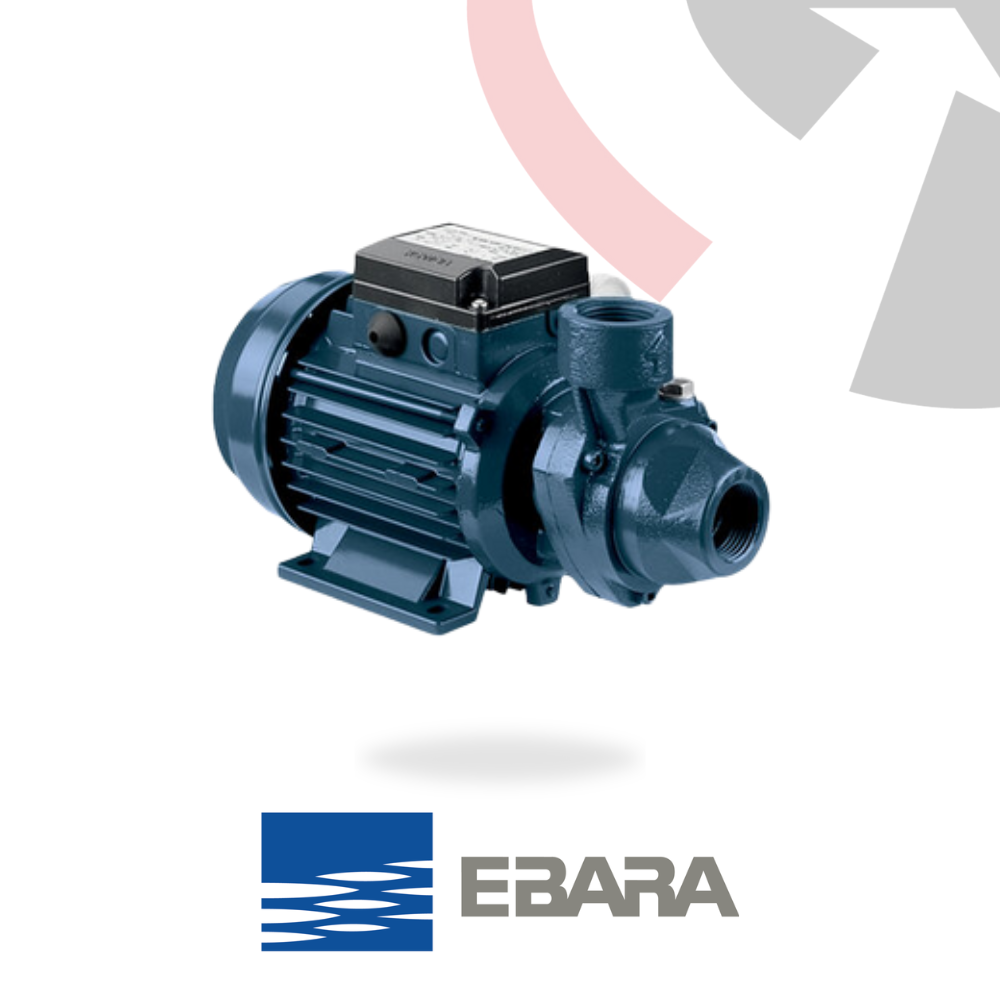

Ebara PRA - PRN Peripheral Pump - Cast Iron
Performance
The Ebara PRA - PRN silent peripheral pump delivers flow rates from 0.3 to 4.2 m³/h and total heads from 12 to 88 m. Its compact, efficient design ensures reliable water pressurisation for domestic and small-scale UK applications.
Applications
Designed for UK domestic and commercial use, the PRA - PRN is ideal for domestic water supply, boiler power supply, and autoclave units. It suits clean water handling in residential settings and light pressurisation tasks.
Construction
Featuring a cast iron pump body (nickel-plated for PRN 0.50 single-phase), the PRA - PRN is lightweight, silent, and easy to transport. It includes a brass impeller, a stainless steel or AVZ shaft, and a Carbon/Ceramic/NBR mechanical seal, with a cast iron motor support.
Key Specifications:
- Flow rate: from 0.3 to 4.2 m³/h
- Total head: from 12 to 88 m
- Max. working pressure: 6 bar PRA/PRN 0.50, 7.5 bar PRA 0.80, 12 bar for the rest of the range
- Max. temperature of the liquid: +80°C
- Poles: 2
- Insulation class: F
- Protection degree: IP44
- Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
- Pump body: Cast iron, Nickel-plated cast iron for PRN
- Impeller: Brass
- Shaft: AVZ for PRA 0.50, AISI 303 (EN 1.4305) for the rest of the range
- Mechanical seal: Carbon/Ceramic/NBR (standard)
- Motor support: Cast iron
- Silent
- Lightweight and easy to use
Delivery
Order the Ebara PRA - PRN peripheral pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
