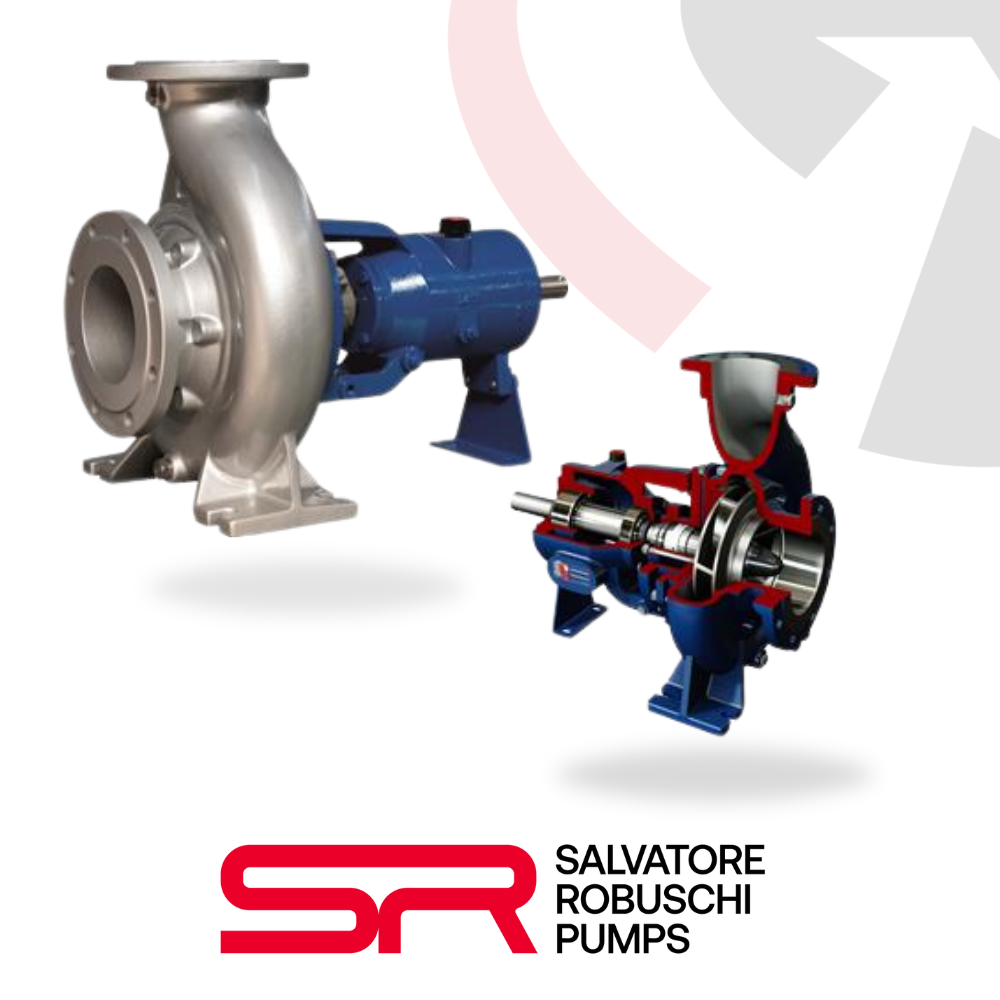

Simple and modular construction ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 125. High hydraulic efficiencies and low NPSH value (investment casting impellers). Heavy-duty shaft and bearings. Only 3 bearing brackets for the whole range. Only 1 casing cover fits every seal arrangement.
Use
RD pumps can handle aggressive organic and inorganic liquids in the chemical and petrochemical industries. They are also used in sea water desalination plants, absorption equipment in environmental engineering, power stations, steel industry, and hot water distribution.
Technical Specifications
Specification
Value
Maximum Flow Rate
500 m³/h
Maximum Head
140 mwc
Maximum Pressure
16 BAR
Maximum Temperature
220°C
Materials
Standard: AISI 316.
On request: Duplex, Superduplex, AISI 304, AISI 904, Hastelloy B and C.
Hydraulic
Closed impeller
Unions
Standard: UNI EN 1092-1 PN 16
On request: ANSI 150
Construction Versions

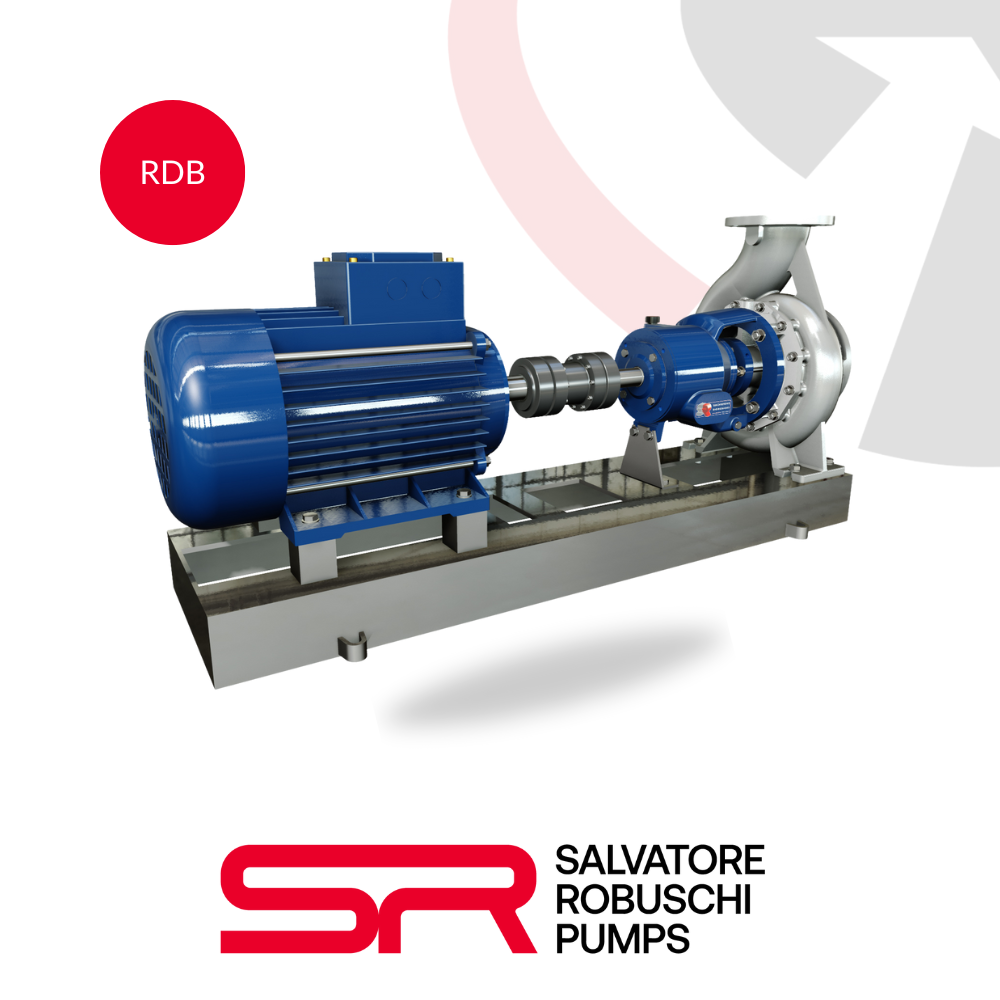

RDB: Independent frame with oil-lubricated bearings.

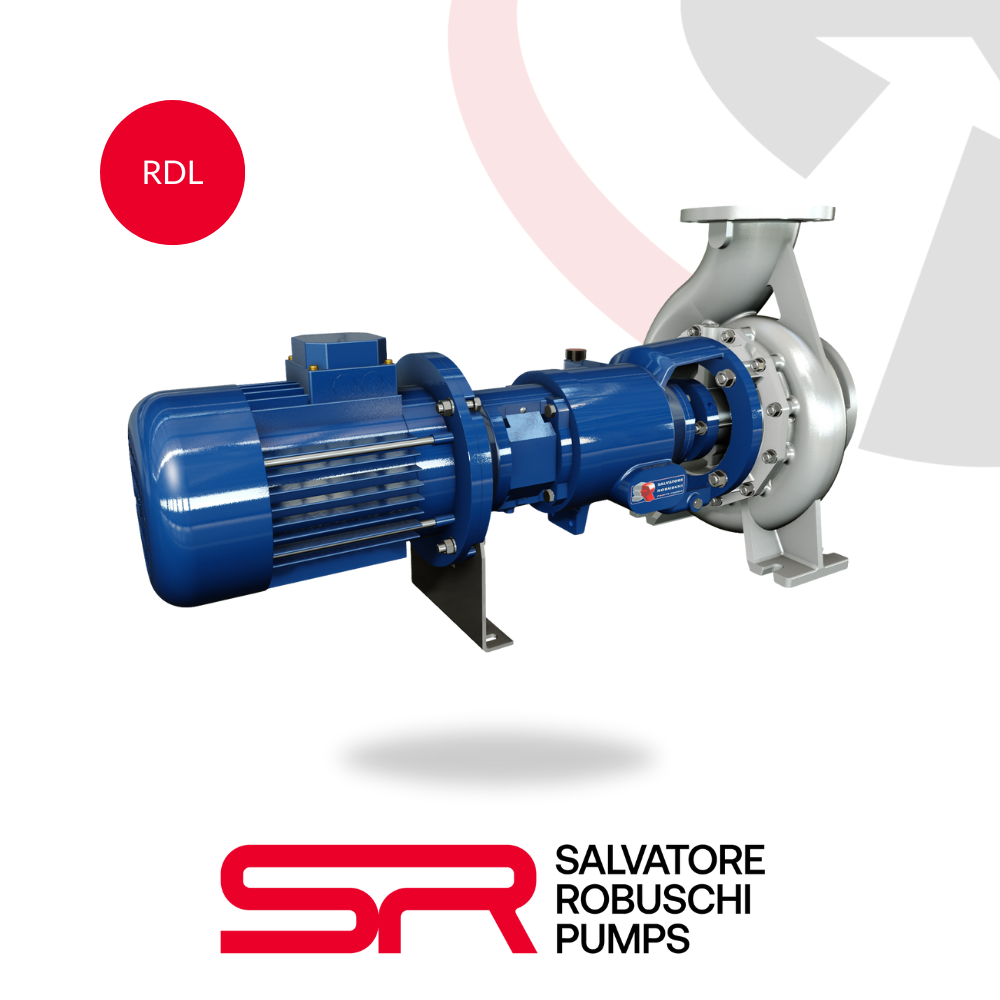

RDL: Lantern bracket with flex coupling and standard B5 motor.

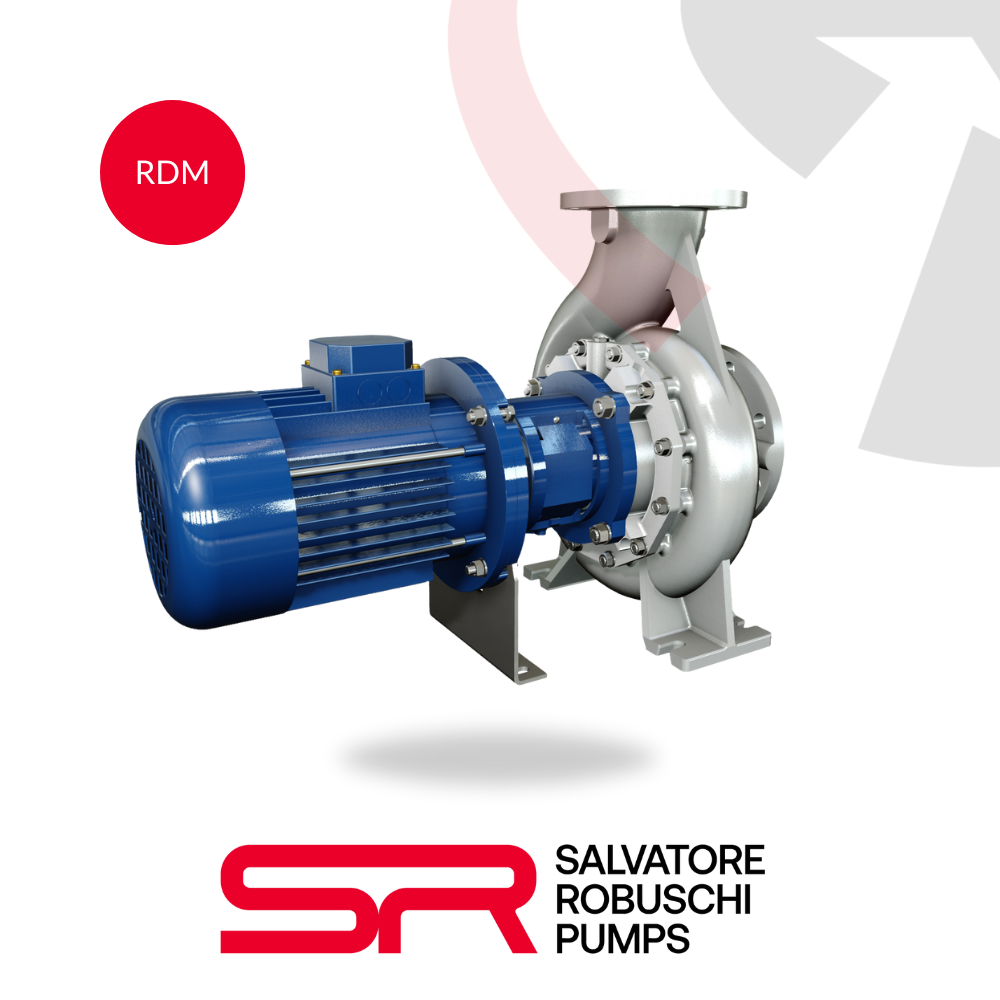

RDM: Close-Coupled with standard B5 electric motor.

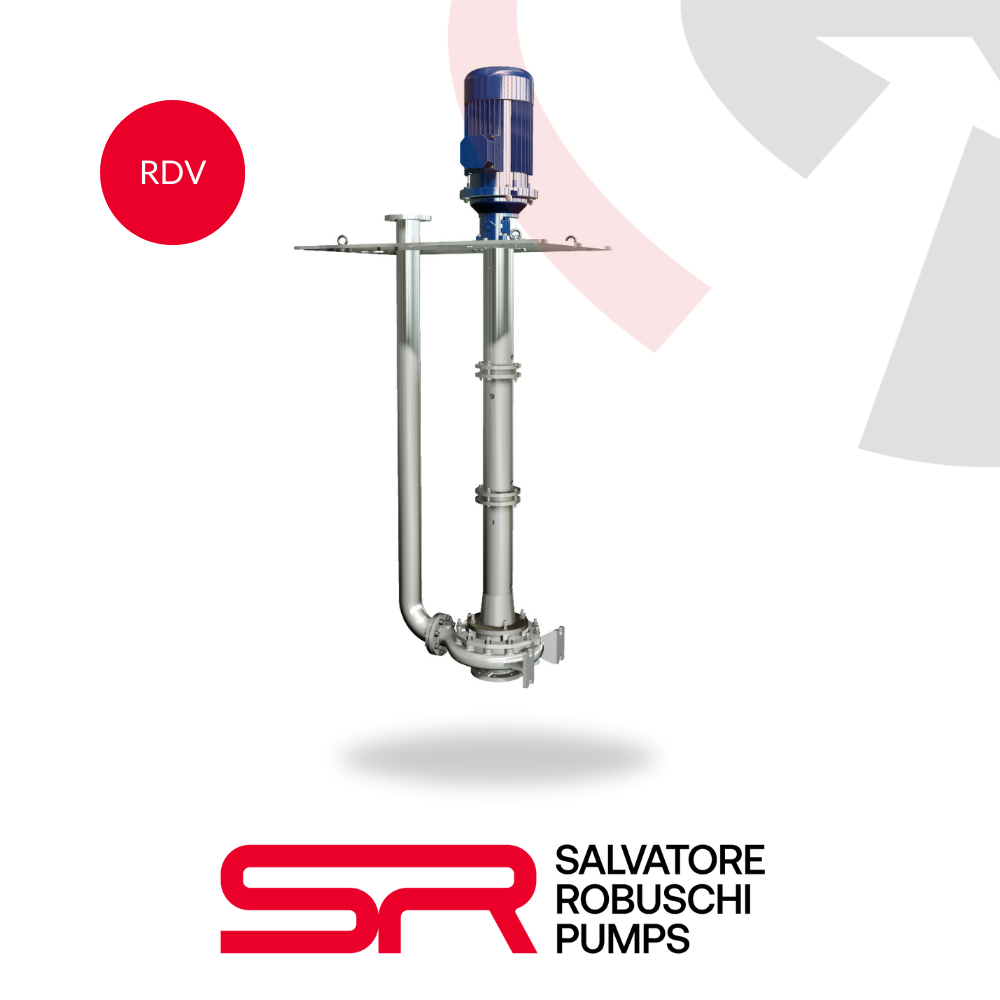

RDV: Vertical column.
Interested in this pump? Request a quote today using the contact form.
