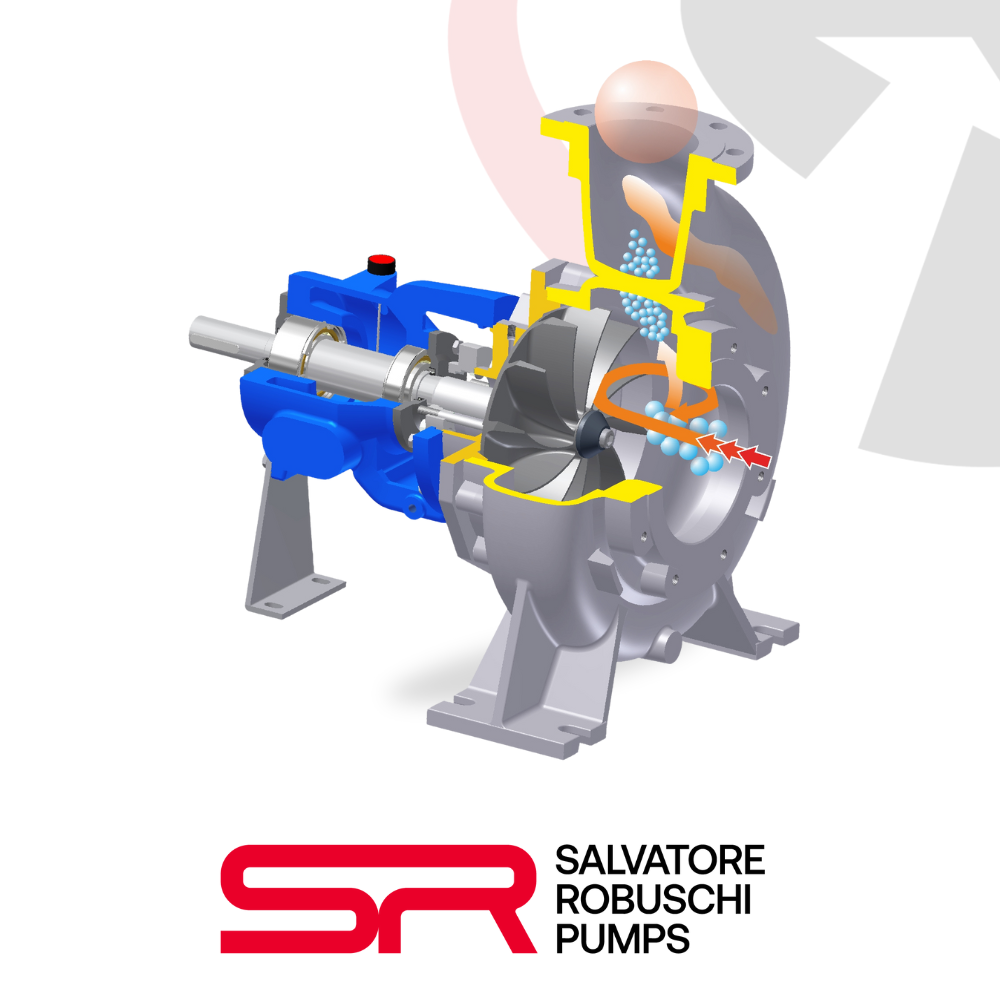

Simple and modular construction ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 125. High hydraulic efficiencies and low NPSH value (investment casting impellers). Heavy-duty shaft and bearings. Only 3 bearing brackets for the whole range. Only 1 casing cover fits every seal arrangement.
Use
RG pumps can handle slightly contaminated liquids or non-abrasive slurries in the chemical and petrochemical industries. Well suited for handling liquids with gas contents up to 15%. They are also used in refineries, general industrial service, pulp and paper industry, foodstuffs industry, sugar industry, sea water desalination plants, absorption equipment in environmental engineering, power stations, steel industry, and hot water distribution.
Technical Specifications
Specification
Value
Maximum Flow Rate
300 m³/h
Maximum Head
95 mwc
Maximum Pressure
16 BAR
Maximum Temperature
220°C
Materials
Standard: AISI 316.
On request: Duplex, Superduplex, AISI 304, AISI 904, Hastelloy B and C.
Hydraulic
Open impeller
Construction Versions

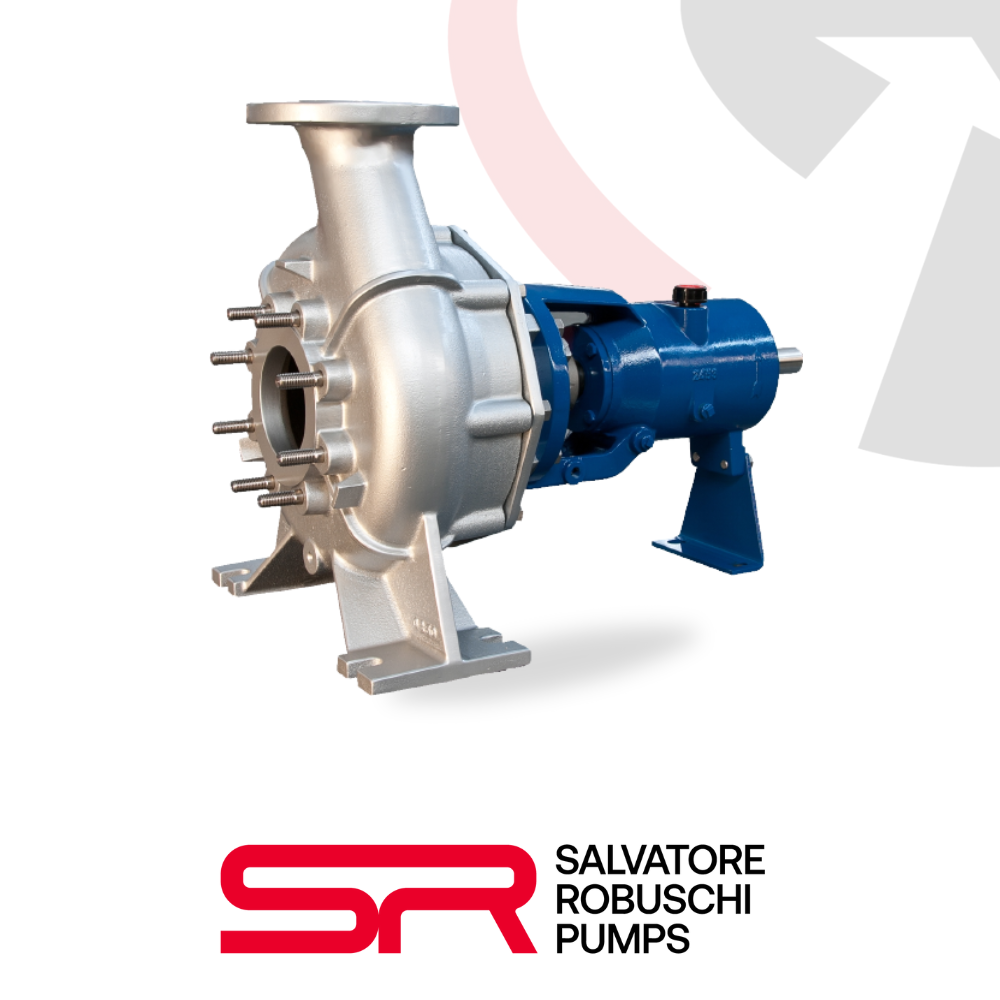

RGB: Independent frame with oil-lubricated bearings.

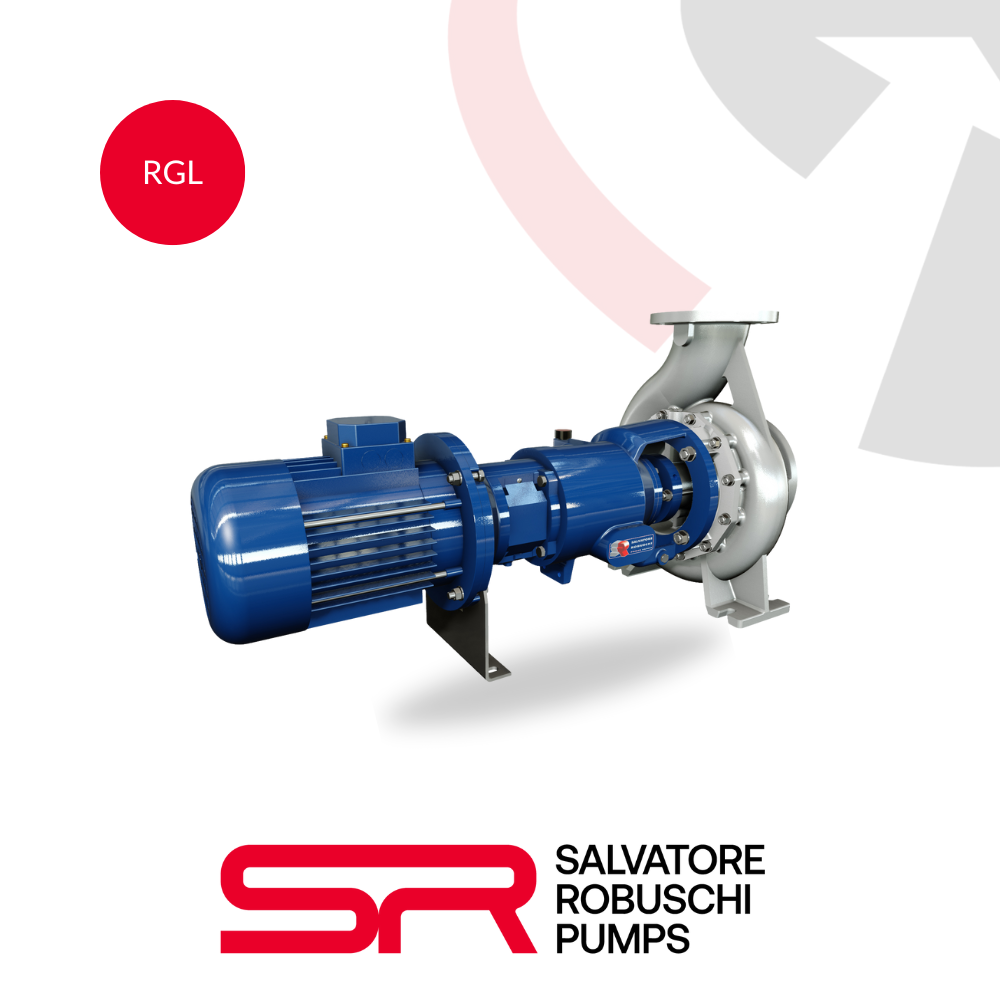

RGL: Lantern bracket with flex coupling and standard B5 motor.

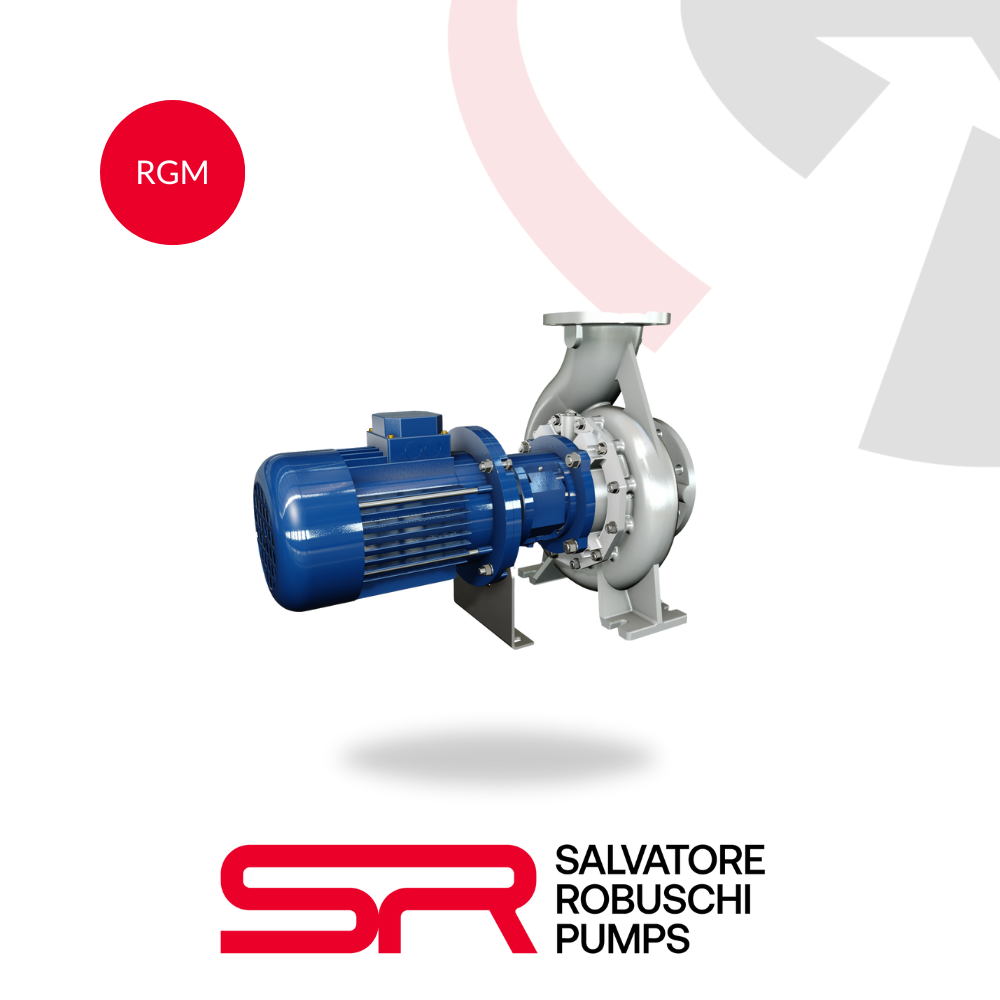

RGM: Close-Coupled with standard B5 electric motor.

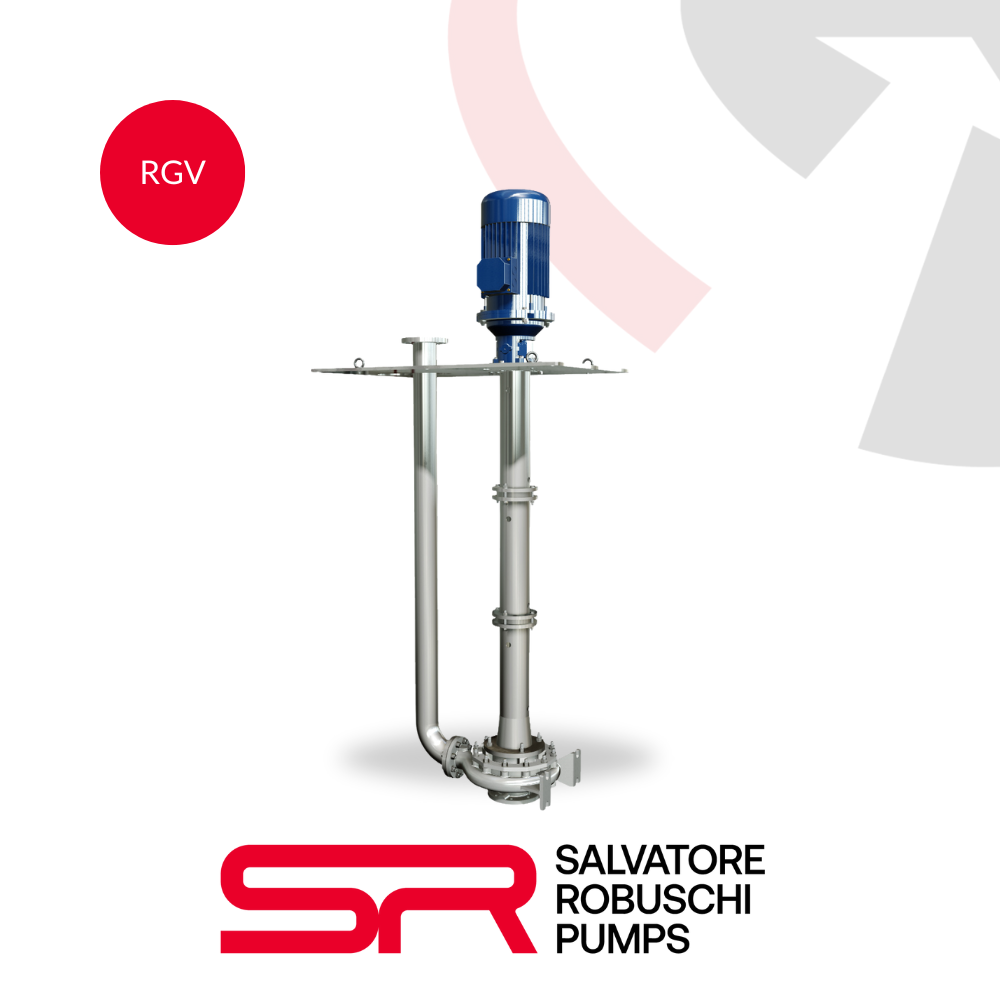

RGV: Vertical column.
Get a Quote Today
Interested in this pump? Contact our team for pricing and availability.
