Simple and modular construction with a bearing bracket according to ISO 5199 norm. Discharge sizes from DN 32 to DN 250. Large free passage clearance up to 150 mm due to the completely recessed impeller. Heavy-duty shaft and bearings. Only 4 bearing brackets for the whole range. Only 1 casing cover fits every seal arrangement.
Use
RC pumps can handle chemical and crystalline suspensions, all viscous liquids, liquids with high concentrations of fibrous suspensions, municipal and industrial wastewater, and every kind of sludge. They are also used in the textile, tannery, refineries, general industrial service, pulp and paper industry, foodstuffs industry, sugar industry, sea water desalination plants, absorption equipment in environmental engineering, power stations, and steel industry.
Technical Specifications
Specification
Value
Maximum Flow Rate
800 m³/h
Maximum Head
60 mwc
Maximum Pressure
10 BAR
Maximum Temperature
180°C
Materials
Standard: AISI 316 - GJL250 Cast Iron
On request: Duplex, Superduplex, AISI 304, AISI 904, Hastelloy.
Hydraulic

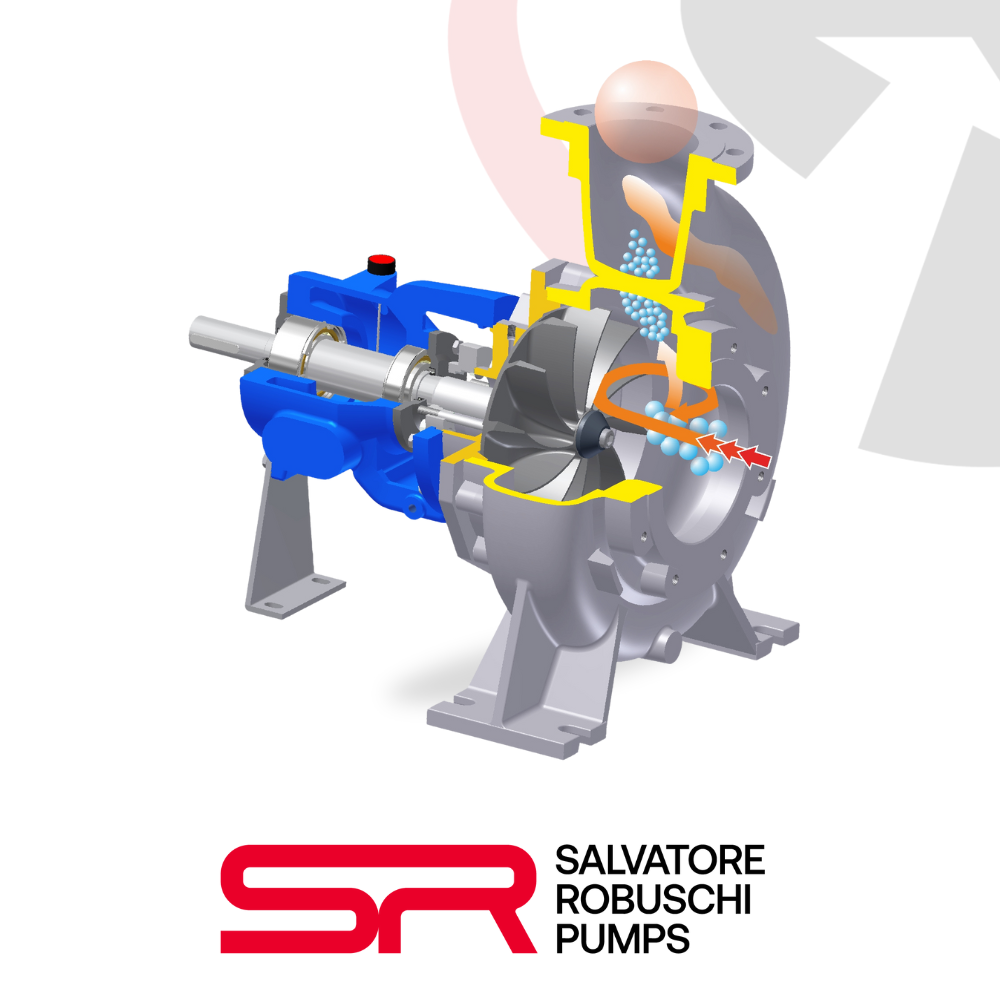

Vortex impeller
Construction Versions

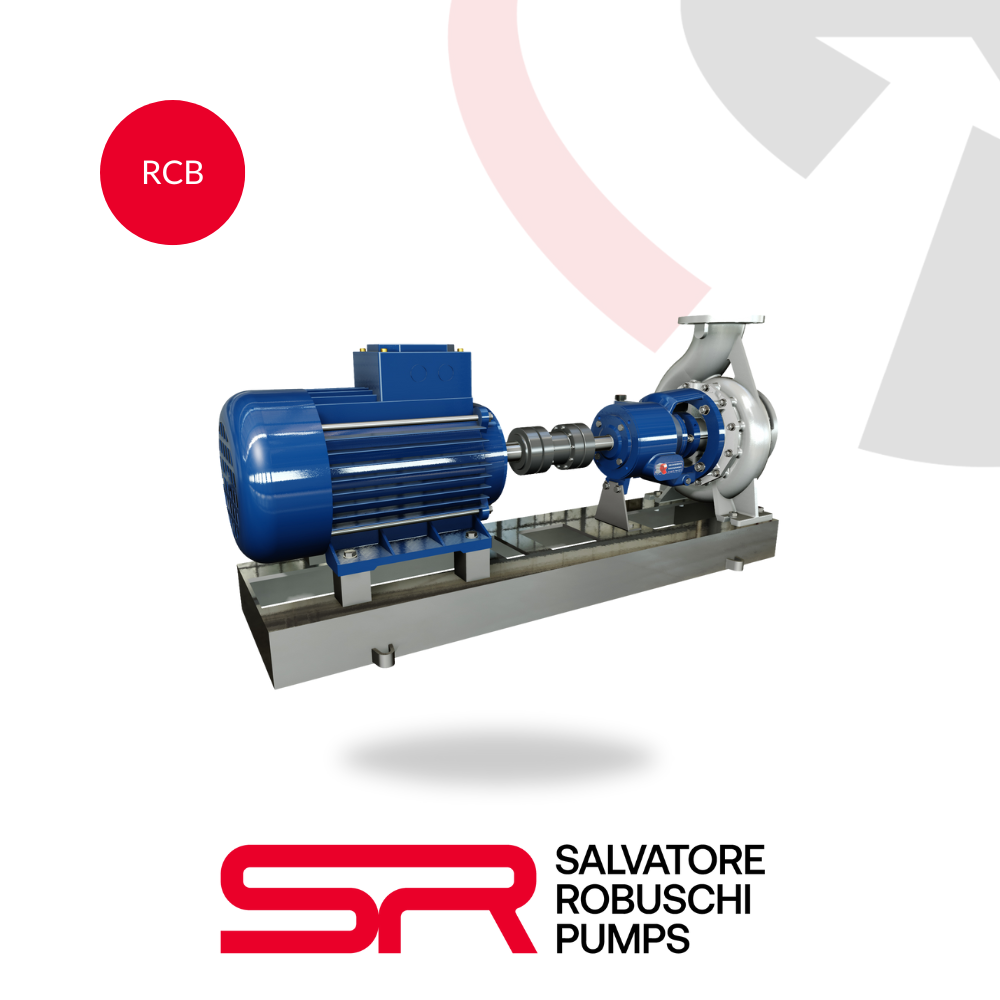

RCB: Independent frame with oil-lubricated bearings.

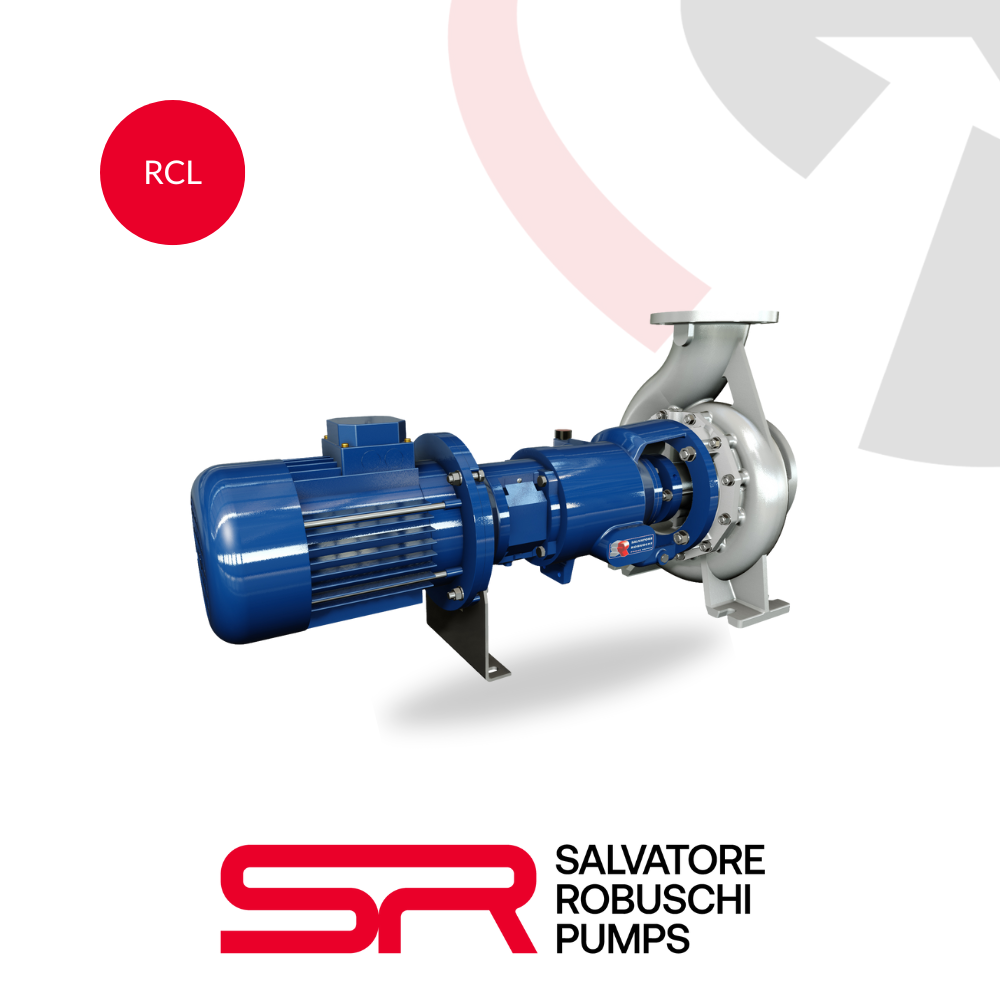

RCL: Lantern bracket with flex coupling and standard B5 motor.

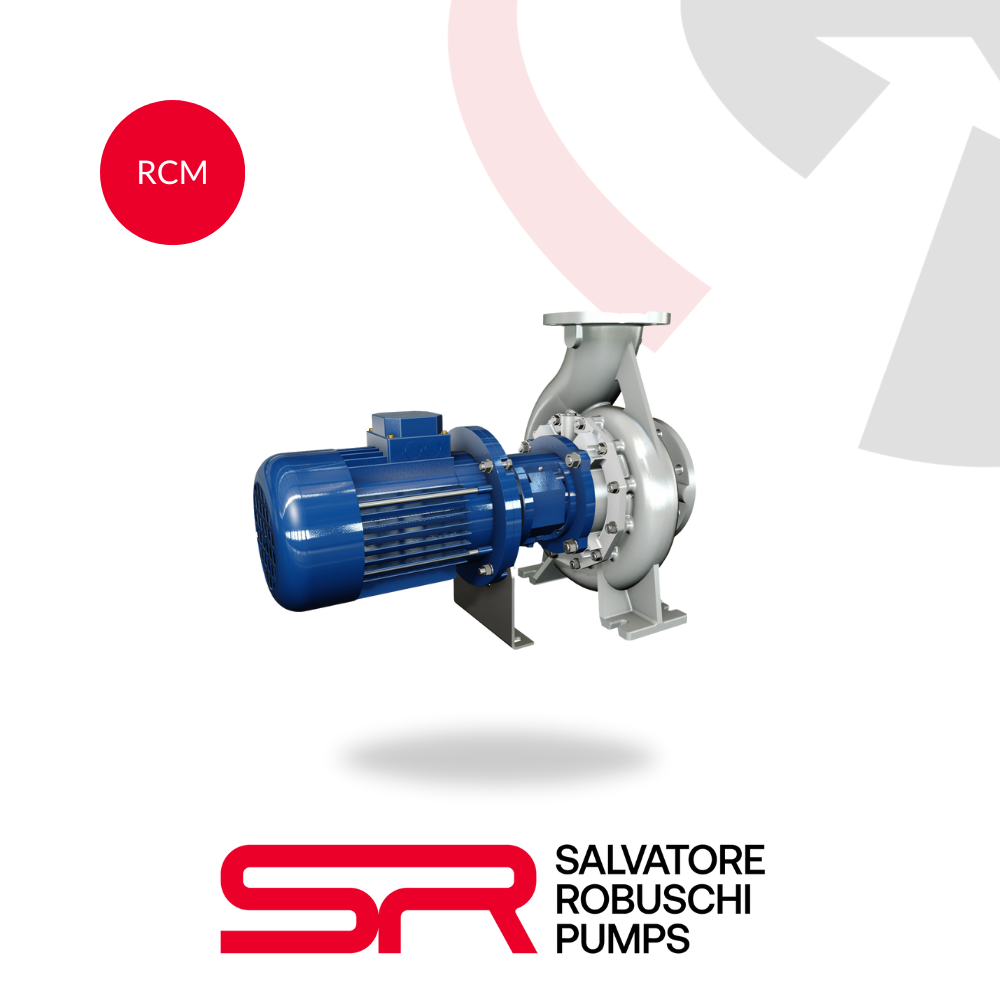

RCM: Close-Coupled with standard B5 electric motor.

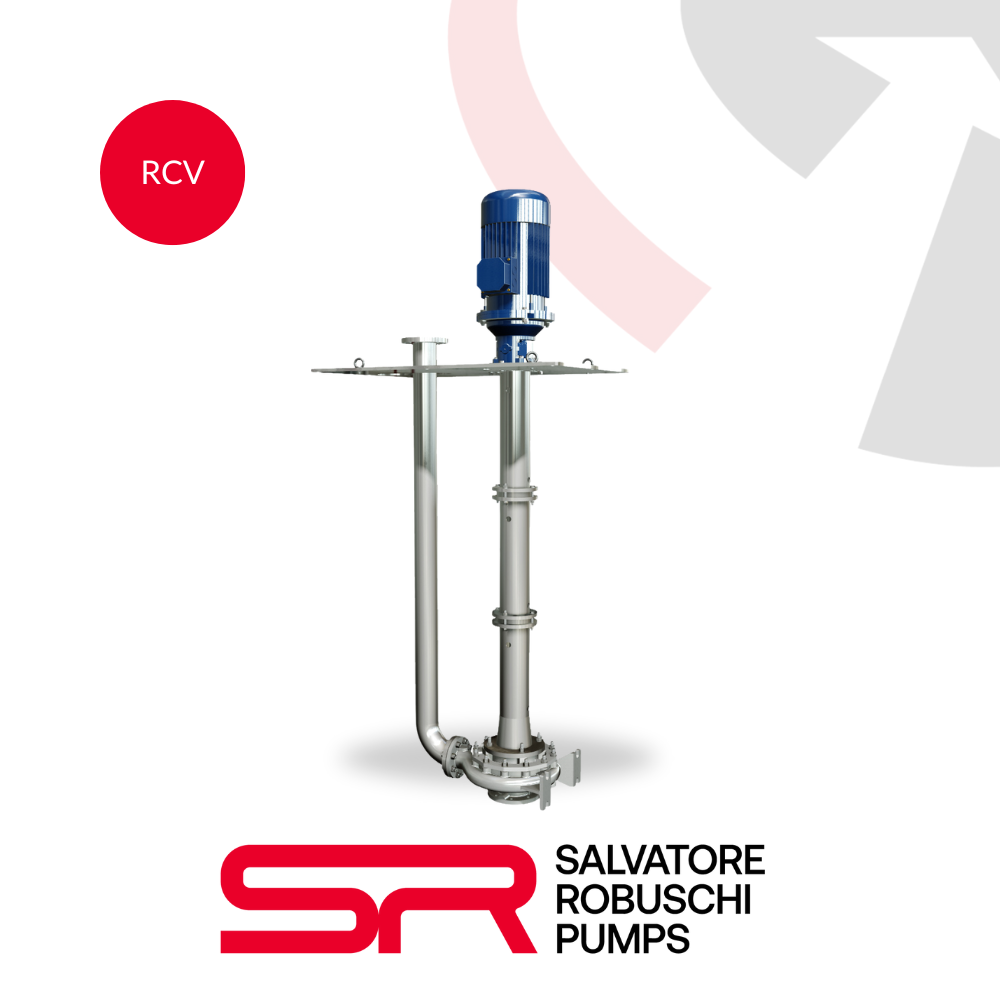

RCV: Vertical column.

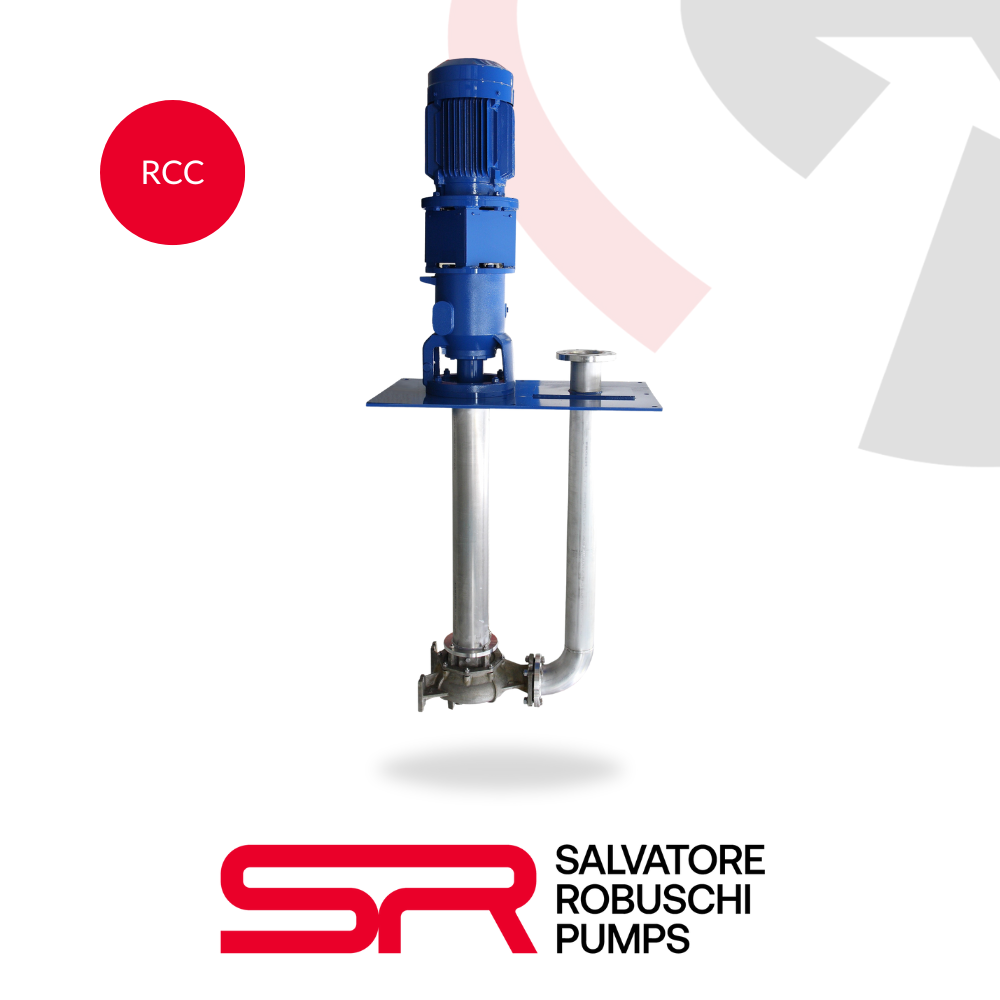

RCC: Cantilever Pump.
Get a Quote Today
Interested in this pump? Contact our team for pricing and availability.
