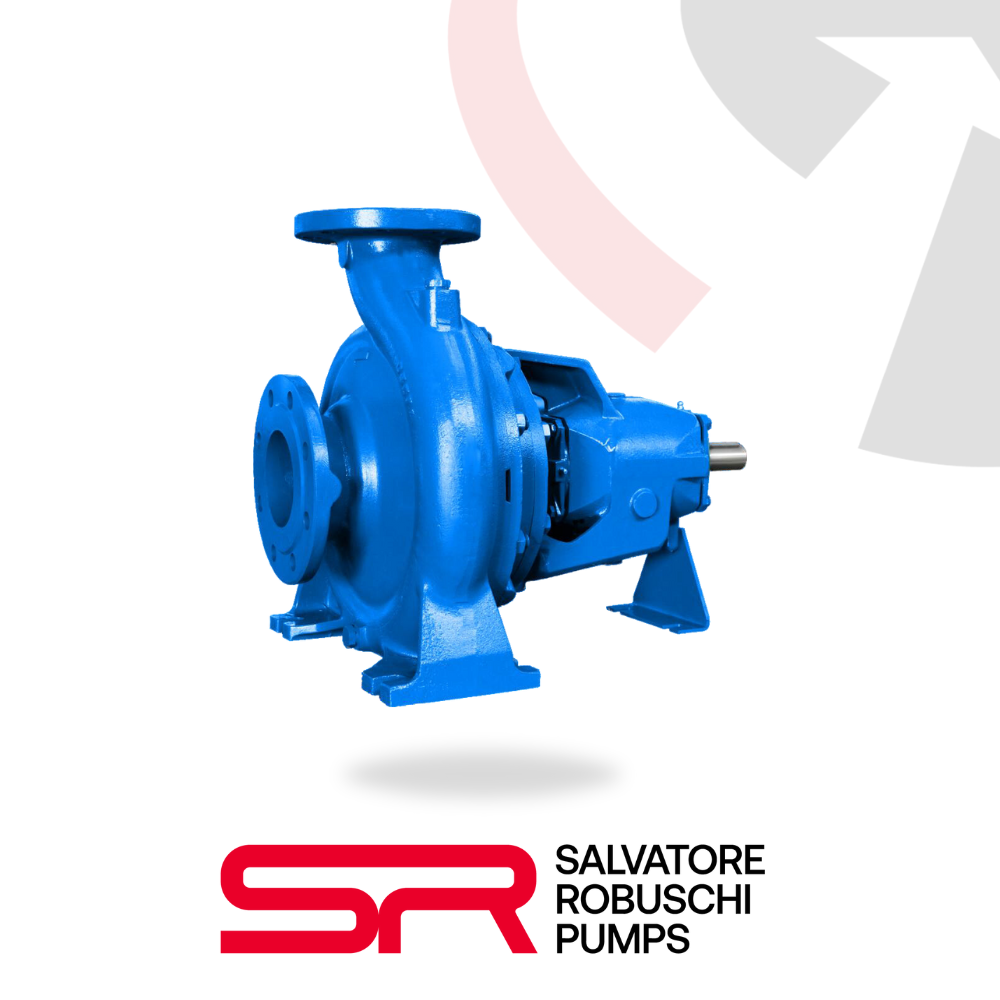

RN pumps are high-quality centrifugal pumps designed with a closed impeller that complies with the EN 733 norms. These pumps are engineered for exceptional reliability and efficiency, making them perfect for a wide range of applications. Available in discharge sizes from DN 32 to DN 150, RN pumps are built to handle clean and non-aggressive liquids, with a maximum solid content of up to 0.2%. Their versatility and durability make them ideal for various industrial applications.
Use
RN pumps are designed for clean, non-aggressive liquids that are compatible with the materials of the pump. These pumps are highly effective in non-aggressive industrial liquid handling, water supply, heating, conditioning, cooling, and circulation systems. They are commonly used in both civil and industrial applications, including fire-fighting plants and irrigation systems. When you need dependable liquid transfer, RN pumps get the job done efficiently and reliably.
Technical Specifications
Specification
Value
Maximum Flow Rate
480 m³/h
Maximum Head
90 mwc
Maximum Pressure
10 BAR
Maximum Temperature
130°C
Materials
Standard: GJL200 Cast Iron with AISI 430 or AISI 316 shaft and Cast Iron GJL200 or BRASS according to the pump size.
Hydraulic
Closed impeller
Construction Versions

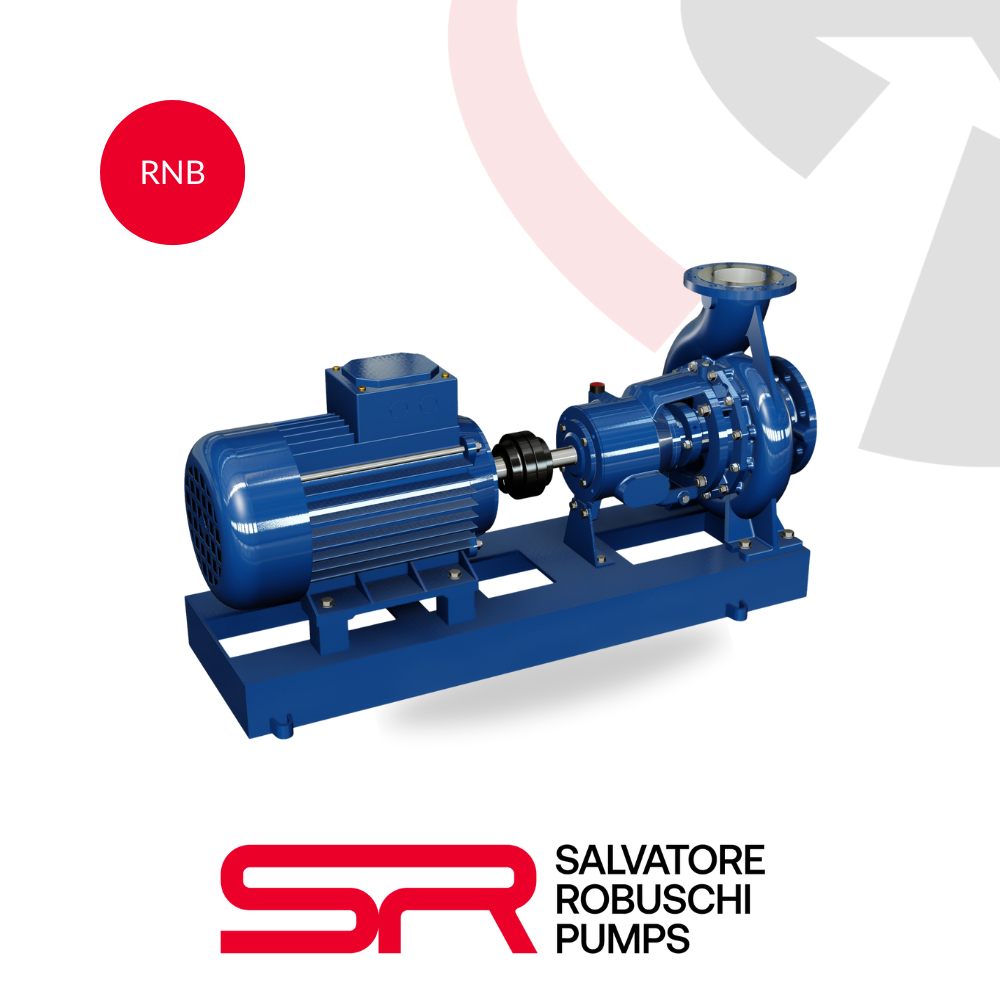

RNB: Independent frame with oil lubricated bearings.

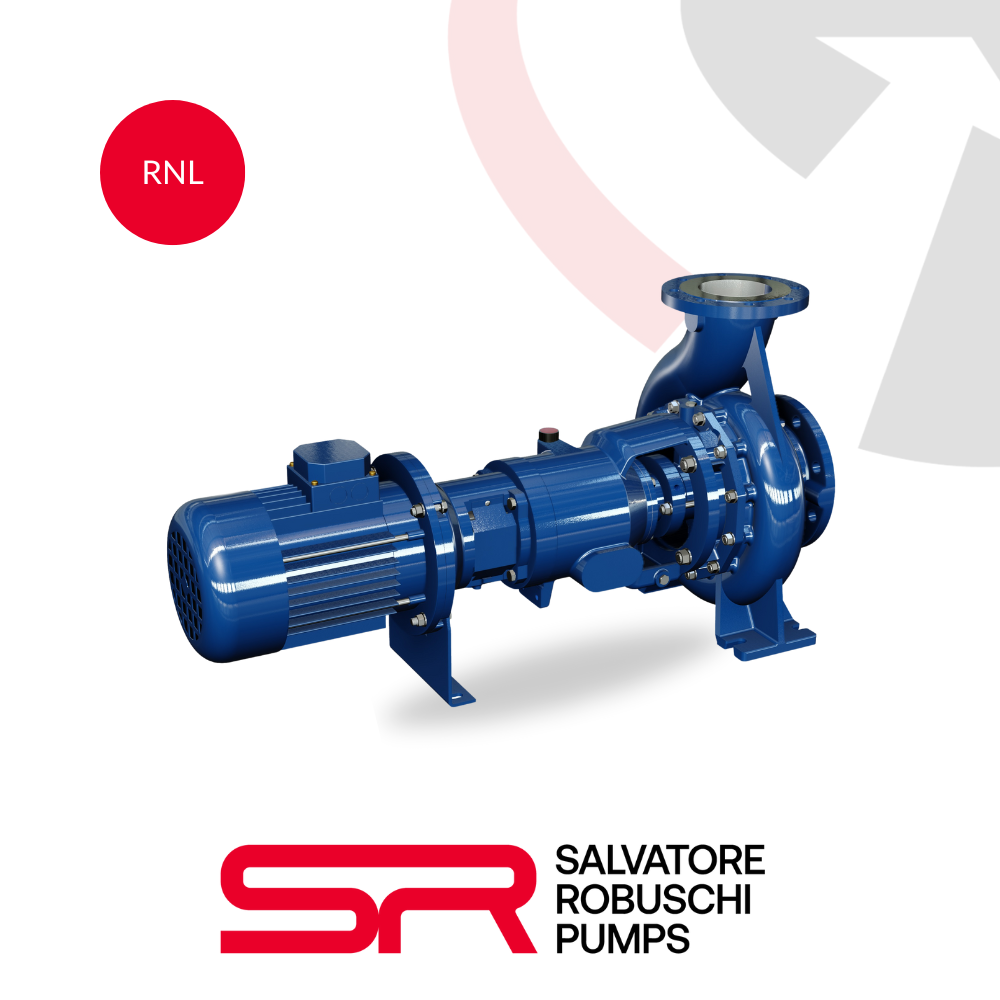

RNL: As above with lantern for coupling to flanged motors.

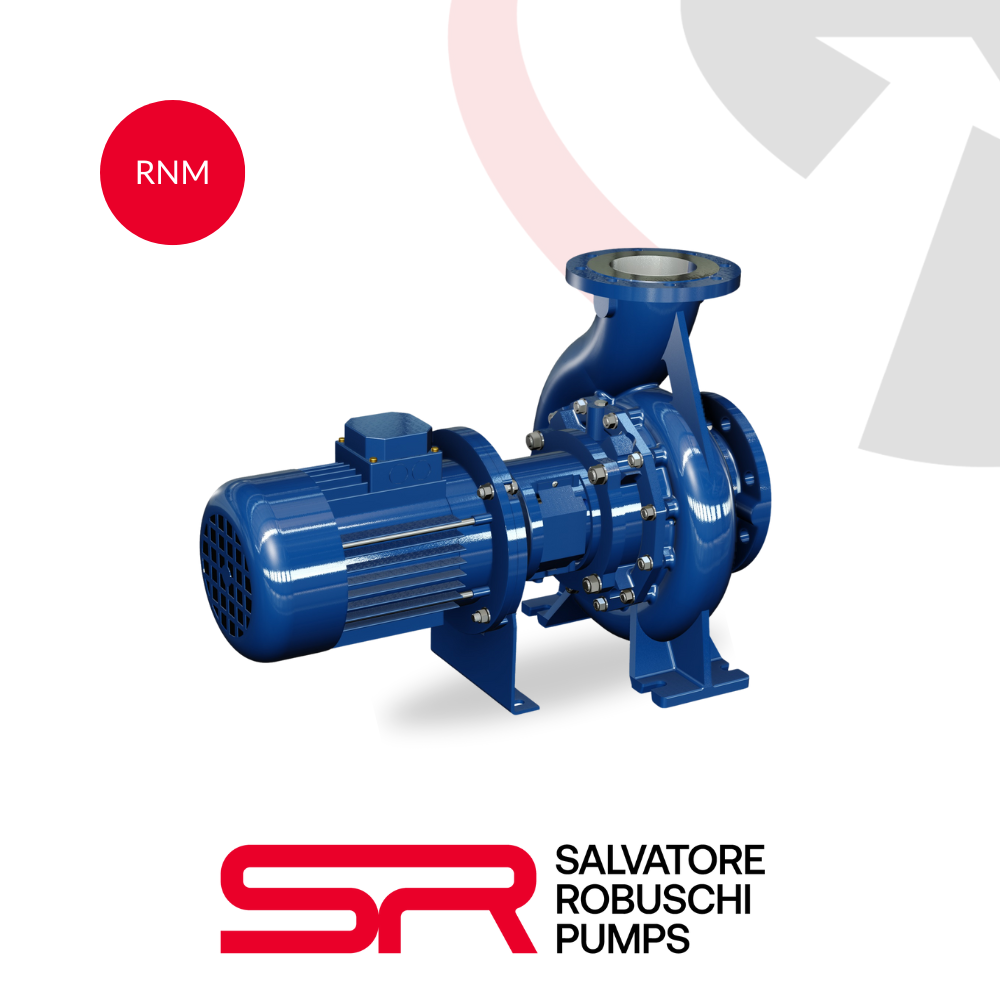

RNM: Close-Coupled with electric motor.

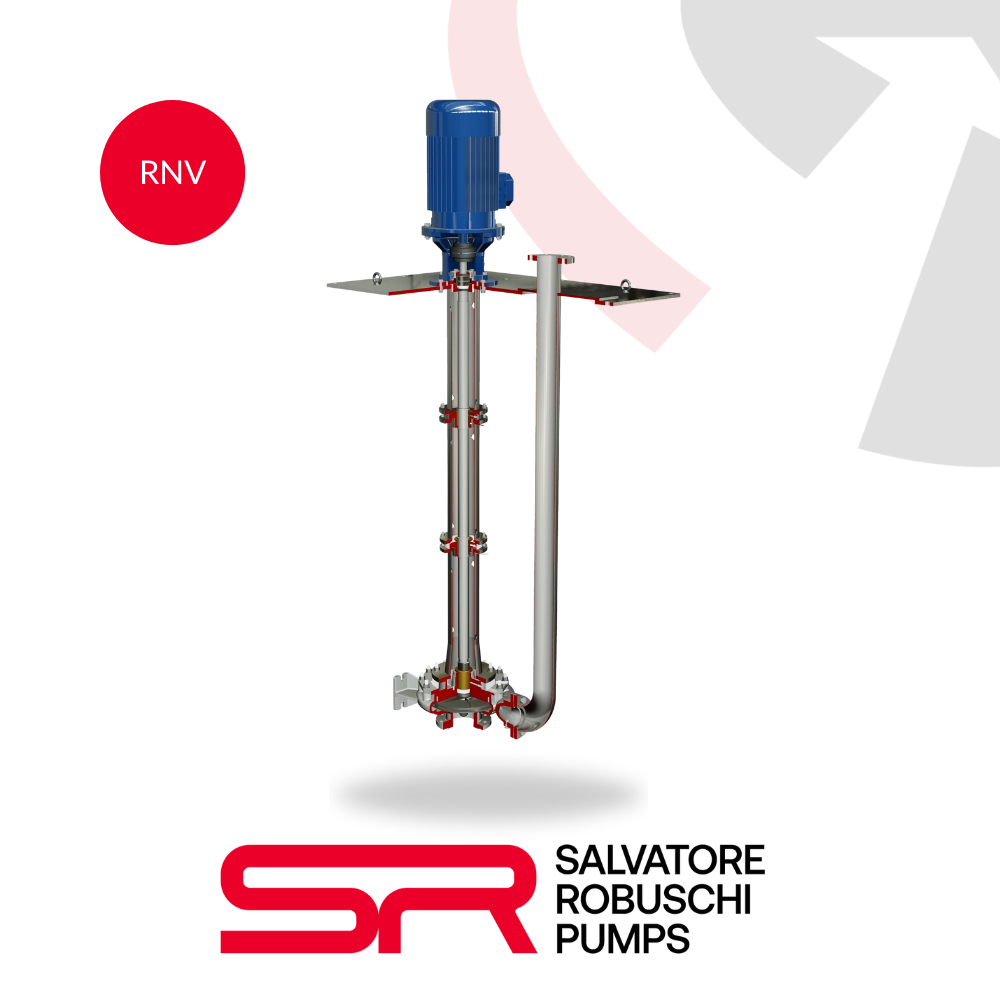

RNV: Vertical column.
