CALPEDA
SKU:T 61/A | 70020022000
T | TP Peripheral Pumps
T | TP Peripheral Pumps
Couldn't load pickup availability
Delivery Time: For delivery lead times on this product, please contact the office.

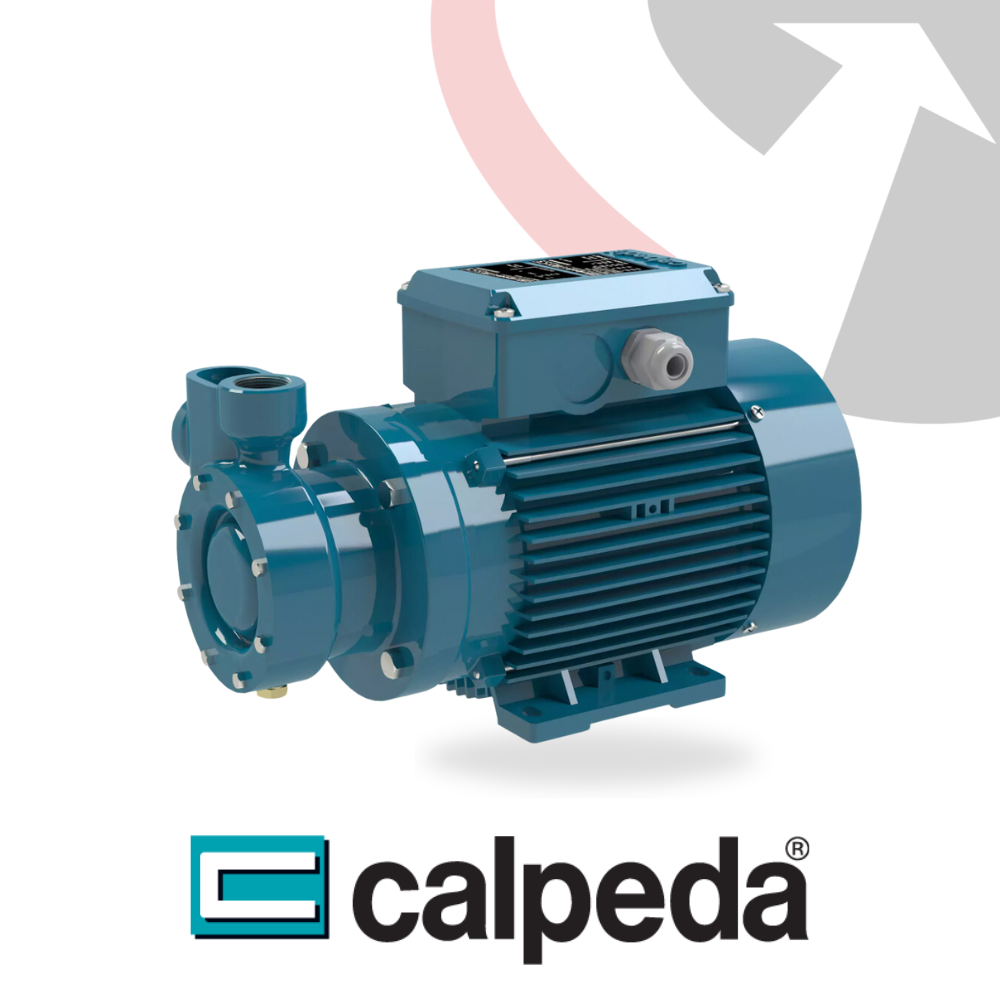

Calpeda T | TP Peripheral Pumps
Compact peripheral pumps for boosting pressure and circulation in clean liquid systems.
Flow: 0.06 to 6 m³/h
Head: 5 to 165 m
Power: 0.33 to 7.5 kW
Performance:
The Calpeda T and TP are peripheral close-coupled electropumps designed for high head, low flow applications. Compact and efficient, these pumps are ideal for installations with limited space. All models are supplied fully painted and offer reliable performance in continuous duty.
Applications:
Designed for clean, non-abrasive, non-aggressive liquids without suspended solids. Typical applications include:
-
Pressure boosting in network systems (check local regulations)
-
Cooling and air-conditioning equipment
-
Circulation and boiler feed in domestic and industrial systems
Construction:
-
T, TP: Cast iron pump casing and lantern bracket
-
BT, BTP: Bronze pump casing and connection bracket
-
Compact design ideal for OEM and integrated applications
-
Fully painted for protection and durability
Operating Conditions:
Liquid temperature: -10 °C to +90 °C
Ambient temperature: Up to 40 °C
Total suction lift: Up to 7 m
Max permissible pressure: 12.5 bar (TP series: up to 16 bar)
Continuous duty
