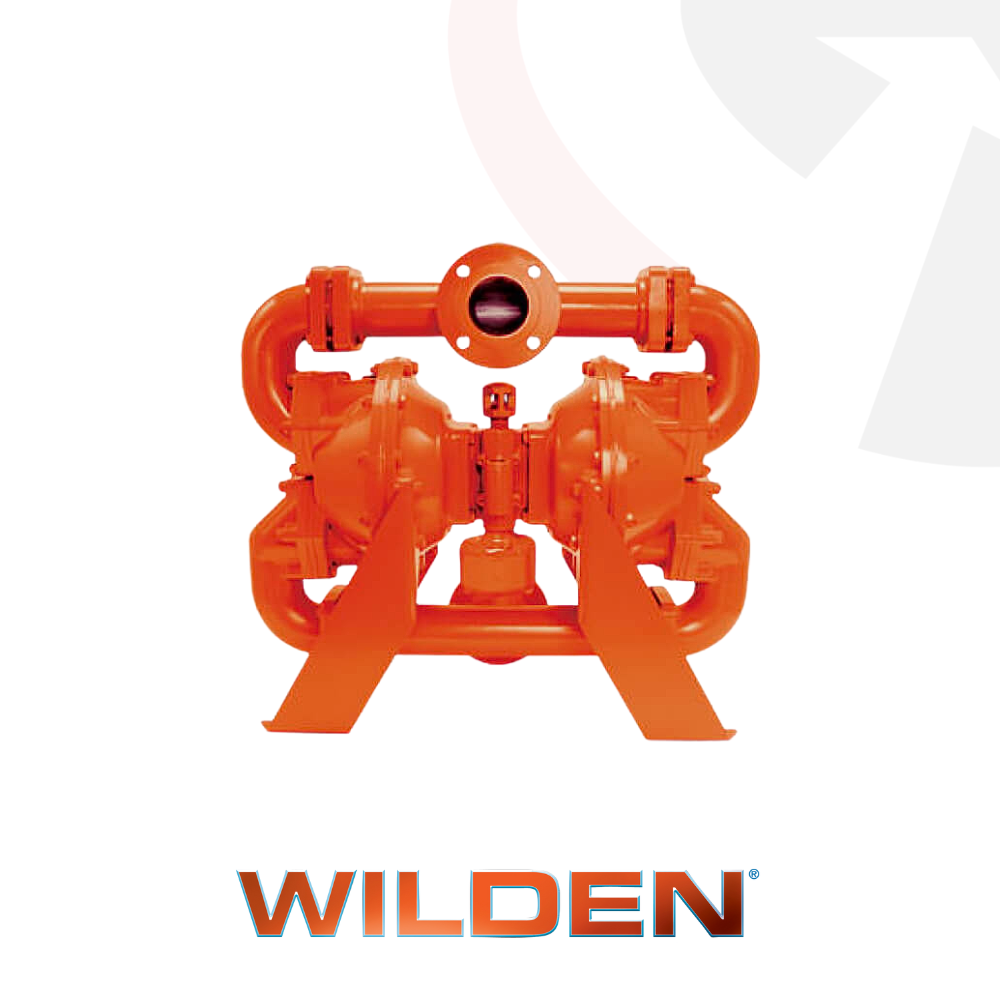

Wilden 76 mm (3") Turbo-Flo™ Brahma™ Bolted Metal AODD Pump - T1510

Description
The Wilden 76 mm (3") Turbo-Flo™ Brahma™ Bolted Metal AODD Pump (T1510) is designed for heavy-duty applications involving solid-laden slurries. This Air-Operated Double-Diaphragm (AODD) pump combines Wilden’s rugged Brahma™ Series technology with the reliable Turbo-Flo™ Air Distribution System (ADS), making it ideal for industries requiring efficient transfer of challenging fluids with large solids up to 76 mm (3"). Available in Aluminium or Iron (select Code)

Applications

• Waste transfer
• Sludge transfer
• Site dewatering
• Drilling mud transfer
• Sump pumping
• Slurry handling

Features

• Top-inlet, bottom-discharge design for efficiently transferring sediment and solid-laden fluids, minimising damage from settling solids.
• Flap valves and large internal clearance to handle solids up to 76 mm (3") without clogging.
• Turbo-Flo™ ADS for long life and easy maintenance, with no mechanical trip rods, bearings, or springs.
• Bolted construction for superior containment in demanding environments.
• High suction lift capability: 7.4 m (24.4') dry, 9.3 m (30.6') wet.
• Maximum flow rate of 977 lpm (258 gpm) at a maximum pressure of 8.6 bar (125 psi).
• Available with Chem-Fuse™ Integral Piston Diaphragm (IPD) made from durable Wil-Flex® for extended life and easier cleanability.
• Submersible design with rotatable inlet and discharge (3 positions at 90°) to meet various application needs.
• DIN/ANSI flanged connections for secure installation.

Technical Specifications

• Air Inlet: 3/4" FNPT
• Liquid Inlet: 76 mm (3")
• Liquid Discharge: 76 mm (3")
• Connection Type: DIN/ANSI (Flanged)
• Max Suction Lift: 7.4 m (24.4') Dry, 9.3 m (30.6') Wet
• Max Flow Rate: 977 lpm (258 gpm)
• Max Pressure: 8.6 bar (125 psi)
• Max Diameter Solids: 76 mm (3")
• Displacement Per Stroke: 5.56 L (1.47 gal) (*1 cycle = 2 strokes)
