| Model | Price | Add |
|---|---|---|
| 04-11492 | T4/WWPPB/NEU/NE/NE/0282 | £1,962.00 | |
| 04-10307 | T4/WWPPB/NEU/NE/NE/0050 | £1,766.00 | |
| 04-10232 | T4/WWPPB/BNU/BN/BN/0014 | £1,666.00 | |
| 04-10692 | T4/WSMAB/TNU/TF/MTF | £2,842.00 | |
| 04-10242 | T4/WMPPB/WFS/WF/WF | £1,584.00 | |
| 04-12668 | T4/WMPPB/PUS/PU/STF | £1,924.00 | |
| 04-10224 | T4/WMPPB/PUS/NE/NE | £1,566.00 | |
| 04-10218 | T4/WMPPB/NES/NE/NE | £1,564.00 | |
| 04-10214 | T4/WMPPB/EPS/EP/EP | £1,640.00 | |
| 04-10824 | T4/WMPPB/BNS/VT/BN | £1,833.00 | |
| 04-10210 | T4/WMPPB/BNS/BN/BN | £1,617.00 | |
| 04-10287 | T4/WMMAB/WFS/WF/WF | £1,587.00 | |
| 04-10207 | T4/WMMAB/NES/NE/NE/0014 | £1,566.00 | |
| 04-10463 | T4/WMMAB/NES/NE/NE | £1,566.00 | |
| 04-10714 | T4/WMMAB/BNS/BN/BN/0014 | £1,618.00 | |
| 04-10206 | T4/WMMAB/BNS/BN/BN | £1,618.00 |

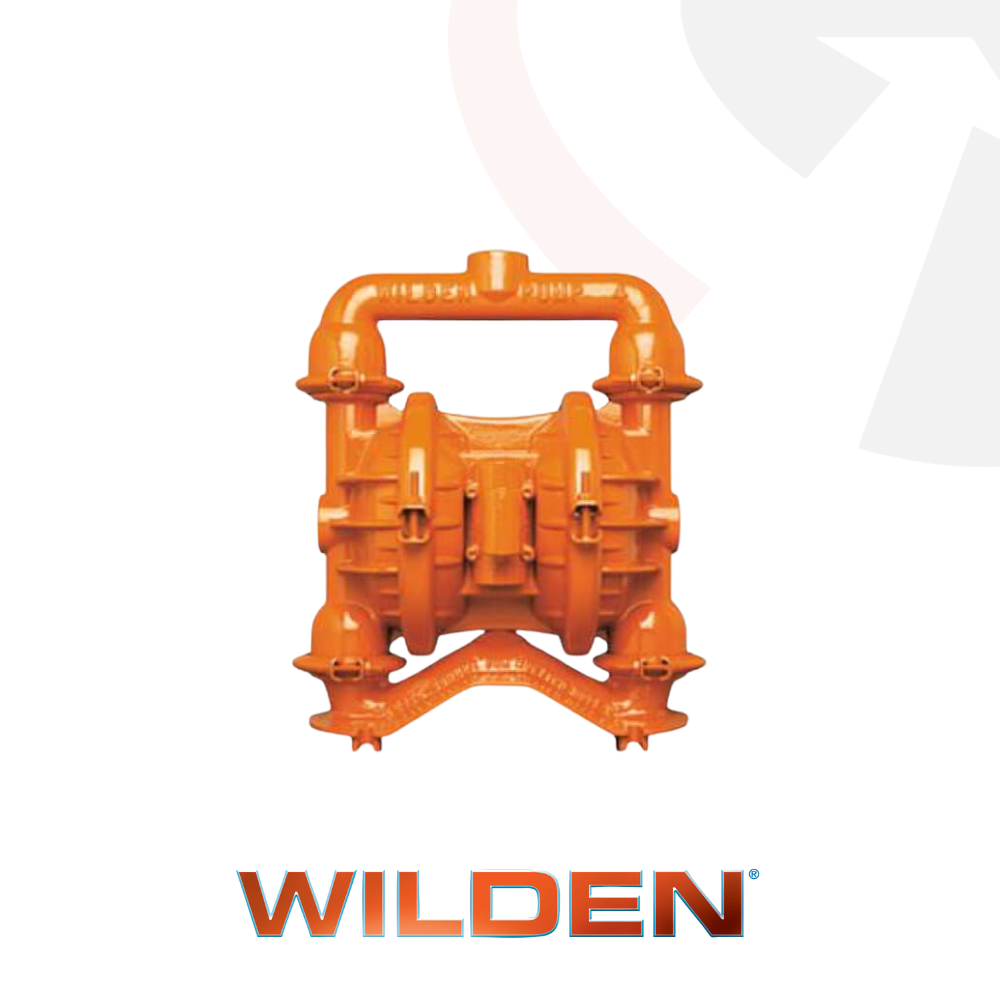

Wilden T4 Turbo-Flo Clamped Metal AODD Pump - Cast Iron
Performance
The Wilden T4 Turbo-Flo clamped metal AODD pump in cast iron offers robust performance, with flow rates up to 307 l/min (18.4 m³/h) and maximum pressures up to 8.6 bar. Its Turbo-Flo air distribution system ensures efficient, high-volume fluid transfer for demanding applications.
Applications
Built for UK industrial utility tasks, the Wilden T4 in cast iron is ideal for transferring water, slurries, and abrasive liquids. Its well-suited for dewatering, bilge pumping, and general-purpose fluid handling in tough environments.
Construction
Featuring a rugged cast iron wetted path, the Wilden T4 provides exceptional durability and wear resistance. Its clamped metal design allows for straightforward maintenance, while the Turbo-Flo system delivers reliable operation with minimal downtime.
Key Specifications:
- Flow rate: Up to 307 l/min (18.4 m³/h)
- Max pressure: 8.6 bar
- Suction lift: Up to 6.7 m (dry), 9.5 m (wet)
- Max temperature: Up to 176.7 °C (material dependent)
- Port size: 38 mm (1-1/2") BSPT/NPT
- Solids handling: Up to 4.8 mm
Delivery
Order the Wilden T4 Turbo-Flo clamped metal AODD pump in cast iron from pumpsandgearboxesdirect.com and benefit from free UK mainland delivery.
